HP Xw9300 - Workstation - 1 GB RAM Reference manual
HP xw9300 Workstation Storage Options
Mini White Paper
Introduction......................................................................................................................................... 2
Key Product Features............................................................................................................................ 2
RAID .................................................................................................................................................. 3
Cabling.............................................................................................................................................. 3
Summary ............................................................................................................................................ 3
Additional Resources............................................................................................................................ 3
Introduction
The HP xw9300 Workstation offers flexible storage options and supports integrated SATA RAID and
integrated U320 SCSI RAID.
Key Product Features
Figure 1. HP xw8200 Workstation Components
(4) Tool-less 1.0”
3.5” Drive Bays
(1) Tool-required 1.0”
3.5” bay (3 screws)
The xw9300 supports (4) tool-less and (1) tool-required internal 1” HDD slots. The xw9300 can
support up to 2.0TB of SATA storage. The onboard SCSI controllers support up to 5 disks allowing up
to 1.5TB of SCSI storage.
•The current HDD choices are shown below:
SATA 7200 SATA 10K SCSI 10K (U320) SCSI 15K (U320)
1st/2nd
Drive
3rd/4th
Drive
1st/2nd
Drive
3rd/4th
Drive
1st/2nd/3rd
Drive
4th/5th
Drive
1st/2nd/3rd
Drive
4th/5th
Drive
80 GB 80 GB 74 GB 74 GB 73 GB 146 GB 36 GB 146 GB
250 GB 250 GB 146 GB 300 GB 73 GB
500 GB 500 GB 300 GB 146 GB
The xw9300 supports many combinations of SATA and SCSI drives for both factory integrated and
After Market Optional (AMO) storage. The supported choices are shown in the flowchart, starting
with the selection of SATA or SCSI for the first drive. Note that if the first drive selected is a SCSI
drive, all subsequent drives must be SCSI drives.
There are no restrictions on the number of drives in the xw9300 with factory-ordered configurations.
However, when configuring the system with dual high end graphics cards not supplied by HP (which
can draw up to 150W each) there may be restrictions on the number of disk drives, amount of
memory, or number of CPUs that can be supported. Please contact the xw9300 Product Marketing
Manager for more details.
2

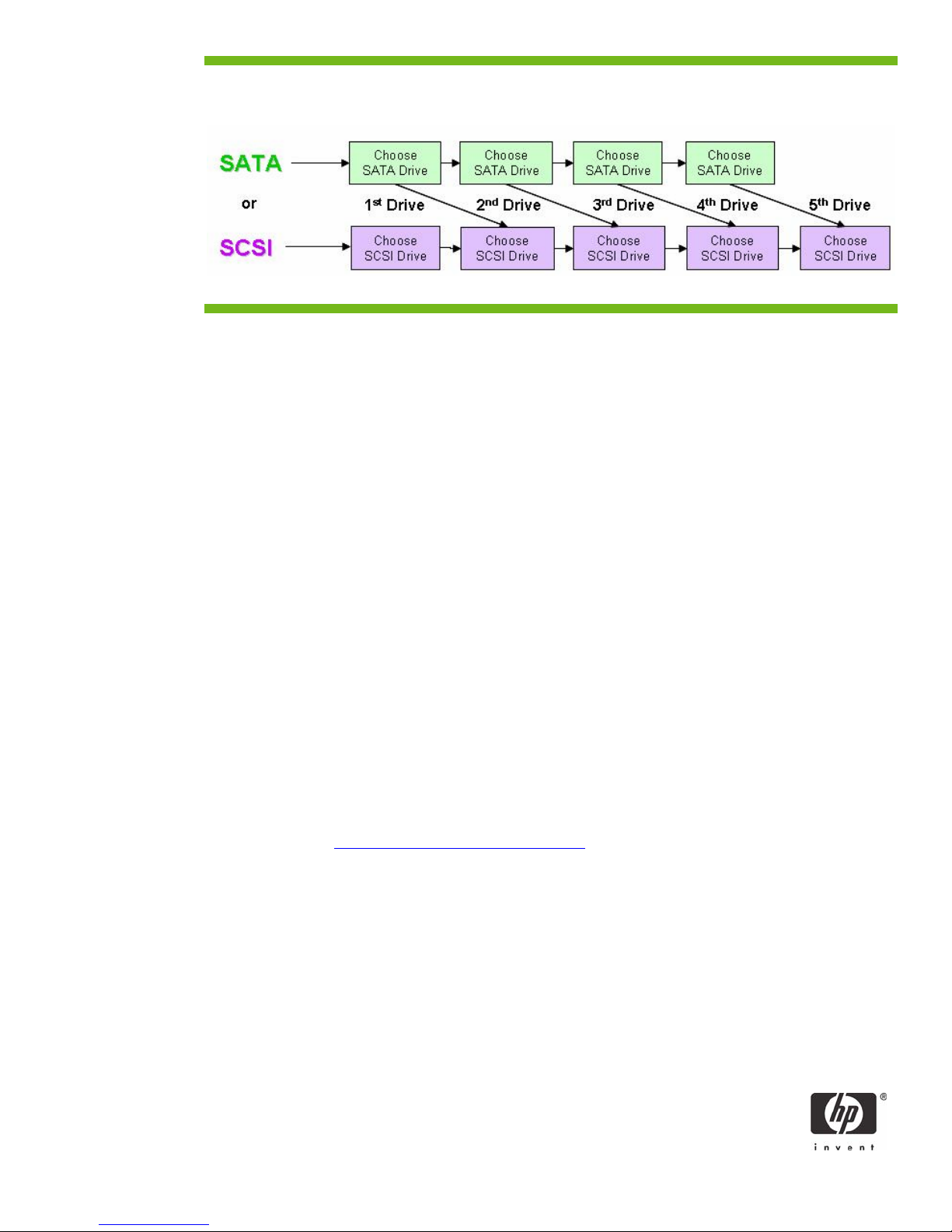

Figure 2. Supported Drive Combinations
RAID
The xw9300 supports SCSI RAID with the addition of a PP574AV card. That card supports RAID 0
(Striping, for performance) and RAID 1 (Mirroring for fault tolerance). The supported RAID
configurations require two or four SCSI drives, and in all cases disks being RAIDed must be identical.
Also note that using RAID 1 halves the amount of available storage. More details on the personal
Workstation RAID solutions can be found in the Personal Workstation RAID Solutions white paper.
Cabling
For Factory-integrated storage, all required cabling is provided. For xw9300 AMO storage, the
AA818A 5-Port SCSI cable should be ordered with the PP574AV RAID controller. The AA658A
U320 SCSI Back Panel cable kit allows external SCSI devices to be connected. For those customers
who desire to install their own EIDE drive(s) the DY660A EIDE Cable Kit is provided as an AMO item.
Summary
The xw9300 provides a large amount of highly-configurable storage.
Additional Resources
The following documents also provide additional information about RAID configurations and can be
located by visiting www.hp.com/support/xw9300_manuals and selecting the White papers quick
jump link.
•Setting up SATA RAID on the xw9300 Mini White Paper
•Workstation RAID Primer Mini White Paper
© 2006 Hewlett-Packard Development Company, L.P. The information contained
herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
439270-001, October 2006
3
