HIK VISION DS-KH6320-WTE1-W User manual
Network Indoor Staon
Installaon Guide
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger Indicates a hazardous situaon which, if not avoided, will or
could result in death or serious injury.
Cauon Indicates a potenally hazardous situaon which, if not
avoided, could result in equipment damage, data loss,
performance degradaon, or unexpected results.
Note Provides addional informaon to emphasize or
supplement important points of the main text.
Network Indoor Staon Installaon Guide
i
Contents
1 About this Manual ...................................................................................... 1
2 Appearance ................................................................................................ 2
3 Wiring Descripon ...................................................................................... 4
4 Installaon .................................................................................................. 5
4.1 Wall Mounng Plate ......................................................................................... 5
4.2 Wall Mounng with Juncon Box ..................................................................... 5
4.3 Mounng Indoor Staon without Juncon Box ................................................ 6
Network Indoor Staon Installaon Guide
ii
1 About this Manual
Get the manual and related soware from or the ocial website (hp://
www.hikvision.com).
Product Model
Network Indoor Staon DS-KH6320-WTE1,DS-KH6320-TE1
Scan the QR code to get the
conguraon guide for detailed
informaon.
Scan the QR code to get the operaon
guide for detailed informaon.
Network Indoor Staon Installaon Guide
1
2 Appearance
Front Panel
Figure 2-1 Front Panel
Table 2-1 Descripon
No. Descripon
1 Screen
2 Microphone
Network Indoor Staon Installaon Guide
2
Rear Panel
Figure 2-2 Rear Panel
Table 2-2 Descripon
No. Descripon
3 Network Interface
4 Loudspeaker
5 TF Card Slot
6 Alarm Terminal
7 Reserved
8 Power Terminal
Network Indoor Staon Installaon Guide
3
3 Wiring Descripon
There are 20 pins in the terminal on the rear panel of the indoor staon: 2 RS-485
pins, 5 reserved pins, 4 relay output pins, 8 alarm input pins, and 1 GND pin.
Note
There are 20 pins in the terminal on the rear panel of the DS-KH6320-TE1: 11
reserved pins, 8 alarm input pins, and 1 GND pin. Please refer to the specic model.
Figure 3-1 Wiring Descripon (Alarm Input Device)
The internal circuit structure of the relay output is shown as below.
Figure 3-2 Relay Output Internal Circuit Structure
Network Indoor Staon Installaon Guide
4
4 Installaon
It supports wall mounng. There are two installaon modes.
4.1 Wall Mounng Plate
The wall mounng plate and the juncon box are required to install the indoor
staon onto the wall.
The dimension of juncon box should be 75 mm (width) × 75 mm (length) × 50 mm
(depth).
The dimension of wall mounng plate is shown .

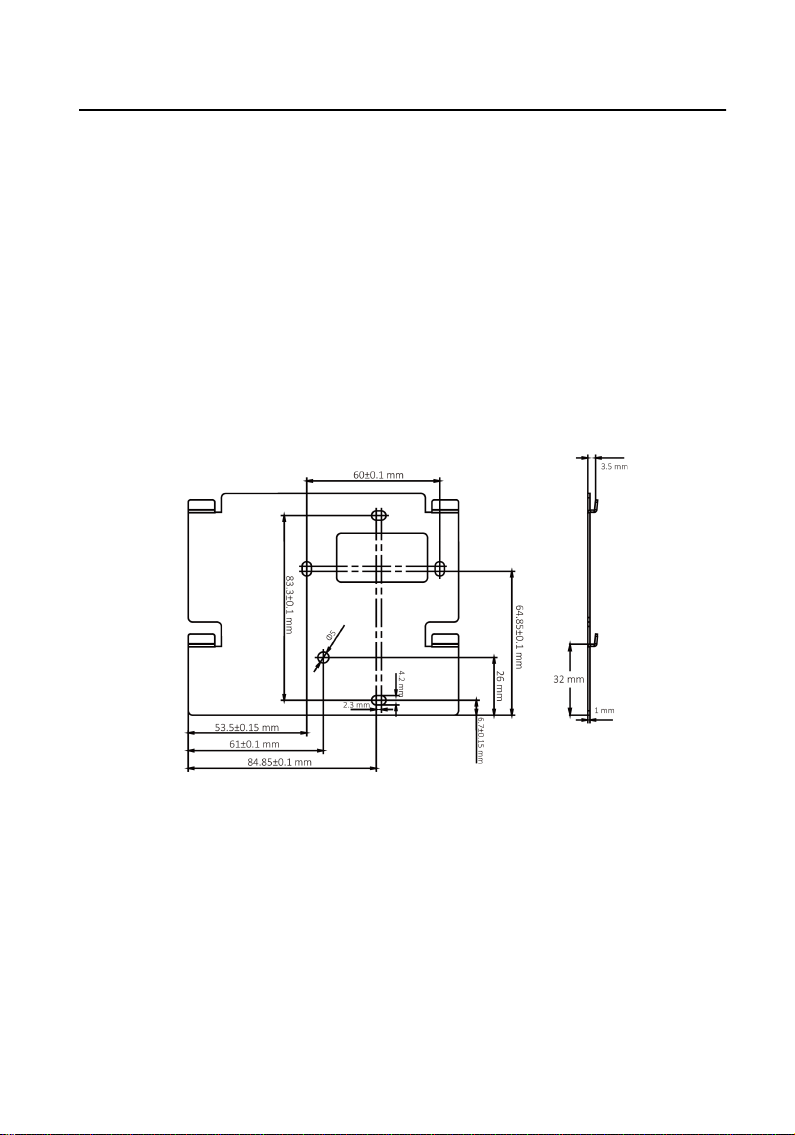

Figure 4-1 Wall Mounng Plate
4.2 Wall Mounng with Juncon Box
Network Indoor Staon Installaon Guide
5
Before You Start
Note
•Make sure the device in the package is in good condion and all the assembly
parts are included.
•The power supply the indoor staon supports is 12 VDC. Please make sure your
power supply matches your indoor staon.
•Make sure all the related equipment is power-o during the installaon.
•Check the product specicaon for the installaon environment.
Steps
1. Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm
(length) × 50 mm (depth).
2. Insert the juncon box to the hole chiseled on the wall.
3. Fix the wall mounng plate to the juncon box with 2 screws.
4. Hook the indoor staon to the wall mounng plate ghtly by inserng the plate
hooks into the slots on the rear panel of the indoor staon, during which the
lock catch will be locked automacally.

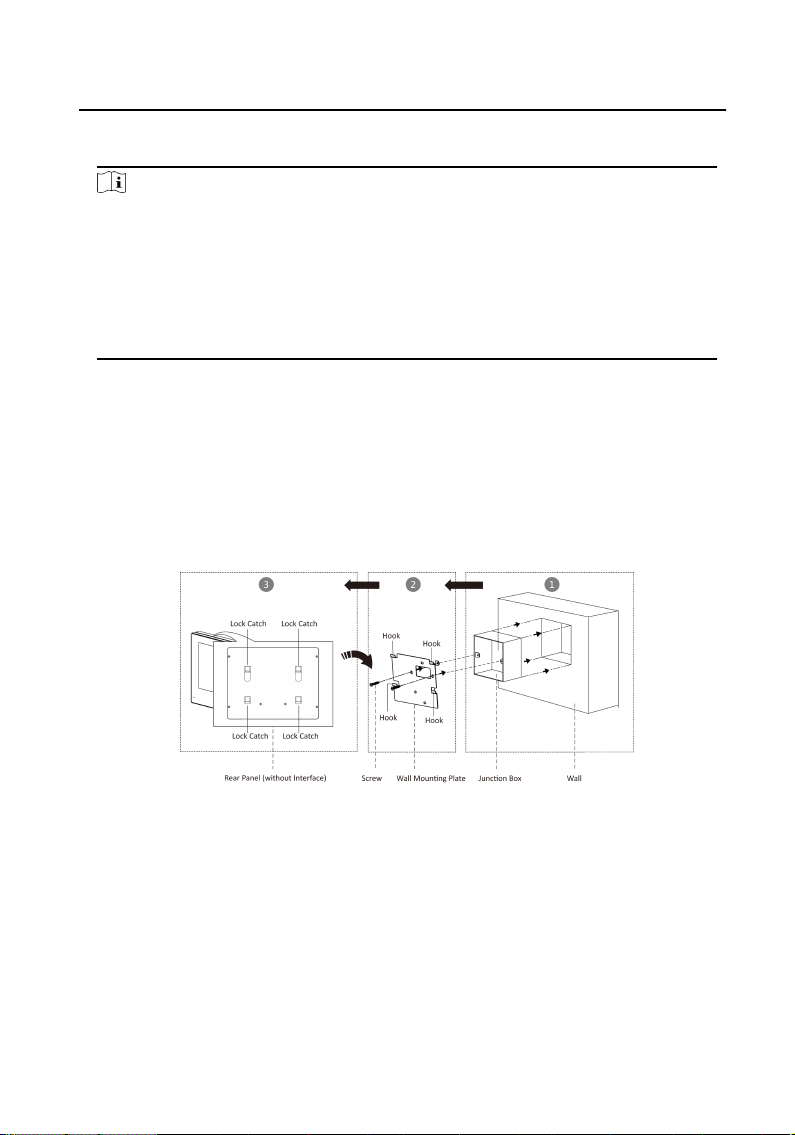

Figure 4-2 Wall Mounng with Juncon Box
4.3 Mounng Indoor Staon without Juncon Box
Network Indoor Staon Installaon Guide
6
Before You Start
Note
•Make sure the device in the package is in good condion and all the assembly
parts are included.
•The power supply the indoor staon supports is 12 VDC. Please make sure your
power supply matches your indoor staon.
•Make sure all the related equipment is power-o during the installaon.
•Check the product specicaon for the installaon environment.
Steps
1. Insert 2 expension tubes into the wall.
2. Fix the wall mounng plate to the juncon box with 2 screws.
3. Hook the indoor staon to the wall mounng plate ghtly by inserng the plate
hooks into the slots on the rear panel of the indoor staon, during which the
lock catch will be locked automacally.

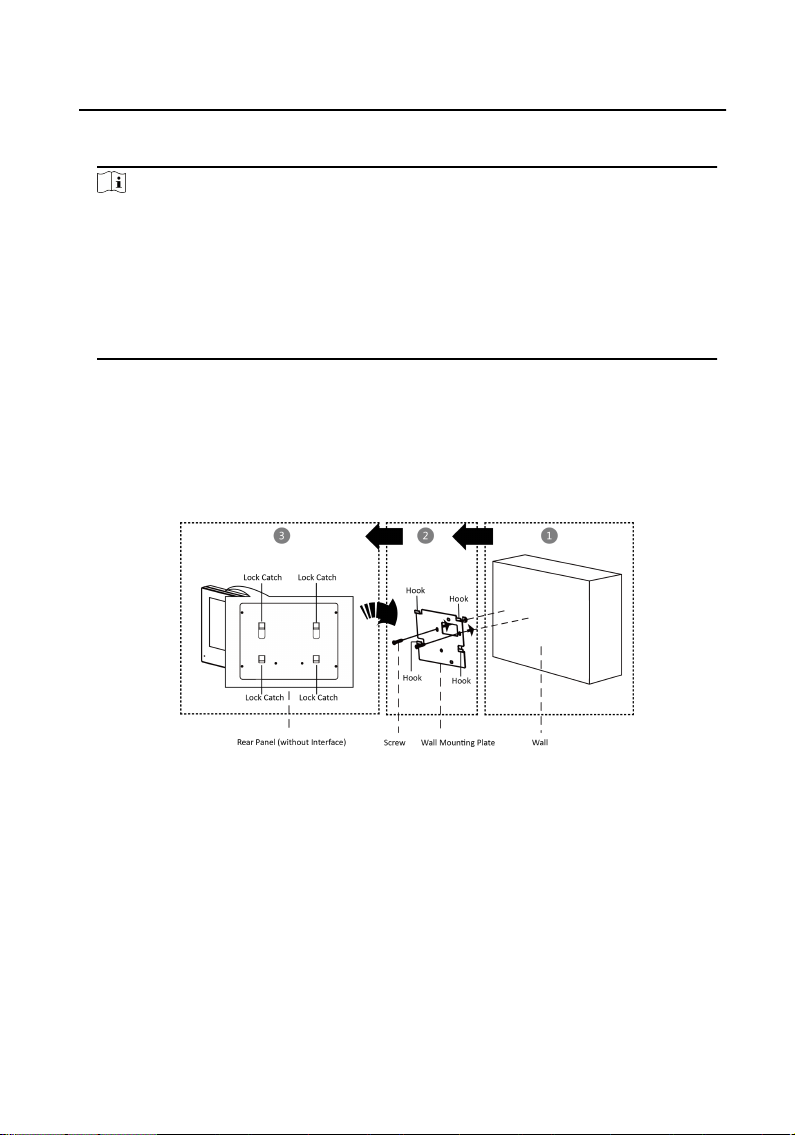

Figure 4-3 Wall Mounng without Juncon Box
Network Indoor Staon Installaon Guide
7
