HAUL MASTER 93226 Assembly instructions

Page 2 For technical questions, please call 1-888-866-5797. Item 93226, 93227

Specifications

Product Application Marker / Clearance Lamps

Overall Dimensions: 4-1/8” L x 2-1/16” W x 1” H

Housing: 4-1/8” L x 2-1/16” W x 5/8” H

Lens: 4” L x 2” W x 11/16” H.

Mounting Holes: 1/4” diameter and 3” apart at centers

Construction: White ABS Poly and lens is red/amber acrylic.

Light Bulb: 12VDC (2 included)

Important Safety Information

Assembly Precautions

1. Assemble only according to these

instructions. Improper assembly

can create hazards.

2. Wear ANSI-approved safety goggles and

heavy-duty work gloves during assembly.

3. Keep assembly area clean and well lit.

4. Keep bystanders out of the

area during assembly.

5. Do not assemble when tired

or when under the influence of

alcohol, drugs or medication.

6. Replacement parts and accessories.

When servicing, use only identical

replacement parts. Use of any other

parts will void the warranty.

7. Always check hardware and assembled

parts after assembling. All connections

should be tight and hardware tightened.

8. Weight capacity and other product

capabilities apply to properly and

completely assembled product only.

Use Precautions

1. This product is not a toy. Do not allow

children to play with or near this item.

2. Use as intended only.

3. Inspect before every use; do not use

if parts are loose or damaged.

4. Use the right product for the job.

There are certain applications for

which the Lamp was designed.

5. Make certain to follow all local DMV

(Department of Motor Vehicles)

laws regarding vehicles and

vehicle lighting requirements.

6. Do not cut or rewire any

part of the Lamp.

7. Make certain the vehicle is turned

off before doing any maintenance.

8. The warnings, cautions, and instructions

discussed in this instruction manual

cannot cover all possible conditions

and situations that may occur. It must

be understood by the operator that

common sense and caution are factors

which cannot be built into this product,

but must be supplied by the operator.

9. Maintain product labels and nameplates.

These carry important safety information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

Page 3For technical questions, please call 1-888-866-5797.Item 93226, 93227

Assembly Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section

at the beginning of this document including all text under subheadings therein

before set up or use of this product.

Before operating this product be sure that you

have all parts described in the Parts List and

Assembly Diagram located on page 4 of this

manual. If you do not have experience doing

this type of electrical work, the job should be

done by an automotive service technician.

1. Make certain that the vehicle’s engine

is OFF before doing any maintenance

or installation. Proceed with the

following steps for assembling the

2 Piece Marker/Clearance Lamp.

2. Use a pin connector or in-line splice

connector (neither included) to

connect the 2 Piece Marker/Clearance

Lamp to your vehicle. When using

an in-line splice connector, it is not

necessary to strip the wires.

3. Insert the wire from your vehicle into one

channel of the in-line splice connector.

Insert the wire extending from the Lamp

into the second channel of the in-line splice

connector. Fold down the tab on the in-line

splice connector to make the connection.

4. When mounting the lights to a trailer,

both the forward (amber) and rear

(red) marker lights are connected

to the trailer’s tail light wires.

5. When attaching the Lamp to the

vehicle or trailer, the ground screw

must make contact with a metal

surface to assure proper grounding.

6. Once the wires are properly connected,

test them before setting the Lamp in place.

7. To mount onto a trailer or vehicle, use

the mounting holes on the Lamp. The

mounting holes are spaced 3" from center

to center and are 1/4" diameter. Make

certain that the ground screw makes

proper contact with a metal surface.

Mounting hardware is not included.

Installing the Light Bulb

1. To remove the Lens insert a screwdriver

between the Lens and Housing.

Gently twist the screwdriver to pry

the Lens) off of the Housing.

2. Gently grasp the Light Bulb (12VDC)

(included) and slide it into the

socket. Twist until the Light Bulb

locks in place. See Figure A.

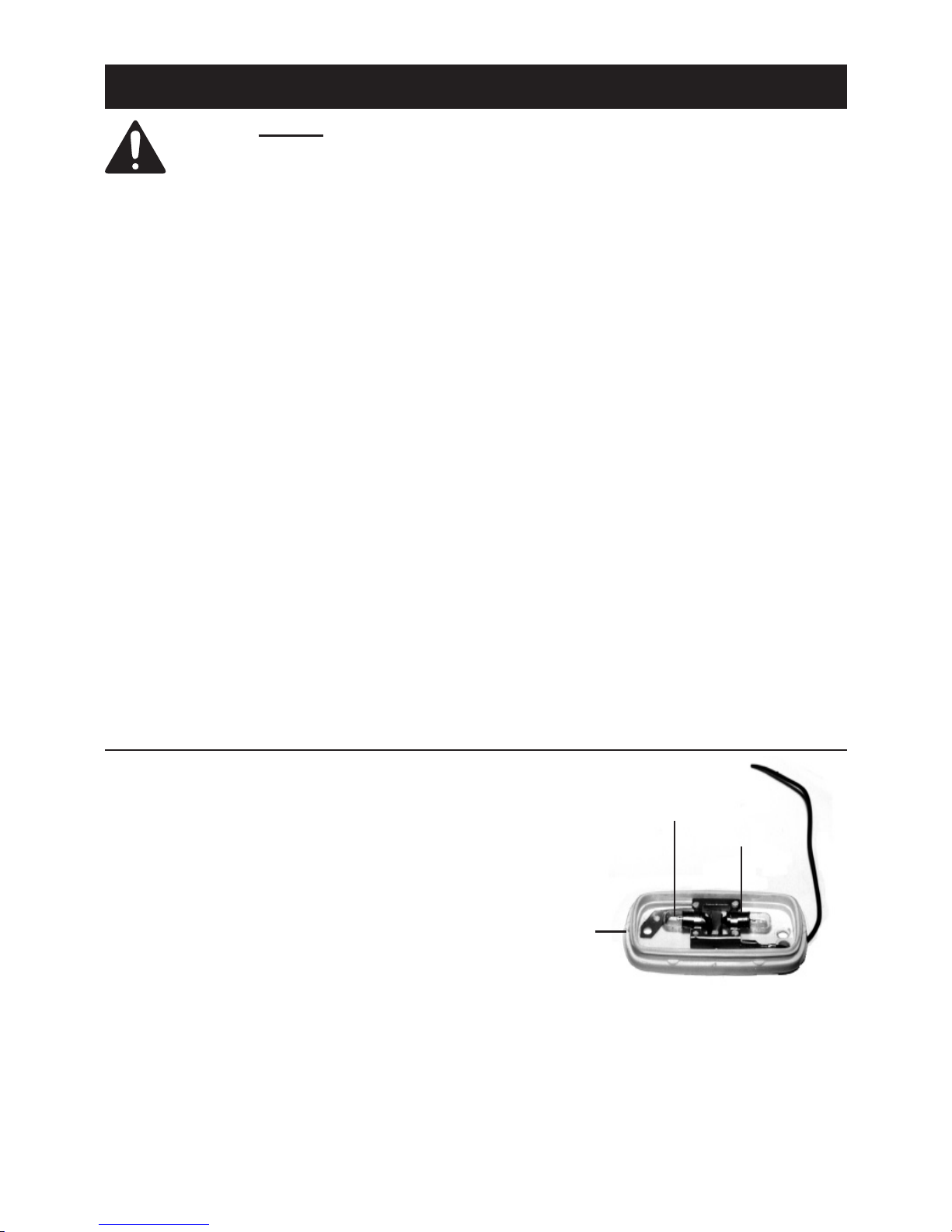

Socket

Light Bulb

Housing

Figure A

3. Verify that the Light Bulb is

securely in place. Snap the Lens

back onto the Housing.

Record Serial Number Here:

Note: If product has no serial number, record

month and year of purchase instead.

Note: Replacement parts are

not available for this item.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality

and durability standards, and warrants to the original purchaser that this product is free from

defects in materials and workmanship for the period of 90 days from the date of purchase.

This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence

or accidents, repairs or alterations outside our facilities, criminal activity, improper installation,

normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,

injuries to persons or property, or for incidental, contingent, special or consequential damages

arising from the use of our product. Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitation of exclusion may not apply to you.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us

with transportation charges prepaid. Proof of purchase date and an explanation

of the complaint must accompany the merchandise. If our inspection verifies the

defect, we will either repair or replace the product at our election or we may elect

to refund the purchase price if we cannot readily and quickly provide you with a

replacement. We will return repaired products at our expense, but if we determine

there is no defect, or that the defect resulted from causes not within the scope

of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also

have other rights which vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
