Hans Grohe 06630XX0 User manual

3-Hole Roman Tub Rough

3-Hole Roman Tub Trim Kits

Installation Instructions / Warranty



Technical Information

Recommended water pressure 45-80 psi

Max. water pressure 145 psi

Recommended hot water temp. 10° - 140° F*

Max. hot water temp 165°F*

Hole size in mounting surface

valves 1¼"

spout 1⅜"

spout retaining pin ³⁄₁₆"

Max. mounting surface depth 1⁹⁄₁₆"

Max ow rate 10 gpm

*Please know and follow all applicable local plumbing codes when setting the temperature on the water heater.

3-Hole Roman Tub Rough

06607000

Installation Considerations

For best results, this unit should be installed by a licensed, professional plumber.

Large dierences in pressure between the hot and cold supplies should be balanced.

The included connecting tubes are type “K” copper tubing. If an installation dierent from the one

shown here is desired, the plumber may provide his own copper tubing.

To insure proper t of the trim, this valve must be installed after the mounting surface is nished and

made watertight.

This valve requires ½" hot and cold supply lines (not included)

The hot and cold water supplies should be ushed thoroughly before installation of this rough valve.

Damage to the cartridges caused by debris is not covered by the warranty.

•

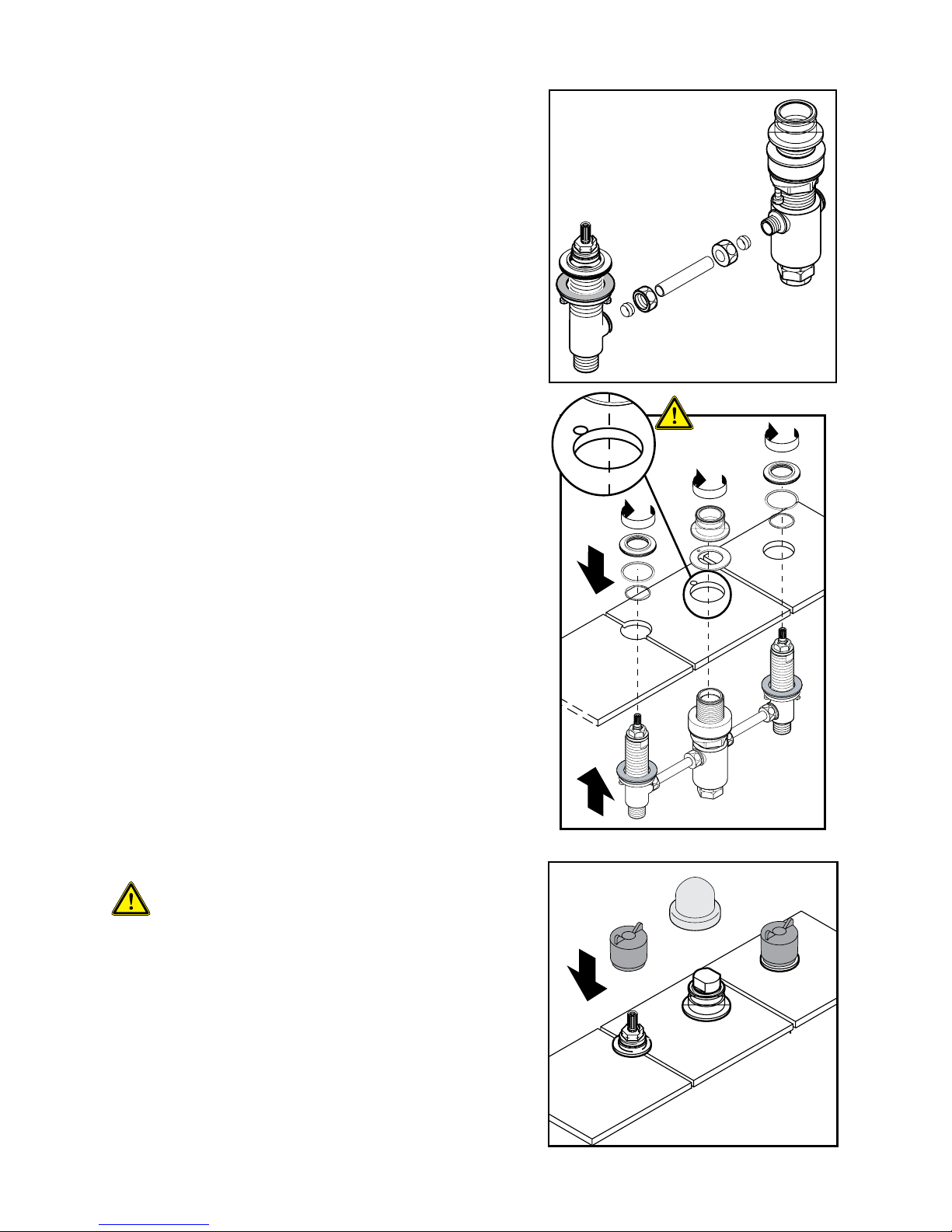

Installation

Install the connecting tubes

Connect the valves to the spout tee using ⅜" com-

pression ttings (included). Tighten the compression

ttings wrench tight.

Install the rough

Remove the plaster shield, spout adapter and gasket

from the spout tee.

If the mounting surface is unusually, thin, leave the white

plastic spacer in place. Otherwise, it may be removed

and discarded.

Insert the valves and spout tee through the mounting

surface.

Install the stop rings and escutcheon adapters on the

valves. When installed correctly, the stop rings will stop

the escutcheon adapters at the proper mounting height.

Lower the valves so that the escutcheon adapters rest on

the mounting surface.

Slide the spout adapter gasket over the spout tee,

aligning the hole in the gasket with the retaining pin hole

on the mounting surface.

Install the spout adapter.

The retaining pin on the bottom of the

adapter must go through the hole in the

mounting surface.

Tighten the mounting nuts and tensioning screws.

Install the plaster shields. Leave them in place until the

trim is installed.

Trim, 3-Hole Roman Tub Sets

Solaris 06630XX0

Stratos 06574XX0

Metro 06651000

Swing C Tango C Limbo C

Cross handle 061XX0 06045XX0 06109XX0

Scroll handle 0611XX0 06044XX0 06108XX0

Lever handle 0610XX0 06043XX0 06107XX0

These trim kits are for use with rough 06607000. The rough must be installed, and the mounting sur-

face complete and watertight.

06630XX0 06574XX0 06651XX0

Tango C

scroll handles shown

Limbo C

lever handles shown

Swing C

cross handles shown

Tango C

scroll handles shown

Limbo C

lever handles shown

Swing C

cross handles shown

06630XX0 06574XX0

06651XX0

Install the Handles

Swing C, Tango C, Limbo C only: Install the deco-rings on the

handles.

All models: Remove the plaster shields from the hot and

cold valves and spout tee.

Position the handle over the stem with the lever or cross in

the desired “o” position.

Hold the lever or cross with one hand.

Use the other hand to turn the bell, and screw it down

over the valve.

User Instructions

Turn the left handle to obtain hot water, the right handle to obtain cold water.

If the ow of water diminishes over time, remove and clean the aerator.

Install the spout

Remove the plug from the spout tee.

Swing C only: Install the deco-ring on the spout. Make

sure that the set screw hole in the deco ring lines up with

the set screw hole on the spout.

All models: Push the spout sealing ring rmly into the

spout tee.

Press the spout over the spout tee. Install and tighten the

set screw with the enclosed 3 mm Allen wrench.

Turn on the water and check all connections for leaks.

Replacement Parts

1 hot cartridge 94009000

 cold cartridge 94008000

3 mounting kit 88511000

4 mounting kit 96080000

5 compression ftg 88513000

6 valve set 88503000

7 sealing ring 8851000

8 aerator 13956XX0

9 set screw 9609000

10 Solaris handle 88569XX0

11 Stratos handle 88571XX0

1 Metro handle 88570XX0

13 cross handle 88614XX0

14 scroll handle, cold 88613XX0

scroll handle, hot 88643XX0

15 lever handle 8861XX0

16 cross handle 88618XX0

17 scroll handle, hot 88616XX0

scroll handle, cold 88617XX0

18 lever handle 88615XX0

19 handle deco ring 88600XX0



11 1

06607000

0

Swing C Tango C

Limbo C

Limited Lifetime Consumer Warranty

This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is

limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either

the United States or Canada.

WHO IS COVERED BY THE WARRANTY

This warranty extends to the original consumer purchaser only. This warranty is non-transferable.

WHAT IS COVERED BY THE WARRANTY

This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material or

workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of the product

that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If

Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made, Hansgrohe may elect to refund

the purchase price in exchange for the return of the product.

Cleaning Recommendation for Hansgrohe Products

Modern lavatory faucets, kitchen faucets, and showers consist of very dierent materials to comply with the needs of the market with

regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.

Cleaning Materials for Faucets and Showers

Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when

cleaning faucets and showers:

Only use cleaning materials which are explicitly intended for this type of application.

Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable

damage.

Never mix one cleaning material with another.

Never use cleaning materials or appliances with an abrasive eect, such as unsuitable cleaning powders, sponge pads, or micro

ber cloths.

Cleaning Instructions for Faucets and Showers

Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points:

Clean the faucets and showers as and when required

Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the

xture longer than necessary.

Regular cleaning can prevent calcication.

When using spray cleaners, spray rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter

openings and gaps and cause damage.

After cleaning, rinse thoroughly with clean water to remove any cleaner residue.

Important

Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.

Please note: if the surface is already damaged, the eect of cleaning materials will cause further damage.

Components with damaged surfaces must be replaced or injury could result.

Damage caused by improper treatment is not covered under the warranty.

•
