1. Introduction

The F-Guard-IR3-H2 flame detector will detect hydrogen and other “energy transition” fires quickly

allowing actions to be initiated to minimize the extend of the fire. The detector addresses slow growing

fires as well as fast eruptions of fire using improved IR3 technology. The detector operates in all weather

and light conditions.

These features, along with a built-in event logger, provide additional means to study the cause and

development of fire events.

The detector is certified for use in hazardous area locations; it may also be used in other areas not

classified as hazardous. The two cable/conduit entries either side of the lower part of the detector

housing are for connecting power and outputs to associated signaling equipment.

During normal operation, the flame detector performs self-tests of its optics, electronics, and software.

These include a periodic BIT (Built-In-Test) in which the sensors and window cleanliness are tested.

Features

•High sensitivity - up to 100ft (30m)

•Ultra-fast detection mode - detection within 40 milliseconds for fireballs or explosions.

•Detection of “energy transition” flames, like hydrogen, methane, syngas, and methanol

•Extreme sensitivity: Up to 100 ft. (30m) for a 32” plume, 1.5secs response

•Option: Improved speed of response for standard fires - (0.5s) for enclosed space protection, like spray

paint booths or printing presses

•Built-in-Test (BIT) - Automatic and manual self-test of window cleanliness and detector operation.

•Window heater to avoid condensation and icing.

•Tilt mounting bracket for accurate detector positioning.

For more information & technical support: [email protected] 2

F-Guard IR3-H2 User Manual

76-M-6010-02-02

Model Number Description

Model No are defined as follows:

F-Guard-IR3-H2 - A SX X

Standard

Design for, but not limited to, automotive spray paint applications

where compliance with 0.5 s response (per NFPA 33) is needed.

Generally used for enclosed spare protection.

M25

¾” NPT

1.2.1 Enhanced performance options

Option 5: Design for, but not limited to, enclosed space protection like automotive spray paint applications

where compliance with 0.5 s response (per NFPA 33) is needed

Internal tests

During normal operation, the flame detector performs self-tests of its optics, electronics and software. These

include a periodic BIT (Built-In-Test) in which the sensors and window cleanliness are tested. Any detected

fault is indicated as shown in Table 4 (in section 4). During “Dirty Window” fault the detection sensitivity is

significantly reduced, while “Fault” refers to critical faults which totally prevent flame detection.

For more information & technical support: [email protected] 3

F-Guard IR3-H2 User Manual

76-M-6010-02-02

Product Overview

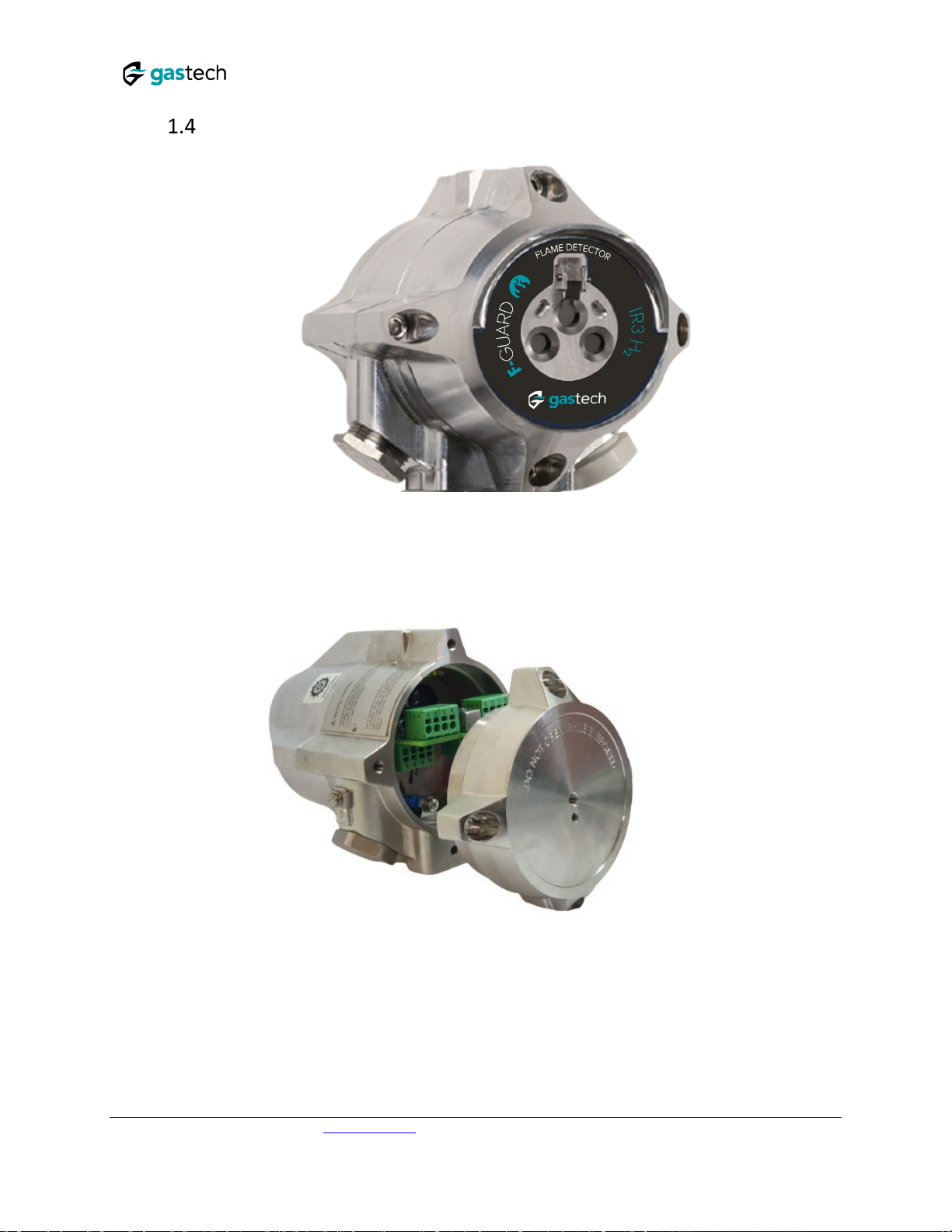

FIGURE 1-FRONT VIEW OF THE F-GUARD-IR3-H2

FIGURE 2-REAR VIEW OF THE F-GUARD-IR3-H2

For more information & technical support: [email protected] 4

F-Guard IR3-H2 User Manual

76-M-6010-02-02

Accessories

1.5.1 Mounting Bracket

The detector should be mounted using the

stainless-steel tilt mount part number 85-

6000-TMO. This allows the detector to be

securely attached to a wall, pole or other

solid surface using appropriate fixings. See

section2.5 and 2.6 for further details.

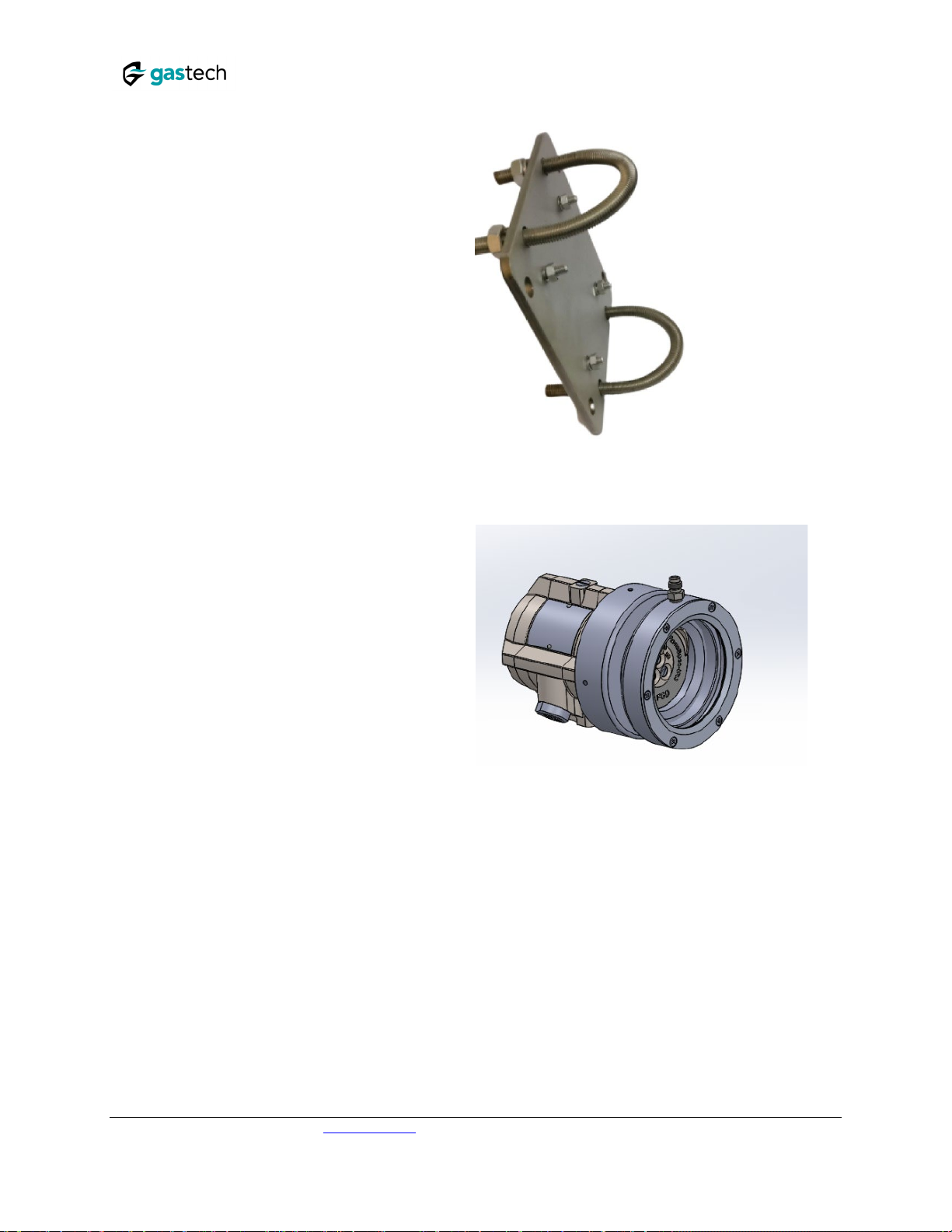

FIGURE 3-TILT MOUNT

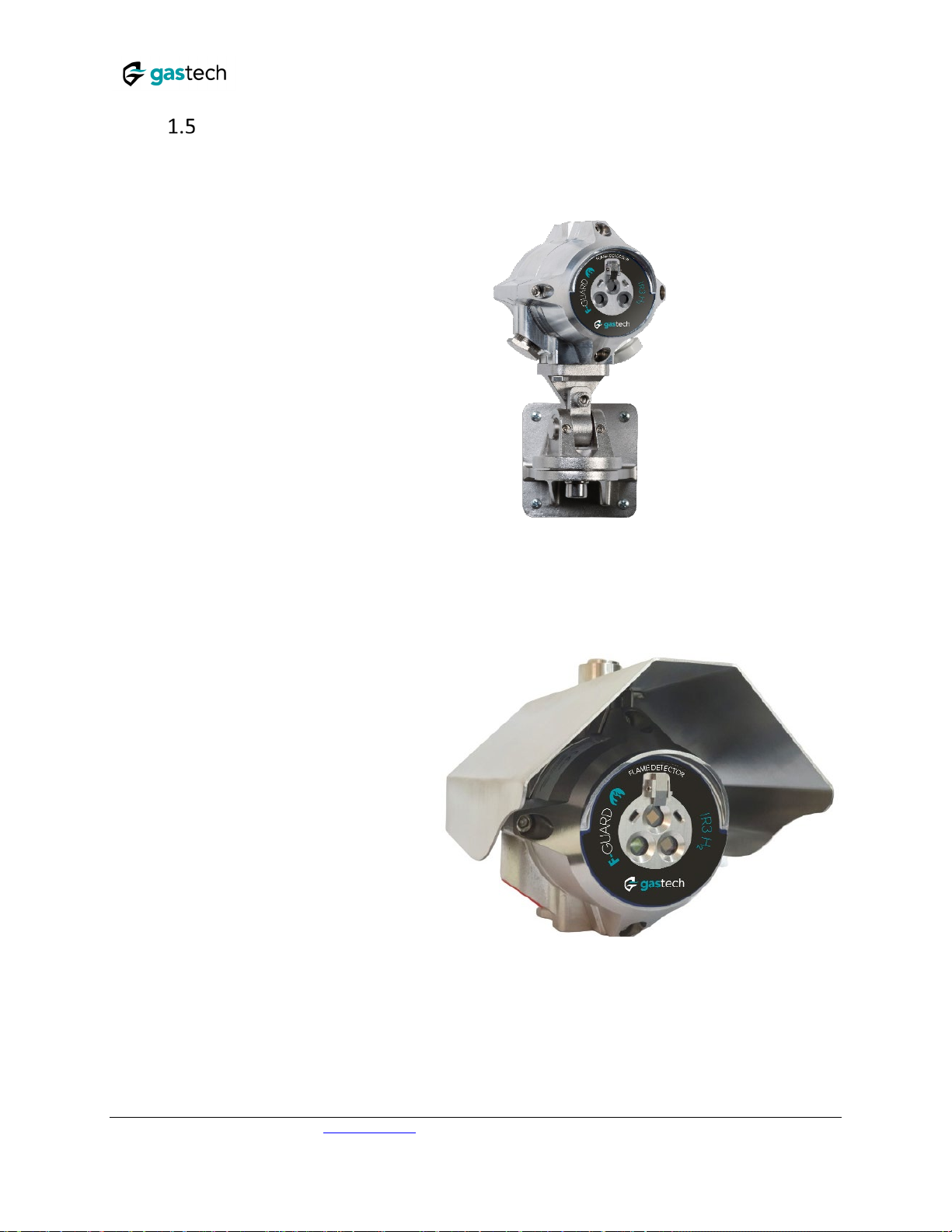

1.5.2 Weather Cover

The weather cover,

P/N

85-6000-WC-SS-01 protects the

detector from extreme weather

conditions such

heat, rain, and snow

FIGURE 4-WEATHER COVER

1.5.3 Pole mount

For more information & technical support: [email protected] 5

F-Guard IR3-H2 User Manual

76-M-6010-02-02

The pole mount enables the detectors to be

installed with itstilt mount brackets.The pole

mount kit wesupply are suitable for 2-inch or3-

inch poles. Part number F-Guard-PMA-S23.

FIGURE 5-POLE MOUNT

1.5.4 Air shield

The air shield P/N F-Guard-ASD-S01 allows

installation of flame detectors in harsh weather

conditions where they may beexposed to dust,

sand, and other particulate matter. The

connection point can be mounted in the 3, 9or12

o’clock locations.

•

Air pressure source: Clean, dry, and oil-free air

•

Pressure: 2-3 bar /30-45 psi

•

Fitting: 7/16”—20UNF-2A

•

Operation temperature: -55°C to +85°C / -67°F to

+185°F

FIGURE 6-AIR SHIELD

Table of contents

Other GasTech Gas Detector manuals

GasTech

GasTech Cannonball 3 User manual

GasTech

GasTech D-Guard User manual

GasTech

GasTech D-Guard2S User manual

GasTech

GasTech D-Guard2 User manual

GasTech

GasTech D-Guard2 User manual

GasTech

GasTech F-Guard-UV-IR-HD User manual

GasTech

GasTech F-Guard-IR3-H2-HD User manual

GasTech

GasTech G-Shield Fire User manual

GasTech

GasTech GTD2000-Tx User manual

GasTech

GasTech F-GUARD UVIR User manual

GasTech

GasTech GTF220 User manual

Popular Gas Detector manuals by other brands

Macurco

Macurco GD-6 Operation manual

Evikon

Evikon E2632 user manual

Critical Environment Technologies

Critical Environment Technologies CGAS-A Series Installation & operation manual

MSA

MSA altair 5 operating manual

DOD Technologies

DOD Technologies ChemLogic CL96 operating manual

DEGA

DEGA NS III LCD Series instruction manual

RKI Instruments

RKI Instruments 35-3001A-08-01 Operator's manual

PEMTECH

PEMTECH PT2008 Series Operator's manual

Coster

Coster RGS 328 instructions

Sygonix

Sygonix 2483186 operating instructions

Perry

Perry 1GA 50917MET/P Installation and operating instructions

isweek

isweek AS8900 manual

Oldham

Oldham OLC 10 user manual

Wizmart

Wizmart NB983 installation instructions

Beacon

Beacon MEGA Installation, operation and maintenance instructions

RKI

RKI GX-6000 Operator's manual

Dräger

Dräger PIR 7000 installation instructions

GDS

GDS GASMAX EC quick start guide
