BEFORE YOU BEGIN:

To avoid any confusion with your new shed

build, we strongly suggest that you unpack

and identify each part before you begin to

put it together.

ASSEMBLY

INSTRUCTIONS

YOU SHOULD HAVE ONE PACKAGE:

• 1 cardboard package

TOOLS SUPPLIED:

• 1 riveter

• 3.3mm double ended drillbit

TOOLS REQUIRED:

• Battery or electric drill (drill bits supplied)

• Tape measure

• Ladder

• Non-slip gloves, good shoes and goggles

• A set of helping hands

Some parts have sharp edges and should be handled

very carefully. We recommend the use of protective

gloves and footwear when assembling.

DO NOT attempt to erect this shed in windy weather.

All dimensions are approximate.

WATCH OUR

SHED ASSEMBLY

VIDEO GUIDE

HERE

2If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

ASSEMBLY OVERVIEW

These instructions are designed to guide you though the process

of building your new garden shed. It is a simple process of joining

sheets together before adding top and bottom channels to form a

shed panel. These panels are then joined together to make your shed.

When fitting the channels to the sheets, the high side of the channel should go on the inside of the sheet, ensuring that

any water that collects in the bottom channel will run over the lower side and run away rather than into the shed.

Rivets are fitted by drilling through outside of the channel into the ribs of the sheet, usually at every second rib. It is

also important to fit at least one rivet per sheet from the inside of

the channel into the pan of the sheet, close to a rib. Extra rivets

should be fitted on the inside of the channel into the pan of the

sheets in high wind areas.

It is critical that you remove the swarf (the metal filings created

when drilling) from the panels and channels as you assemble

them as these will rust quickly and could cause corrosion issues

with your shed!

RIBINSIDE

PANOUTSIDE

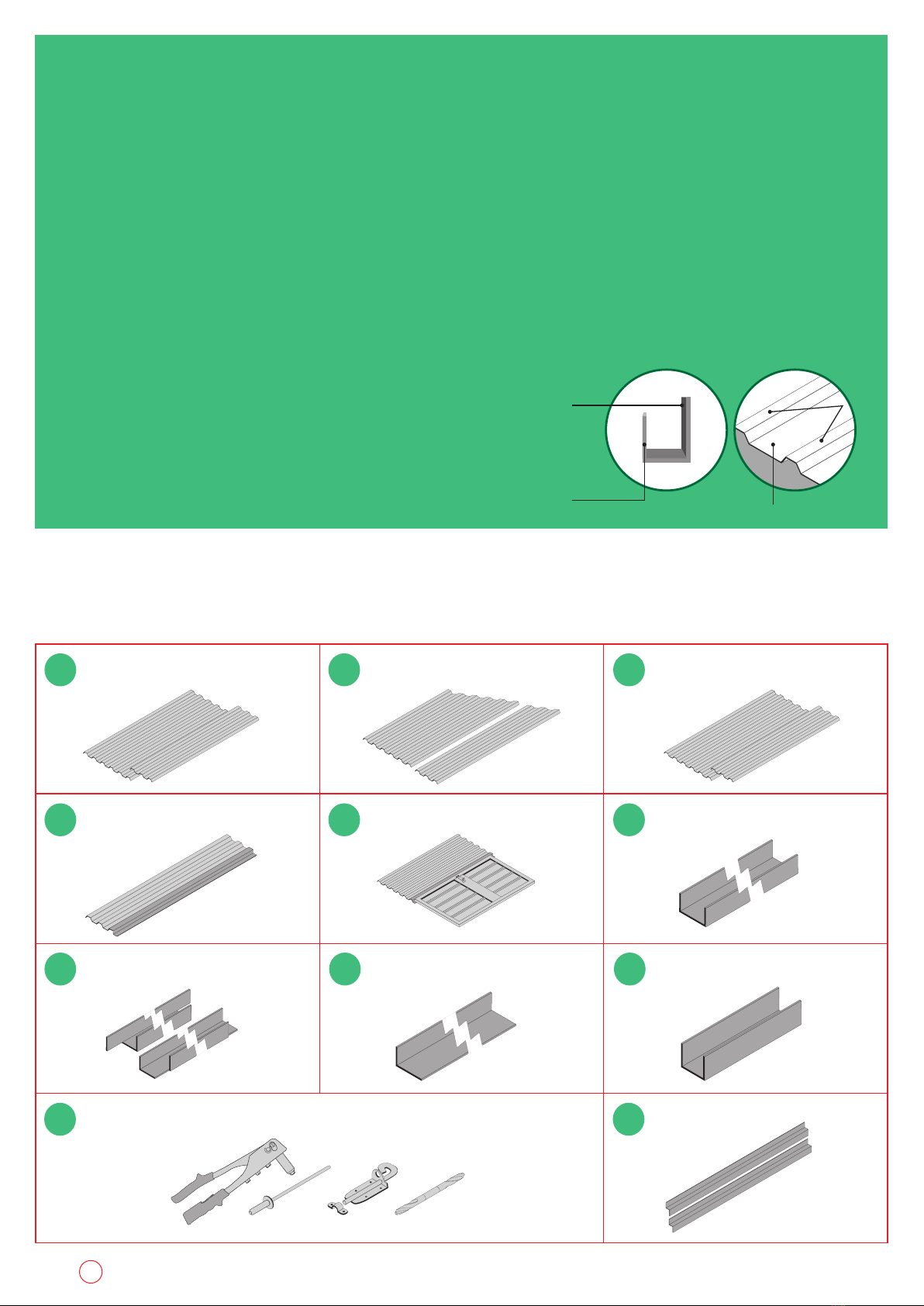

COMPONENTS CHECKLIST

Please check the parts carefully and advise immediately if any are damaged or missing.

x 1830mm sheets for the back

4 x sloping sheets and 2 x

sheets

for end walls (2

left, 2

right)

x 1980mm sheets for the roof

1 x 290mm wide sheet with door

jamb attached

Door pre-hinged to 740mm sheet with

door jamb

6 x 1815mm channels for end walls

and the roof

4 x 1815mm channels with ends cut for

front and back walls

2 x 1980mm ‘L’s for ﬂashing the roof to

the side walls

2 x 793mm door spacers

1 x pack of rivets, 1 x riveter, 1 x drill bit. and a padbolt pack with wide

flanged rivets for fixing the padbolt on to the door and door jamb.

2 x ‘Z’ door braces

If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

Put extra rivets in for high wind areas,

particularly on the underside.

GARDEN MASTER TIP

The cutouts go to the inside of the panel to

allow easy fitment of the end walls

on assembly. Note top and bottom

channels have different cutouts!

CHANNELS WITH CUTOUTS

TOP

CHANNEL

YOU WILL NEED:

x 1830mm sheets for the back

1 x 1815mm top channel

1 x 1815mm bottom channel

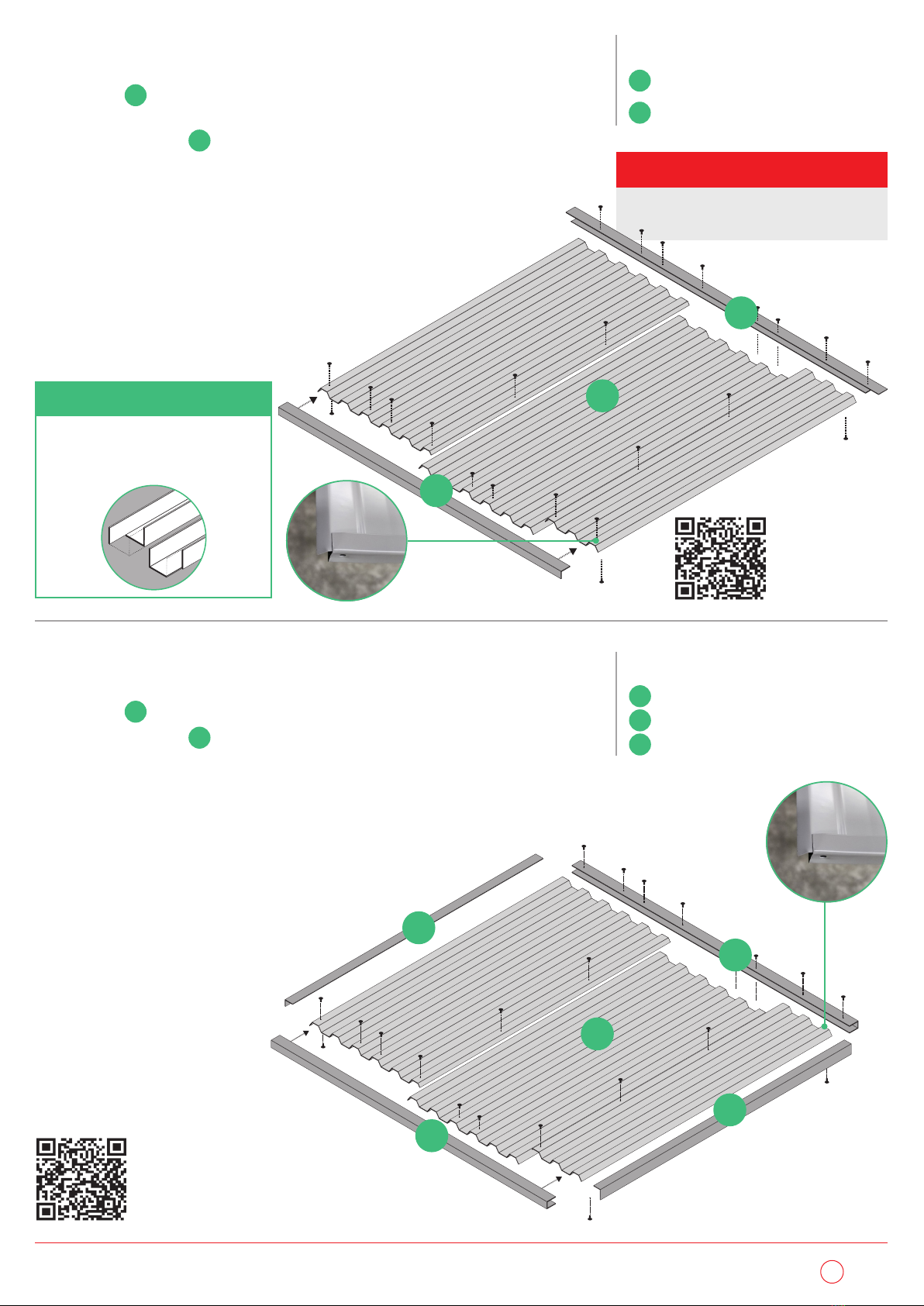

STEP 1: BACK WALL

1. Join 2 1

sheets together with 2 rivets through the overlapping

ribs making sure the ends of the sheets are flush.

2. Cap sheeting with

channels putting the cutouts top

and bottom. This will finish 10-15mm shorter than the sheet.

3. Rivet the channels through the end ribs and every 2nd rib between.

4. Make sure you put at least 1 rivet per sheet up through the underside

of the channel into the pan of the sheet.

BOTTOM

CHANNEL

WATCH OUR

SHED ASSEMBLY

VIDEO GUIDE

HERE

YOU WILL NEED:

x 1980mm sheets

2 x 1815mm channels

2 x 1980mm ‘L’s

STEP 2: ROOF

1. Join 2 1

1980mm sheets together, same as the back.

2. Cap sheeting with

1815mm channels.

3. Rivet the channels at every second rib but

not the corners at this stage.

4. Place the short flange of the ‘L’ on top of the rib at one end. Make

sure ends are flush with sheeting (diagram 1) and put one rivet in

the centre to hold the ‘L’. Rivet the corners through the channels

and one more between the corner and the centre rivet. Perform

the same at the other end. 5 rivets for each ‘L’.

WATCH OUR

SHED ASSEMBLY

VIDEO GUIDE

HERE

4If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

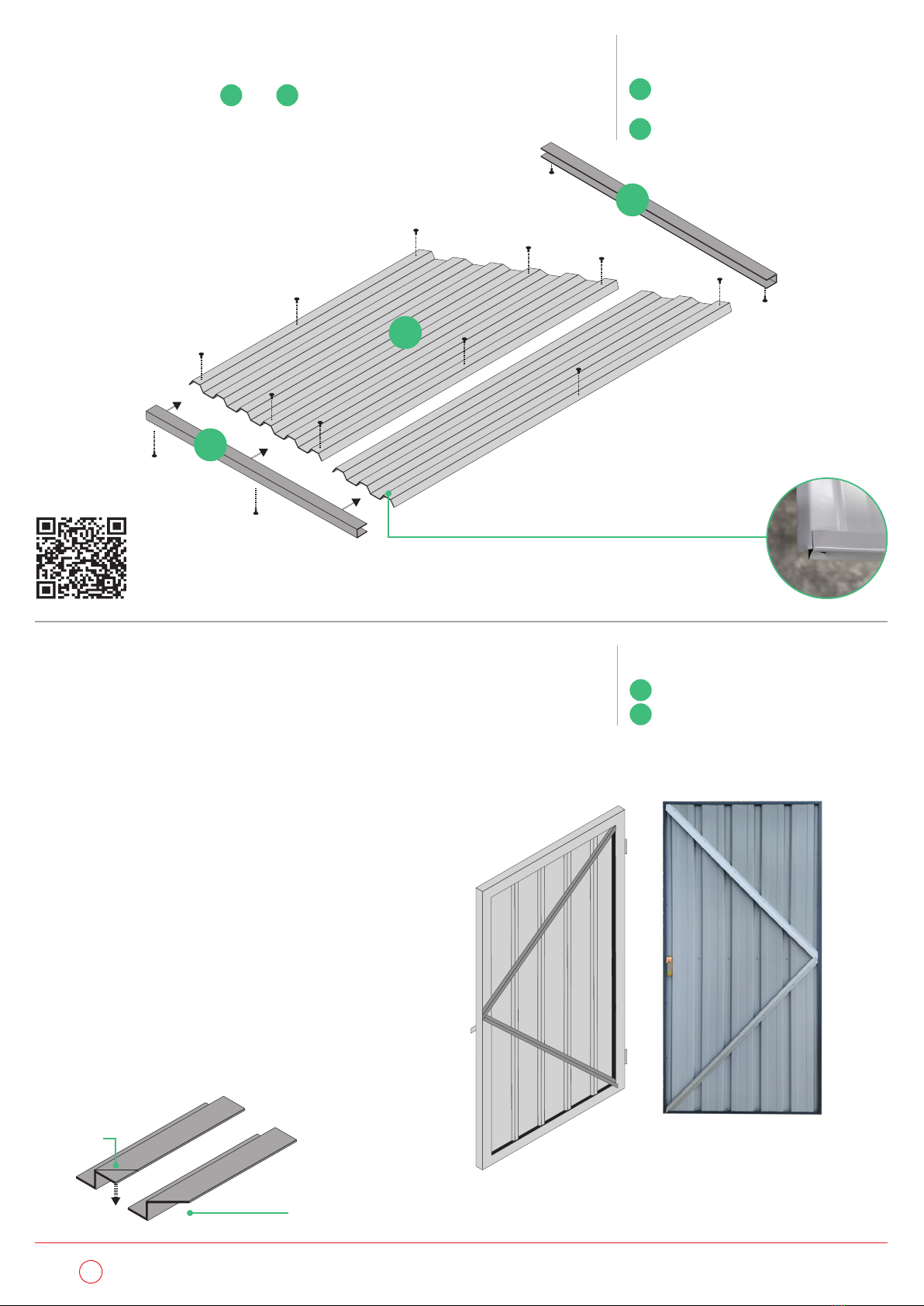

STEP 3: END WALLS

1. Cap the sloping sheets

with

1815mm channels.

2. Rivet the channels at the corners and every 2nd rib in between.

3. 2 rivets up underneath through channel into pan of sheet.

4. Perform the same again for the other end.

YOU WILL NEED:

4 x sloping sheets and 2 x

sheets

for end walls (2

left, 2

right)

4 x 1815mm channels for end walls

(2 per side)

Channels will end 15-20mm short at tops

of end walls and 10-15mm at bottoms.

WATCH OUR

SHED ASSEMBLY

VIDEO GUIDE

HERE

STEP 4: DOOR BRACES

1. The door braces can be riveted now or after you have

assembled your shed.

2. Tuck one end of the ‘Z’ between the bottom channel of the

inside of the door and the sheet. Do the same at the top,

overlapping in the centre behind the padbolt.

If you have a locking ‘T’ handle you will have to run the

‘Z’s the opposite way to the diagram.

3. Rivet the ‘Z’s at the ends, and in the centre of the channel

it is tucked under, and through the overlap in the centre.

Two or three more rivets will be required through the door

sheeting into the ‘Z’, but they will need to be riveted through

from the outside of the door for a neater appearance.

4. You may need to cut or bend the flange at the bottom

and the top of the ‘Z’ if it catches on the door jamb when

opening or closing (diagram 5).

DIAGRAM 5

before

after

ABOVE

Z door braces in position on

the inside of door sheet

door with padbolt Locking T handle

YOU WILL NEED:

Rivets as supplied

2 x ‘Z’ Door braces

If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

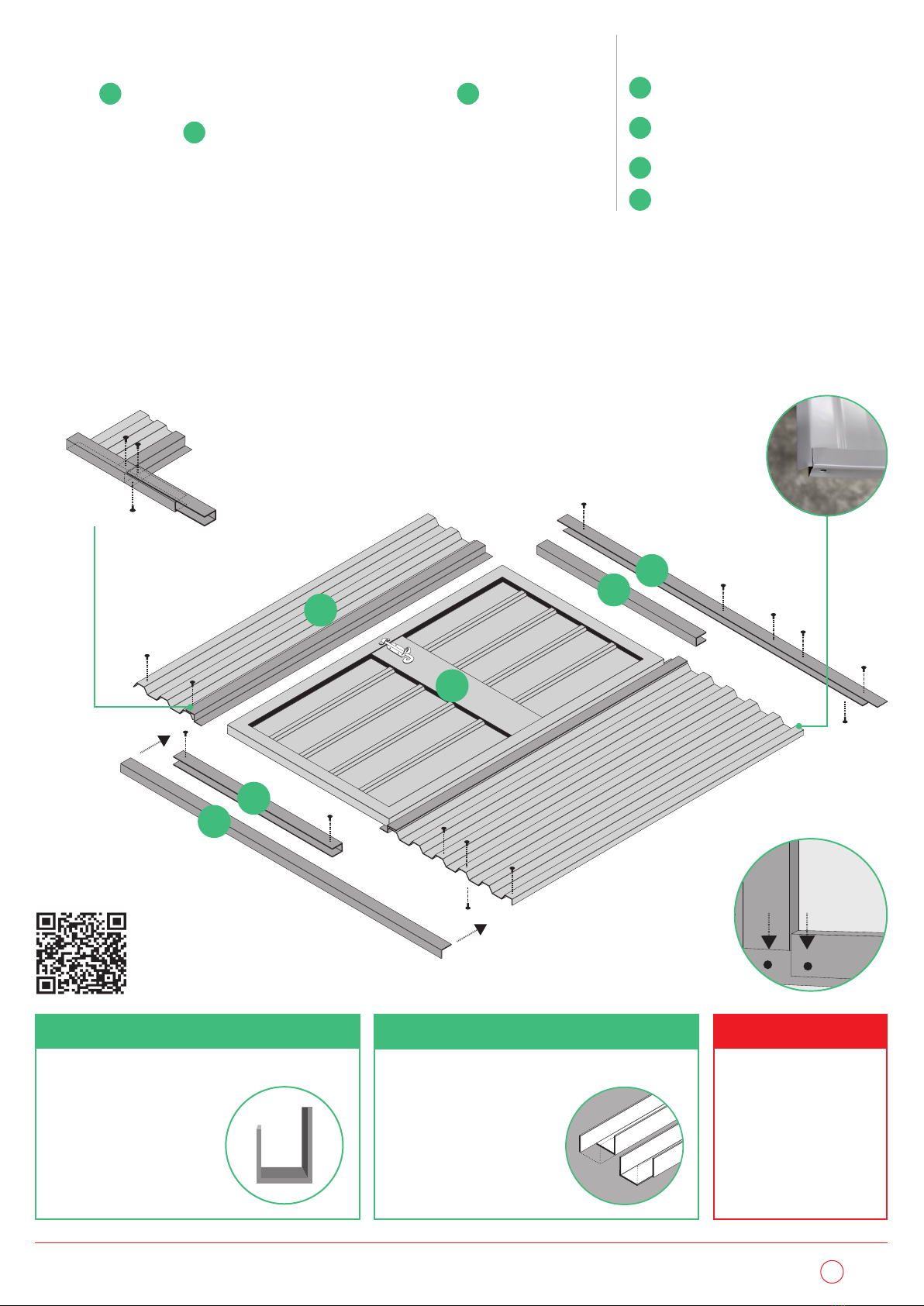

STEP 5: FRONT WALL

1. Slip

290mm wide sheet with door jamb under door. Use

door spacer to

determine the correct opening size by placing on the bottom flange of the door

jambs. Then rivet

channels to tops and bottoms of sheeting.

2. Outside: Rivet channel at corners and every 2nd rib between and through door

jambs and spacer.

3. Inside: One rivet per sheet at each end up through channel underside and

through door jambs and spacer.

Rivet padbolt to the outside of door using wide flange rivets supplied.

(We recommend you use an 8mm shackle diameter padlock on these pad bolts,

anything smaller may create security issues.)

A Drill and rivet here.

B Drill through to the underside.

Rivet top and underside.

A B

Channels will come

short of the ends of the

sheeting by 10-15mm on

all panels.

To hinge the door on the

opposite side, put the top

channel on the bottom and

the bottom on the top.

Put the padbolt on the

door before erecting the

panels. It will stop the door

swinging around!

GARDEN MASTER TIP

The higher side of the channel

goes to the inside of the shed.

It is very important to include

the rivets on the underside

of all the channels as they

are structural.

FITTING CHANNELS

INSIDE

OUTSIDE

The cutouts go to the inside of

the panel to allow easy fitment

of the end walls on assembly.

Note top and bottom channels

have different cutouts!

CHANNELS WITH CUTOUTS

TOP

CHANNEL

BOTTOM

CHANNEL

WATCH OUR

SHED ASSEMBLY

VIDEO GUIDE

HERE

YOU WILL NEED:

1 x 290mm wide sheet with door

jamb attached

Door pre-hinged to 740mm sheet

with door jamb

1 x 1815mm top channel

1 x 1815mm bottom channel

2 x 793mm door spacers

SPACERCHANNEL

Fix through the top and bottom of

the channels into the door jamb

and spacer. The door jamb goes on

inside of the channel.

6If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

DIAGRAM 6

DIAGRAM 7

DIAGRAM 8

L FLASHING

Rivet through the side of

the ‘L’ flashing to secure the

roof to the side of the shed.

DIAGRAM 9

Use the handle end of a hammer in the

inside of the corner, but beware of drilling

holes on the end of your hammer!

GARDEN MASTER TIP

BUILDING YOUR SHED

The basic task is to join the sheets together

to form your panels, then rivet the channels

to the top and bottom of these panels. They

will then join together to form your shed

(diagram 6, 7, 8 and 9).

STEP 6: INSTALLATION

WALL ASSEMBLY

Stand up the back wall and as your helping hand is holding it up, bring the left end wall

in to meet it at the left corner (diagram 6) overlapping the corners (diagram 7).

Drill and rivet at approximately 50mm down from the top and up from the bottom,

drilling and riveting from the outside.

Bring the right end wall into the right back corner and perform the same again, checking

to make sure the walls are sitting flat at the bottom. Bring the front wall into place and

join the front corners to the end walls, same as the back (diagram 8).

Finish joining the corners by riveting at approximately 200-300mm apart. You will find

it easier to drill these corners if they are supported on the inside (see tip).

FIXING THE ROOF

With a person at each end of the roof panel, lift it over the top of your upright walls and

lower down on top. Once the roof is sitting on top of the walls and the roof panel has a

minimum of 50mm overhang from the back wall, drill, and rivet through the L flashing

at each end of the roof. Drill and rivet 150mm from the front or back wall as shown in

diagram 9.

A larger amount of overhang is required on the high side of the shed for weather

protection. Once you have located the roof panel you can then finish off riveting the

ends of the roof L’s at 300mm apart.

Using the ladder and the tape measure, rivet down through

the top of the roof, through the pan into the top channel

of the front and the back walls (10mm more than the

overhang). Rivet beside every second rib. You will not need

to worry about these rivets leaking as any water seeping

through will end up on the outside of the walls.

Make sure to clean ALL swarf from your roof once you

have finished installing the roof panels. left over swarf

will cause surface rust spots on your shed.

If you need advice, call us FREE on 0800 807 433 or email us at info@gardenmastersheds.co.nz

If you choose to vary from these instructions your warranty will be impaired.

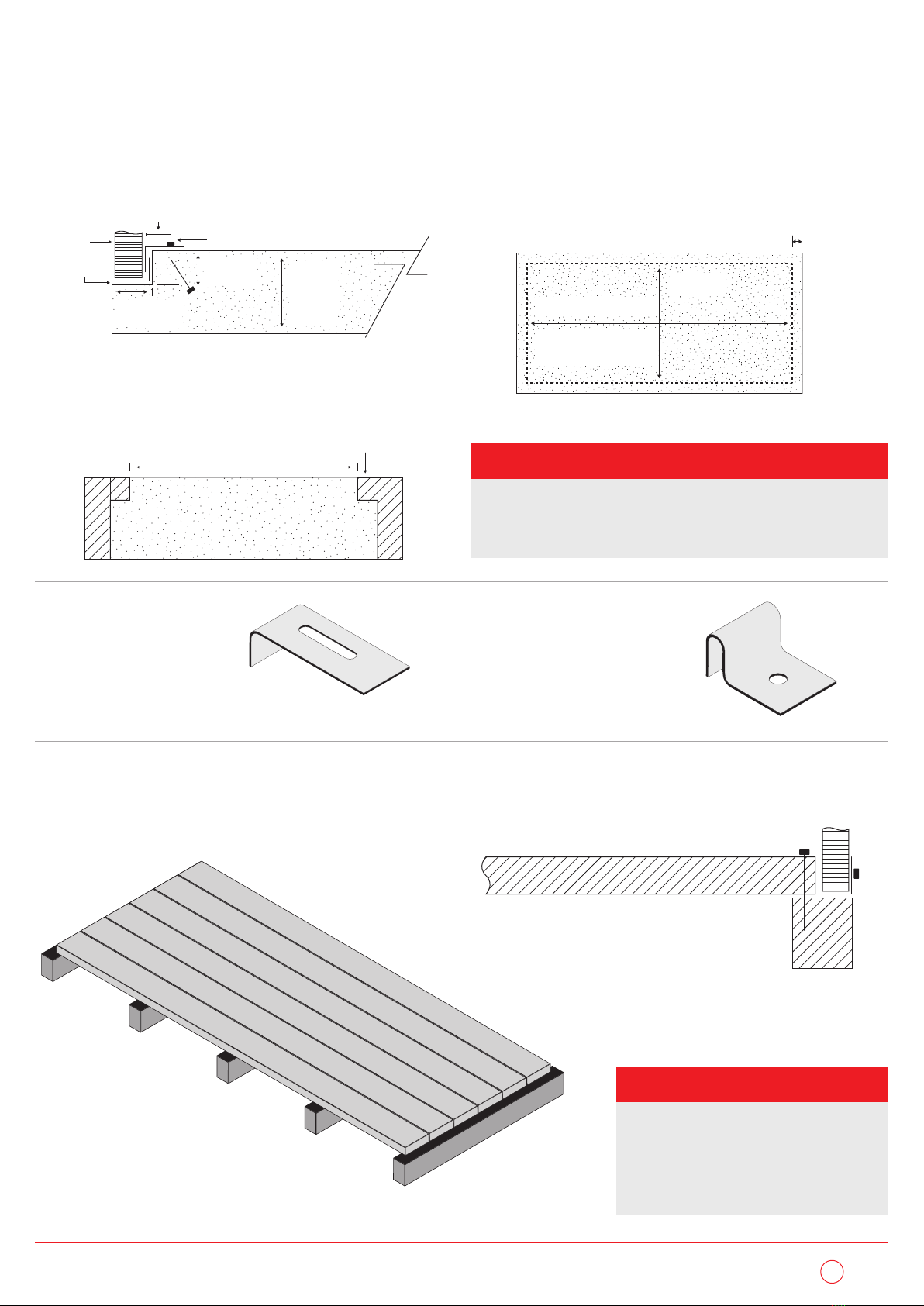

KITSET WOODEN FLOORS

Every shed must have a floor. These are available from your local shed dealer.

For more information visit www.gardenmastersheds.co.nz

FLAT FLOOR CLAMPS

For existing concrete only.

Water can seep underneath.

Available from your local

shed dealer.

BOXING DIAGRAM 20MM - 25MM

(1 ' X 1 ')

INTERNAL DIMENSIONS

APPROX 25MM RECESS

AROUND THE OUTSIDE 25MM

1785MM

INTERNAL

MEASUREMENT

1785MM

RUNNER

SHED

FLOOR BOARD

SHED

RECESS

20MM - 25MM

8MM BOLT SET INTO CONCRETE

100MM

25MM

APPROX

20MM - 25MM

1785MM X 1785MM

INTERNAL DIMENSIONS FOR THE GM1818

STEP 7: COMPLETE YOUR SHED

RECESSED CONCRETE FLOOR PLAN FOR SPECIALLY

POURED CONCRETE FLOORS: SPECIFICATIONS

Every shed must have some type of foundation between it and the ground. You can pour a concrete floor and use recessed floor

clamps, use an existing concrete base with flat floor clamps or purchase a kitset wooden floor from your local shed dealer.

RECESSED FLOOR CLAMPS

For poured floors with a

recess around the perimeter.

Available from your local

shed dealer.

For extra protection in high wind areas

put additional nails through the wall

channels into the floor boards and also

peg the shed bearers to the ground.

GARDEN MASTER TIP

WE’D REALLY LIKE YOUR FEEDBACK!

Customer satisfaction is our top priority and we are always on the look out for ways to do better.

Please email your comments to feedback@gardenmastersheds.co.nz

Free gift

To receive your free gift, simply include your contact details when you send in your feedback, or you can send us a photo of

your finished shed with your details.

To help you we have listed some questions that you may like to answer:

There is no need to type every question, only the question number and your answers

are necessary for us.

1. How did you find out about us?

2. If you found us through our website, was it easy to navigate?

3. Did you find the assembly instructions and the online assembly videos easy to follow?

4. Where did you purchase your shed?

5. Was the sales person helpful and courteous?

6. What did you like best about your garden shed purchase?

7. Are there any parts of our service that you think we could improve upon?

Thanks for your help!

GARDEN MASTER SHED OPTIONAL EXTRAS

IMPORTANT: FIXING YOUR SHED

TO ITS FOUNDATIONS

If your foundations are unlevel or bowed, you will have problems with your padbolt and door

levels. This can be fixed by slipping a spade under either door jamb and lifting. You will soon

get a feel for which side needs propping up.

• Do not attempt to assemble panels in rain or windy conditions.

• Make sure your foundations are squared and level before erecting panels.

• It is easier to remove all swarf (filings) before you stand your walls up.

• Complete all panels before erecting your shed.

• Keep a firm grip on panels when handling. If they slip they will cause damage.

• Always wear non-slip gloves, protective footwear and eyewear.

It is essential that every shed has a floor, but the only way to make sure your shed is there to

stay on windy sites is with a recessed concrete floor. Phone 0800 807 433 for free advice or

see page 7 for more details.

1. SHELVING

(GMSH)

Hangs from the wall to allow

maximum use of valuable floor

space. Includes 3 x ply shelves,

1200mm x 300mm.

2. BRUNS TOOL RACKS

(SB6.10A OR SB4.05A)

Choose from the 1m rail and 6

tool grips or the 0.5m rail with 4

tool grips (or both) to help keep

your tools off the floor.

3. SHED CORNER

PROTECTORS (GMSCP)

Protect your shed from knocks

by mowers, bikes etc. with a set

of corner protectors. Folded

from 0.9mm high tensile steel

these clip on corners look great

and help to protect your shed!

4. HOOKS

(GMTH)

Perfect for hanging ropes, leads

hoses on a single hooh or use

a pair to hold up a ladder or

weedeater etc. These handy

hooks come in a set of four and

fit over the front or back walls

under the ribs in the roof sheets

Table of contents

Other GARDEN MASTER Outdoor Storage manuals

GARDEN MASTER

GARDEN MASTER GM3015 User manual

GARDEN MASTER

GARDEN MASTER GM2323 User manual

GARDEN MASTER

GARDEN MASTER GM1508 User manual

GARDEN MASTER

GARDEN MASTER GM1818 User manual

GARDEN MASTER

GARDEN MASTER GM3830 User manual

GARDEN MASTER

GARDEN MASTER GM3023 User manual

GARDEN MASTER

GARDEN MASTER GM2315 User manual

GARDEN MASTER

GARDEN MASTER GM1815 User manual

GARDEN MASTER

GARDEN MASTER GM2318 User manual

GARDEN MASTER

GARDEN MASTER GM1515 User manual

GARDEN MASTER

GARDEN MASTER GM1811 User manual

GARDEN MASTER

GARDEN MASTER GM1511 User manual

GARDEN MASTER

GARDEN MASTER GM3823 User manual

GARDEN MASTER

GARDEN MASTER GM3023 User manual

GARDEN MASTER

GARDEN MASTER GM3815 User manual

GARDEN MASTER

GARDEN MASTER GM3818 User manual

GARDEN MASTER

GARDEN MASTER GM3838 User manual

GARDEN MASTER

GARDEN MASTER GM1818 User manual

GARDEN MASTER

GARDEN MASTER GM1511 User manual

GARDEN MASTER

GARDEN MASTER GM3011 User manual

GARDEN MASTER

GARDEN MASTER GM1811 User manual

GARDEN MASTER

GARDEN MASTER GM3018 User manual

GARDEN MASTER

GARDEN MASTER GM2308 User manual

GARDEN MASTER

GARDEN MASTER GM3815 User manual

Popular Outdoor Storage manuals by other brands

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus owner's manual

TYGO

TYGO Nyland Building Instruction

Duratuf

Duratuf GL105 Assembly instructions

Viking

Viking SD5300SS Use & installation guide

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 owner's manual

ModuLaro

ModuLaro Lojo WC202200 manual

Lifetime

Lifetime 6418 owner's manual

rollaway container

rollaway container ARPCA24 manual

Duratuf

Duratuf Havelock Assembly instructions

X-METAL

X-METAL 4065 owner's manual

Outdoor Life Products

Outdoor Life Products FP2030 F Assembly instructions

Royalcraft

Royalcraft Faro 295L Storage Box Assembly instructions

Riverlea

Riverlea Duratuf KIWI KS3 Assembly instructions

OLT

OLT GS84D-FJ-Plywood Assembly manual

Rubbermaid

Rubbermaid 5L45 manual

garofalo

garofalo TUSCANY EVO user manual

Duratuf

Duratuf Kiwi MK1 Assembly instructions

Eden

Eden CA2988 Assembly instructions
