FLAMEN SIGMA Series User manual

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Installation and operation instructions for fireplace inserts

FLAMEN –SIGMA and KAPPA series

Certificate of warranty

During transport and manipulation of the fireplace inserts

SIGMA, the counterweight is locked in its upper position. The

lock needs to be released before installation, for the inspection

of the fire place insert and its putting into operation. Instructions for releasing the

lock are given in chapter Operation of the fireplace insert.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Thank you for buying the fireplace insert made by FLAMEN. We believe that the

fireplace insert will bring you many pleasant moments.The fireplace inserts made by

FLAMEN - SIGMA and KAPPA series are equipped with:

- Corner bent glass or front decorated frameless glass screen

- Corner bent glass or front glass with design frame

- Vertical sliding and horizontal opening –SIGMA

- Horizontal opening –KAPPA

- Possibility of external air nozzle

- Modern simple design with stainless steel handle and the only control lever

- Elegant cladding from LacFire with a 4-year guarantee, heat accumulation for

efficient and clean wood burning

- Cover frame 4x45°

- Support and rectifying screws

- High quality maintenance-free and silent cable slide of the fire door

- With FLAMclean system for clean glass and low emissions

- Combustion chamber completely sealed

- With a grate and an ash pan

- Quality manufacturing

- 10-year guarantee on the fireplace body

- Certified according to ČSN EN 13229/A2 (Europe), 15a B-VG (Austria), BlmSchV

Stufe II (Germany)

- Accessories: Hot-air exchanger, electronic regulation Timpex and Plum

We would like to thank you for your purchase again and we wish you many pleasant

moments with the fireplace FLAMEN.

With passion for fire team of FLAMEN

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Table of contents

Technical description of the fireplace insert ................................................................................4

Description of the main parts ..................................................................................................4

Description of operating elements: .........................................................................................4

Main materials used ................................................................................................................4

Fireplace Accessories .............................................................................................................10

Spare parts.............................................................................................................................10

Technical parameters.................................................................................................................12

Table with technical parameters............................................................................................13

Fireplace insert installation ........................................................................................................14

Installation .............................................................................................................................14

Chimney.................................................................................................................................15

Air supply for combustion......................................................................................................16

Fireplace surround .................................................................................................................20

Combustible ceiling in the area of the surround....................................................................23

Connection of hot-air distribution .........................................................................................23

Safety precautions .....................................................................................................................23

Fireplace insert operation ..........................................................................................................25

Releasing the counterweight lock ..........................................................................................25

Instructions for putting the fireplace insert into operation ...................................................25

Putting the fireplace insert into operation.............................................................................26

Adding fuel.............................................................................................................................28

Maintaining the fire in the fireplace ......................................................................................29

Adjusting the amount of air for combustion..........................................................................29

Fireplace cleaning ..................................................................................................................29

Fuel ........................................................................................................................................33

Mechanical parts....................................................................................................................33

Information ................................................................................................................................34

Waste disposal.......................................................................................................................34

Warranty terms and conditions .................................................................................................35

Certificate of warranty ...............................................................................................................37

List of repairs .........................................................................................................................38

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Technical description of the fireplace insert

Description of the main parts

The fireplace insert consists of a plinth which is fitted with rectifying screws to level

the fireplace insert into horizontal position. In the bottom part, there is an air-supply

box for combustion. This box enables to connect the air for combustion from another

room or exterior through flexible pipe. The bottom of the hearth serves for the

distribution of primary, secondary and tertiary air. In the bottom, there is also an ash

chamber with an ashpan. The hearth is lined with LacFire refractory concrete shaped

pieces. The hearth body is made from steel sheet, with the thickness of 3 or 4 mm. The

hearth area is closed by fireplace door which is made from heat-resistance ceramic

glass. The door is equipped with a seal. In the upper part of the hearth, there is a set of

deflectors for the regulation of the flue gas flow. These can also be used for the

regulation of draught with which flue gases are exhausted into the chimney. Flue gases

escape through a hub with the diameter of 160 mm which serves for the connection of

the flue pipe. The door, type SIGMA, enables horizontal movement. The door is led in

two rails and with four pairs of rollers. It is balanced with a counterweight connected

to the door with a stainless wire strand. After the door is arrested, it can also be

opened horizontally, e.g. for its cleaning.

Description of operating elements:

Operation of the fireplace insert is ensured by the following operating elements:

Handle –enables vertical movement of the door

Door stay –arrests the door for its horizontal opening or unhanging

Catch –enables horizontal opening of the door

Air-supply controller for burning –regulates the amount of air for burning and glass

rinsing.

The use of all operating elements is described in chapter Operation of the Fireplace

insert.

Main materials used

Fireplace inserts FLAMEN are made only from quality materials. The body of the

fireplace insert is made from steel sheet, with the thickness of 3 or 4 mm. The hearth,

including grate, is lined with a special accumulative refractory concrete LacFire.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

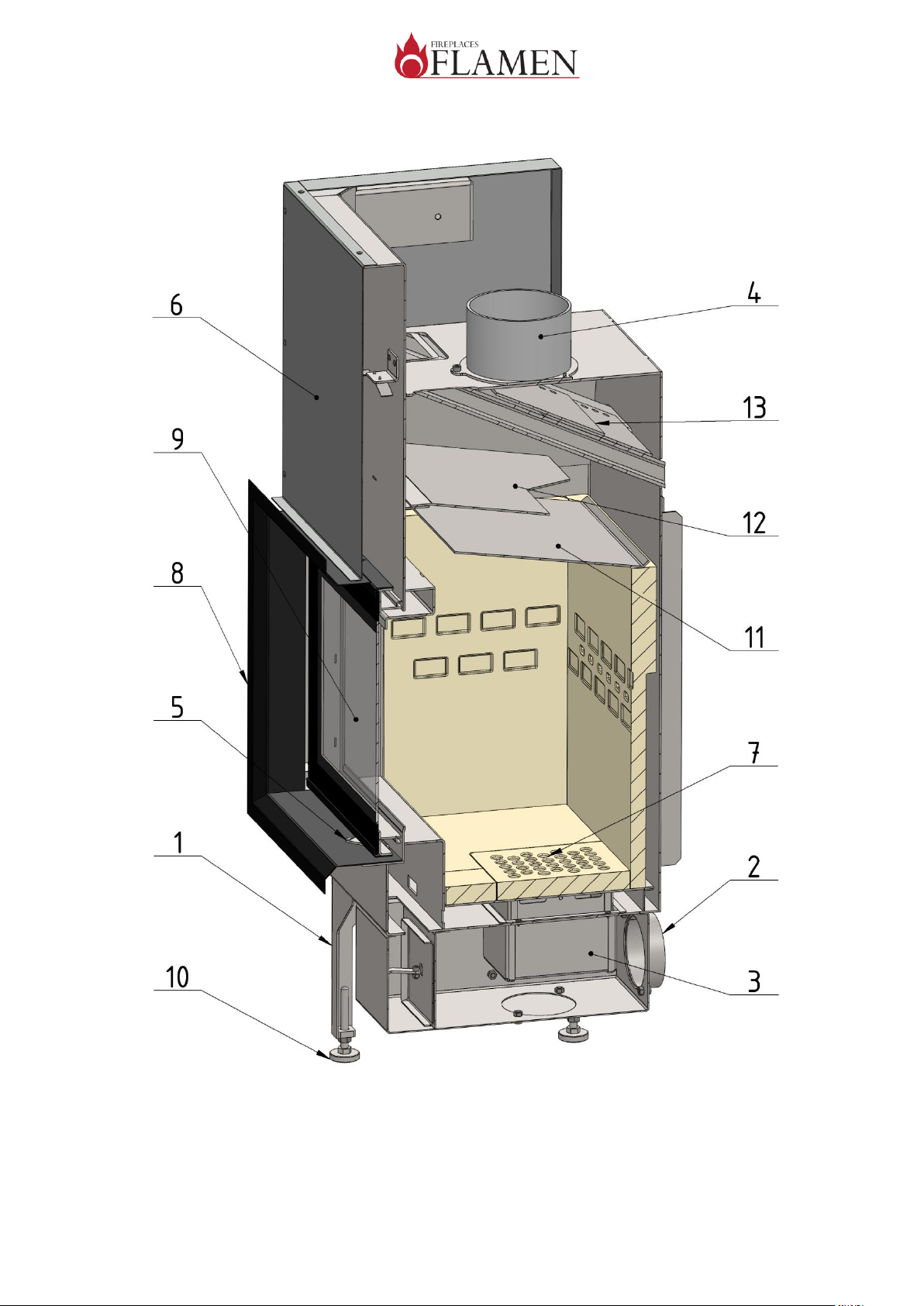

Picture No. 1. Cross-sectional view of the fireplace insert.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Legend to picture No. 1:

1 Plinth

2 Flange for connecting outside air

3 Ashpan

4 Hub for flue gas outlet

5 Air-supply regulation

6 Slide cover

7 Grate

8 Cover frame

9 Glass

10 Height-adjustable leg

11 Bottom deflector

12 Upper deflector

13 Exchanger deflector

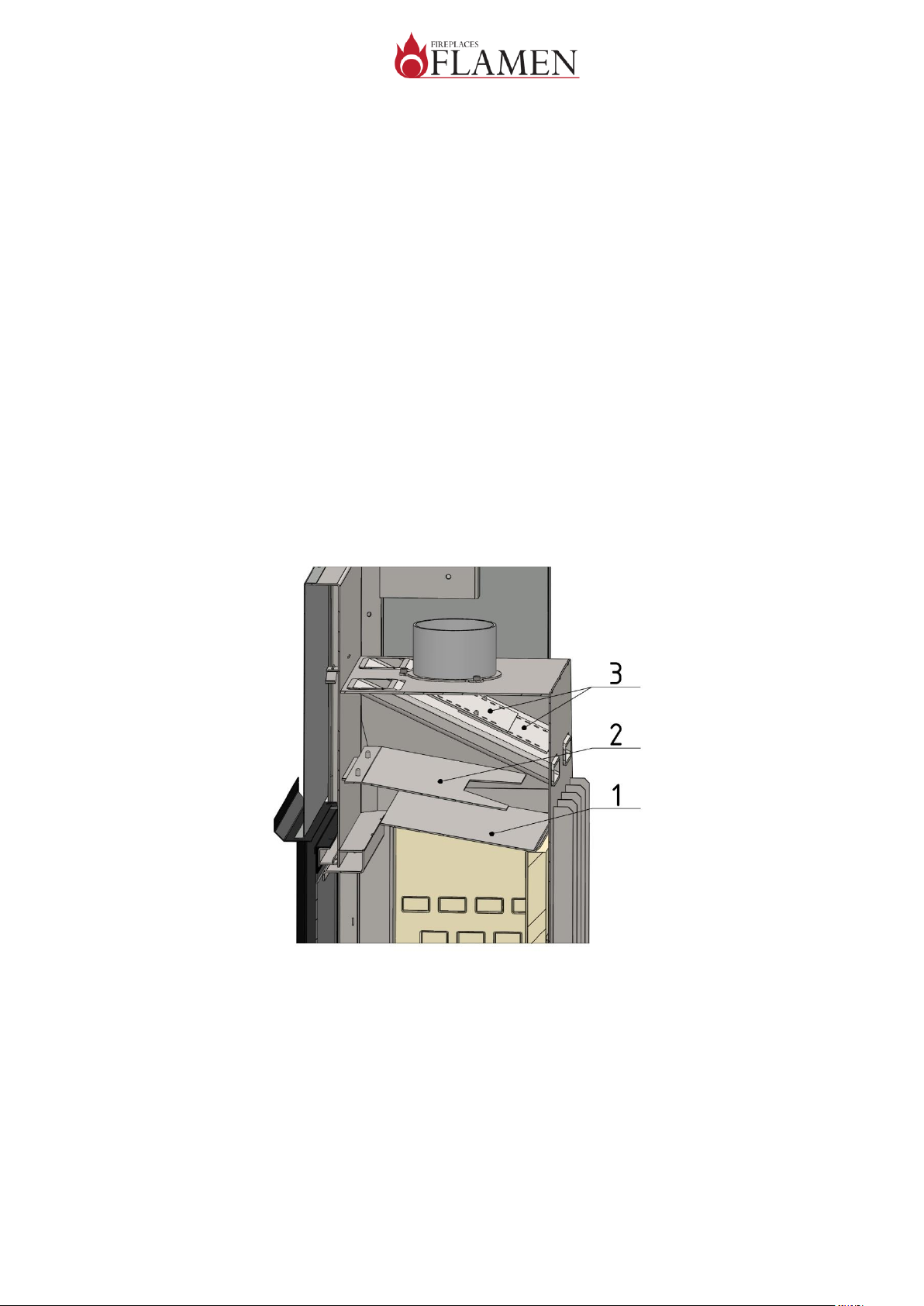

Picture No. 2. View of the set of deflectors.

Legend to picture No. 2:

1 Bottom deflector

2 Upper deflector

3 Exchanger deflectors

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

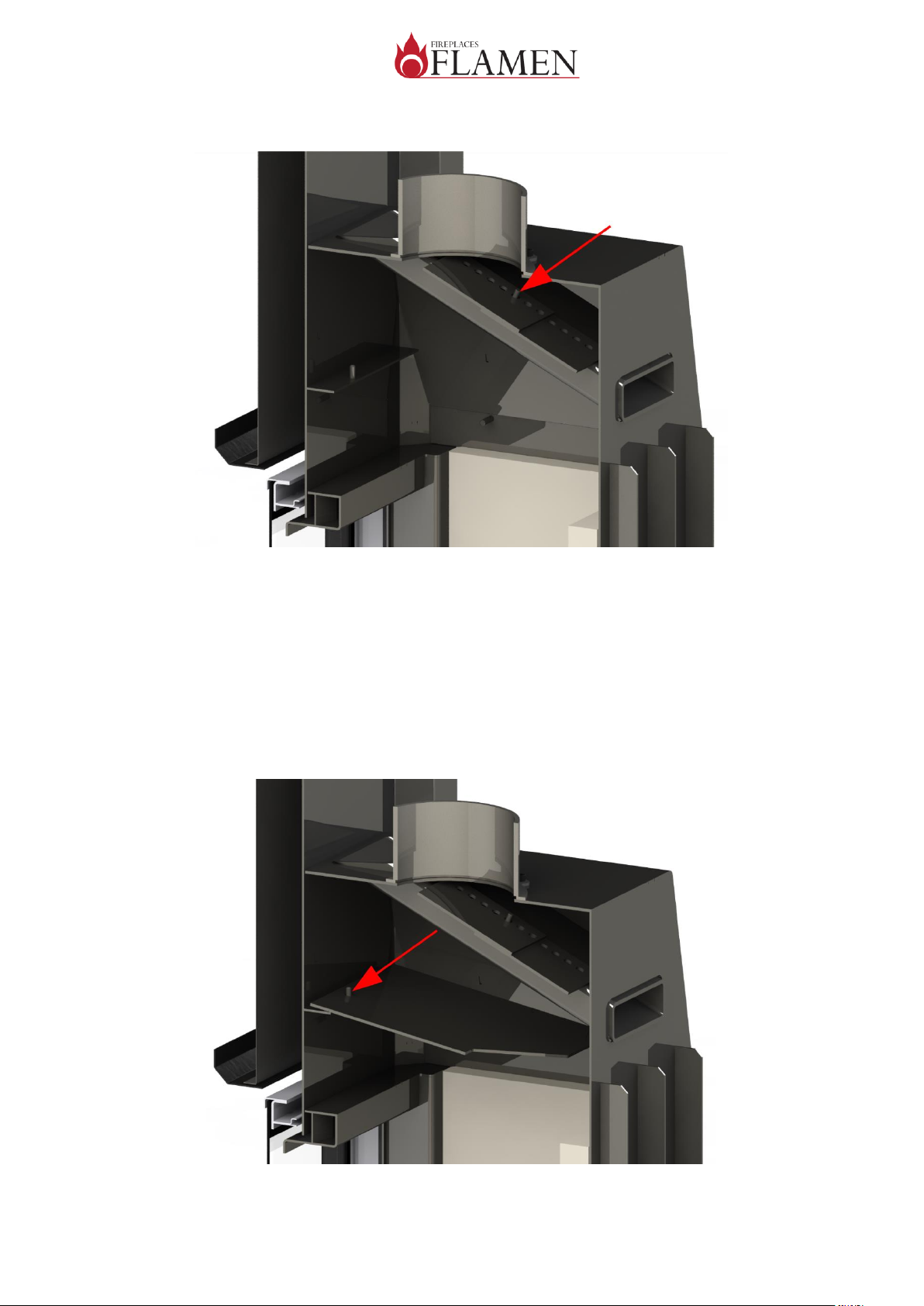

Picture No. 2A. Assembly of the Exchanger deflectors.

Firstly install the exchanger deflectors. Install these deflectors before connection to

the flue line! Place the deflectors on the top of the hot-air exchangers (rectangular

tubes). Position is secured by bolts (see pic. 2A) which fit to the holes at the sides of

the deflector. Positions of these deflectors can regulate the chimney draught. The

position can be either fully closed or slightly open. If necessary, this deflector can be

disassembled to increase the chimney draught (leads to a slight loss of efficiency).

Picture No. 2B. Assembly of the Upper deflector.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Now assemble the upper deflector –see pic. 2B. This deflector has got two holes which

has to be put onto two bolts placed at the front side of the insert.

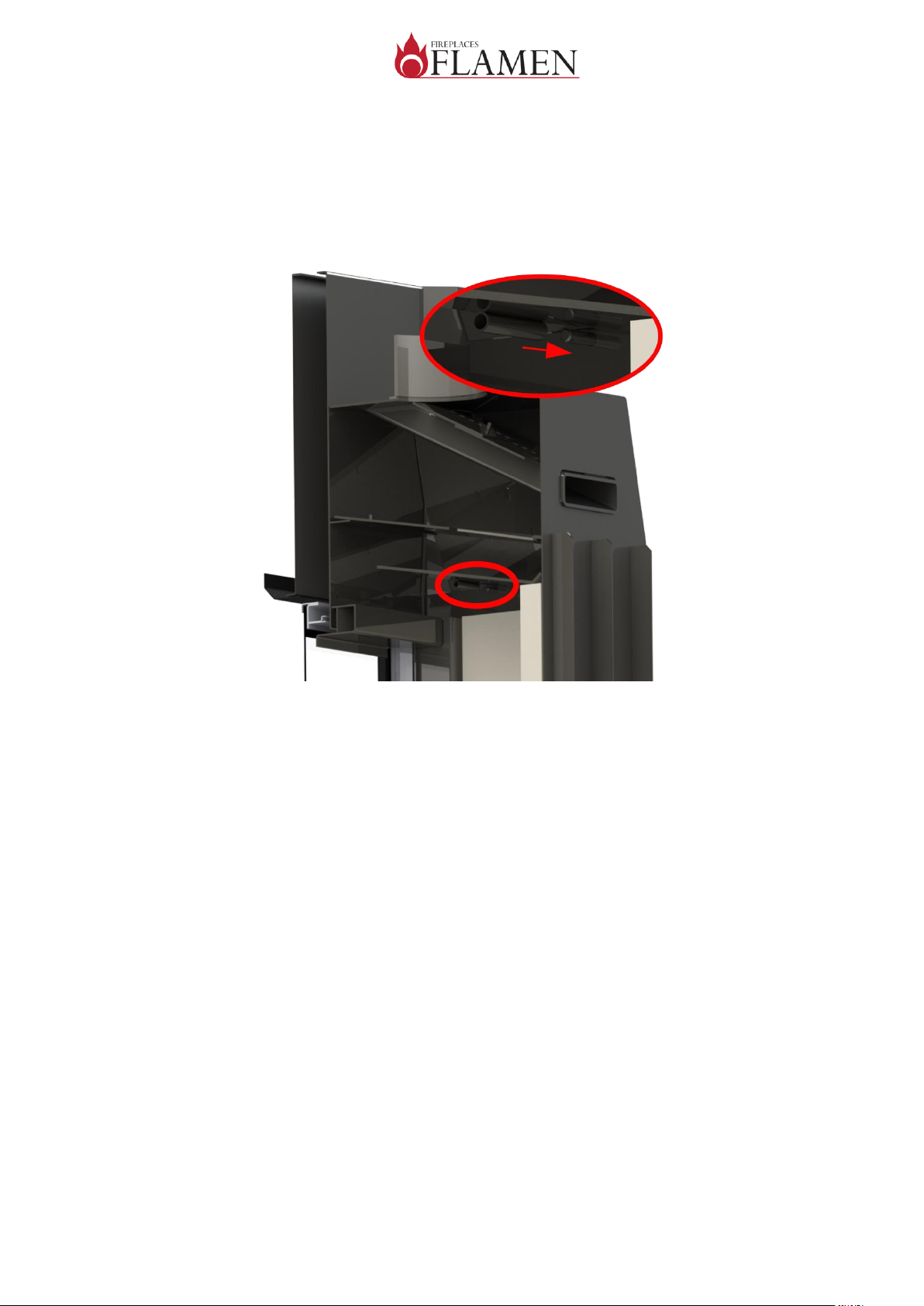

Picture No. 2C. Assembly of the Bottom deflector.

Put this deflecor into the insert. The rear bent edge of the deflector has to be put on

the top side of the rear cladding –see pic. 2C. Lift the front side of the deflector up and

insert the delivered tubes on to the bolts placed on the left and right side. After

inserting the tube put the defletor down, the defletor will be supported by the tubes.

Herewith, the assembly of deflectors is fully finished.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

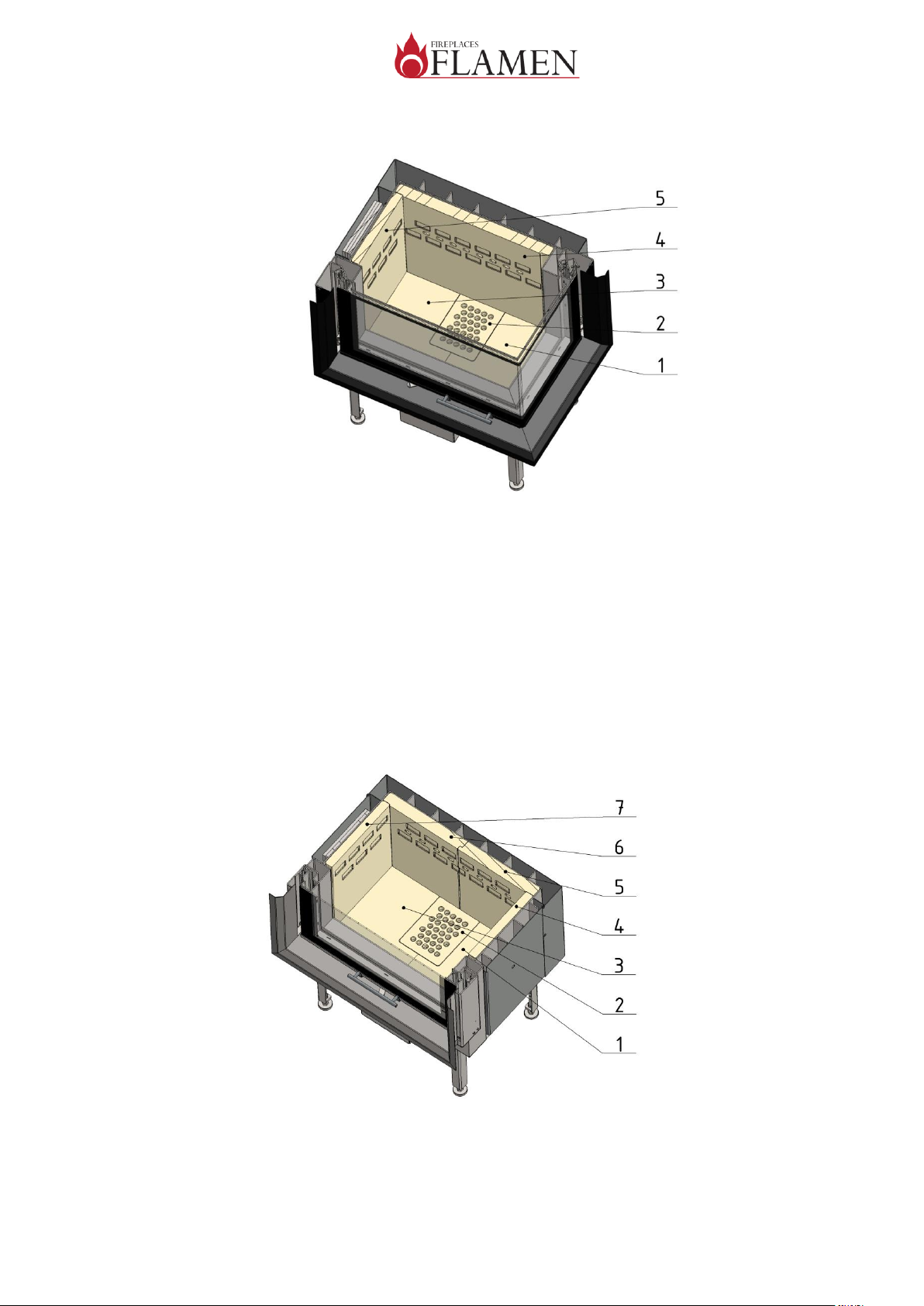

Picture No. 3A. View of the set of cladding –corner type.

Legend to picture No. 3A:

1 Right bottom

2 Grate

3 Left bottom

4 Back block

5 Side block

Picture No. 3B. View of the set of cladding –front type.

FLAMEN, s.r.o., Correspondence address: Svitavská 500/7, CZ-678 01 Blansko, Id No: 294 13 036, VAT Id No: CZ29413036

Seat: Holušická 2221/3, CZ-148 00 Praha 4, Entry in companies´ register: City court in Praha, section C, insert 204599

www.flamen.cz

Legend to picture No. 3B:

1 Right bottom

2 Grate

3 Left bottom

4 Right side block

5 Right back block

6 Left back block

7 Left side block

Surface finishing of metal parts, excluding the handle, with special colour which is

resistant up to 600°C; however it does not guarantee corrosion resistance in the

exterior environment with direct atmospheric effects or interior humid environment.

Surface finishing is suitable for interior, dry environment.

Fireplace Accessories

You can order following accessories for your fireplace insert:

-Electronic regulation Timpex and Plum

-Hot-air exchanger

-Walling cornice

-Glass cleaner

-Safety gloves

-Fire lighters

-All material necessary for fireplace surrounds, the complete offer of which can

be found on www.flamen.cz.

Spare parts

You can order following spare parts for you fireplace insert:

-Complete sealing set

-Refractory concrete blocks, see picture No. 3

-Grate, see picture No. 3

-Deflectors, see picture No. 2

-Flat glass (models F)

-Bent glass (models R, L)
