Elkay LRAD User manual

Cutout in

Countertop No. of 31/2"

U-Channel Quick-Clip®Overall Inside Bowl (11/2" Radius 11/2" Dia. Drain Opening Minimum Ship.

Model Model L W L W D Corners) Faucet Holes (see back Cabinet Wt.

Number Number A B C D E L W 4" Center for details) Size Lbs.

LRAD1316 LRADQ1316 13 16 10 10 ** 123/8153/81, 2, MR2 or 3 Centered 18 91/2

LRAD1517 LRADQ1517 15 171/212 12 ** 143/8167/81, 2, MR2 or 3 Centered 18 93/4

LRAD1522 LRADQ1522 15 22 111/216 ** 143/8213/81, 2, MR2 or 3 Off-Centered Rear 18 12

LRAD1716 LRADQ1716 17 16 14 10 ** 163/8153/81, 2, MR2, 3 or OS4 Centered 21 81/2

LRAD1720 LRADQ1720 17 20 14 14 ** 163/8193/81, 2, MR2, 3 or OS4 Off-Centered Rear 21 12

LRAD1722 LRADQ1722 17 22 131/216 ** 163/8213/81, 2, MR2, 3 or OS4 Off-Centered Rear 21 13

LRAD1918 LRADQ1918 19 18 16 111/2** 183/8173/81, 2, MR2, 3 or OS4 Off-Centered Rear 24 101/2

LRAD1918L LRADQ1918L 19 18 16 111/2** 183/8173/81, 2, MR2, 3 or OS4 Off-Centered Left 24 101/2

LRAD1918R LRADQ1918R 19 18 16 111/2** 183/8173/81, 2, MR2, 3 or OS4 Off-Centered Right 24 101/2

LRAD1919 LRADQ1919 191/219 16 131/2** 187/8183/81, 2, MR2, 3 or OS4 Off-Centered Rear 24 13

LRAD2022 LRADQ2022 191/222 16 16 ** 187/8213/81, 2, MR2, 3 or OS4 Off-Centered Rear 24 141/2

LRAD2219 LRADQ2219 22 191/218 14 ** 213/8187/81, 2, MR2, 3, 4 or 5 Off-Centered Rear 27 13

LRAD2219L LRADQ2219L 22 191/218 14 ** 213/8187/81, 2, MR2, 3, 4 or 5 Off-Centered Left 27 13

LRAD2219R LRADQ2219R 22 191/218 14 ** 213/8187/81, 2, MR2, 3, 4 or 5 Off-Centered Right 27 13

LRAD2222 LRADQ2222 22 22 19 16 ** 213/8213/81, 2, MR2, 3, 4 or 5 Off-Centered Rear 27 14

LRAD2521 LRADQ2521 25 211/421 153/4** 243/8205/81, 2, MR2, 3, 4 or 5 Off-Centered Rear 30 15

LRAD2521L LRADQ2521L 25 211/421 153/4** 243/8205/81, 2, MR2, 3, 4 or 5 Off-Centered Left 30 15

LRAD2521R LRADQ2521R 25 211/421 153/4** 243/8205/81, 2, MR2, 3, 4 or 5 Off-Centered Right 30 15

LRAD3122 LRADQ3122 31 22 28 16 ** 303/8213/81, 2, MR2, 3, 4 or 5 Off-Centered Rear 36 19

GENERAL

Highest quality sink seamlessly formed of #18 gauge, type 304

(18-8) nickel bearing stainless steel. Self-rimming.

DESIGN FEATURES

LRAD(Q) Bowl Depth: 5-1/2", 6" or 6-1/2".

Coved Corners: 1-3/4" vertical and horizontal radius.

Bowl and Faucet Deck Recess: 3/16" below outside edge of sink.

Finish: Exposed surfaces are hand blended to a lustrous high-

lighted satin finish.

Underside: Fully undercoated to dampen sound and prevent

condensation.

OTHER

Drain Opening: 3-1/2" (see back for locations).

NOTE: Unless otherwise specified, models with one, two, three

or OS4 faucet hole option are furnished with 3 faucet holes as

shown; models with choice of one, two, three, four or five

faucet hole option are furnished with 4 faucet holes standard.

Elkay 2222 Camden Court

Oak Brook, IL 60523 Printed in U.S.A.

(Rev. 5/05) 1-135F

www.elkayusa.com

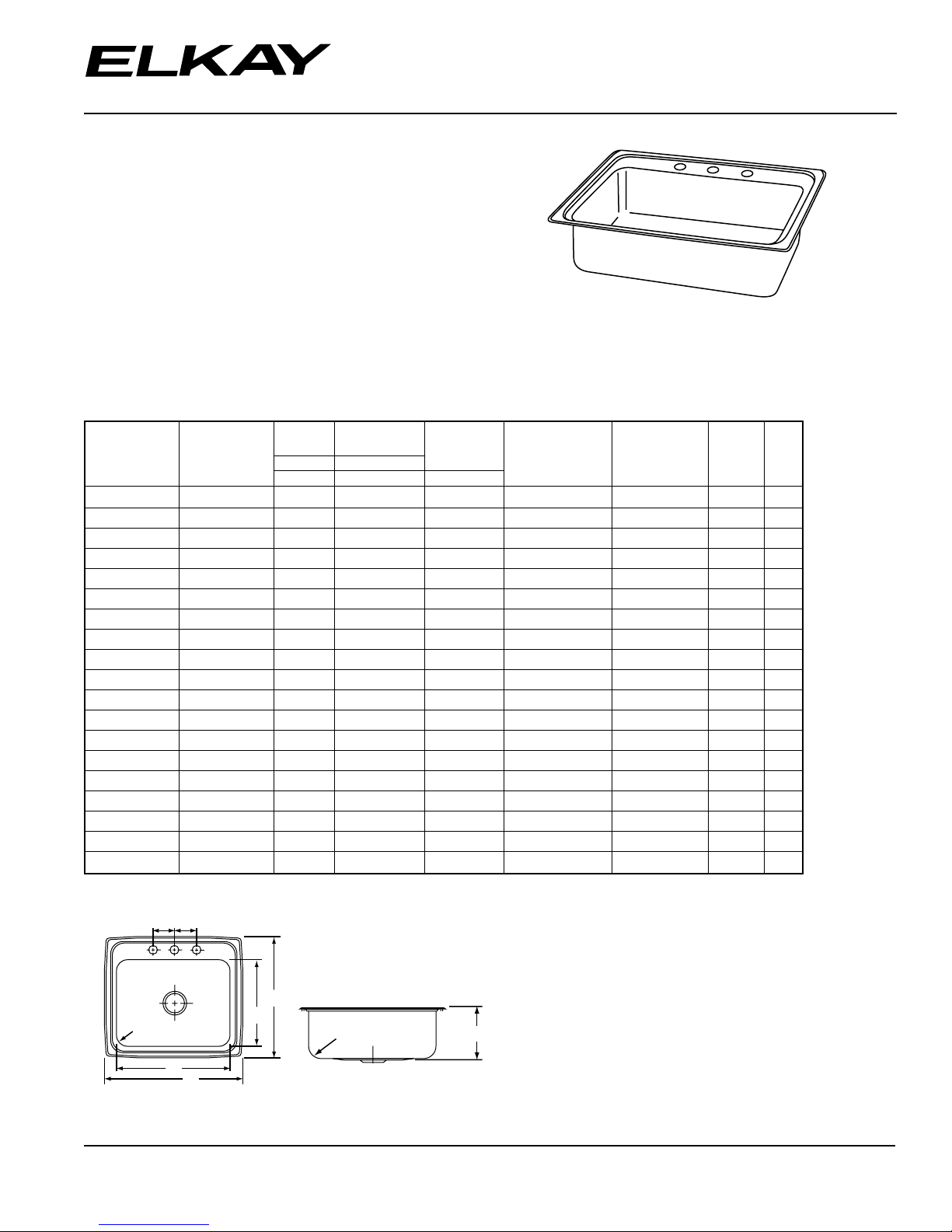

Model LRAD(Q)2521653

SINK DIMENSIONS (INCHES)*

Length is left to right. Width is front to back.

Available in 51/2", 6" and 61/2" depths. Please consult your sales representative for other depths or modifications.

Lustertone®Single Bowl Sink

Models LRAD and LRADQ Series – A.D.A. Compliant

SPECIFICATIONS

1-3/4" R

In keeping with our policy of continuing product improvement, Elkay reserves the right to change

product specifications without notice. This specification describes an Elkay product with design, quality and functional benefits to the

user. When making a comparison of other producers’ offerings, be certain these features are not

overlooked.

ALL DIMENSIONS IN INCHES, TO CONVERT

TO MILLIMETERS MULTIPLY BY 25.4.

THIS PRODUCT, AS CONSTRUCTED IS SUBJECT TO

INTERPRETATION OF A.D.A. REQUIREMENTS.

THE UNOBSTRUCTED KNEE SPACE REQUIRED TO

SATISFY A.D.A. STANDARDS MAY NOT BE DESIRABLE.

1-3/4"R E

Off-Centered Right

Off-Centered Left

Centered

5"†

Off-Centered Rear

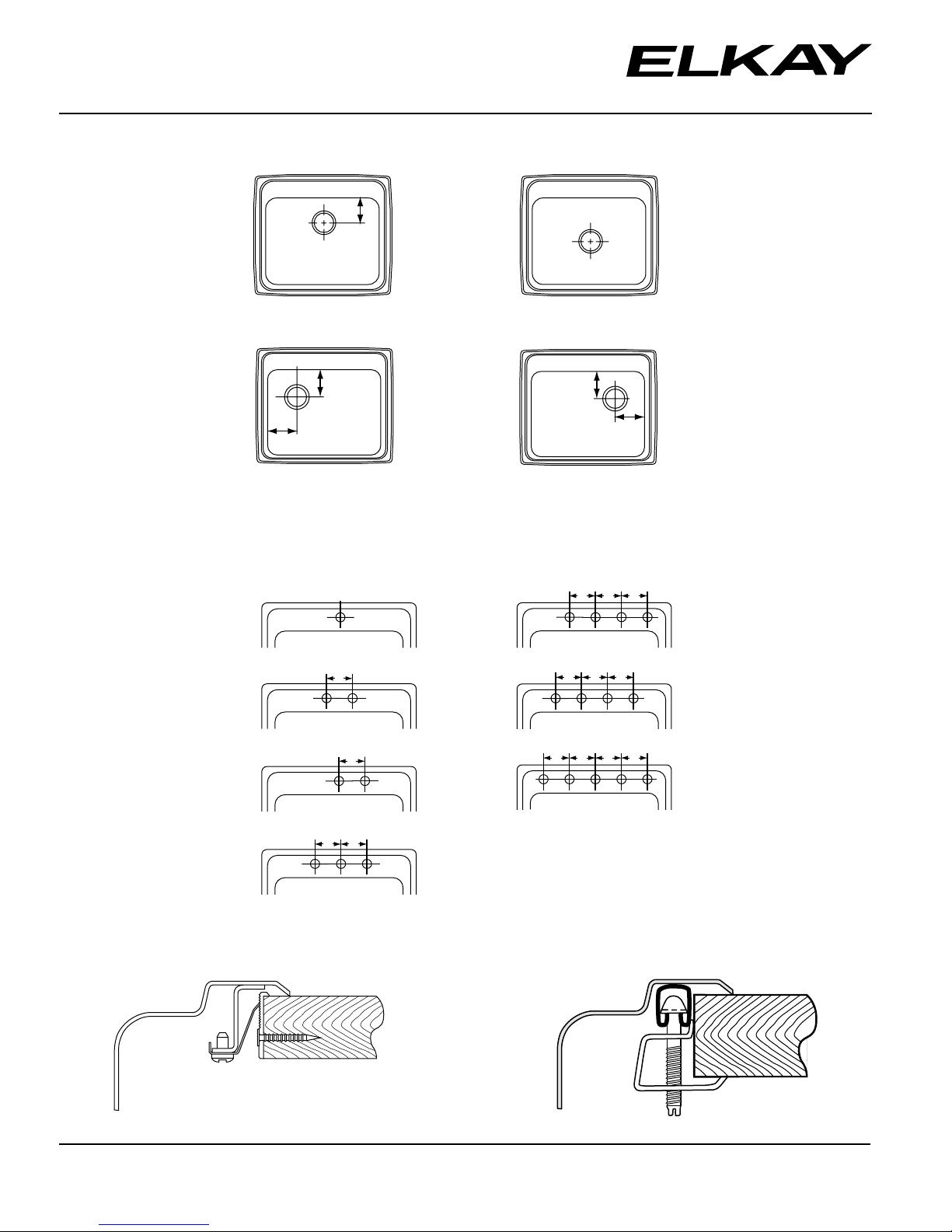

DRAIN OPENING LOCATIONS

†4-1/2" for LRAD(Q)1522

HOLE DRILLING CONFIGURATIONS

4" 4"

4" 4" 4"

4" 4" 4" 4"

MR2

OS4

Elkay 2222 Camden Court

Oak Brook, IL 60523

www.elkayusa.com

Printed in U.S.A.

1-135F (Rev. 5/05)

Lustertone®Single Bowl Sink

Models LRAD and LRADQ Series –A.D.A. Compliant

SPECIFICATIONS

Quick-Clip®Mounting System

U-Channel Type Mounting System
