EN WASHING MACHINE USER MANUAL

CONTENTS

1. SAFETY INFORMATION............................................................................................ 3

2. SAFETY INSTRUCTIONS.......................................................................................... 4

3. PRODUCT DESCRIPTION.........................................................................................5

4. CONTROL PANEL.....................................................................................................6

5. PROGRAMMES ....................................................................................................... 7

6. CONSUMPTION VALUES........................................................................................10

7. OPTIONS................................................................................................................ 11

8. SETTINGS...............................................................................................................13

9. BEFORE FIRST USE................................................................................................13

10. DAILY USE............................................................................................................ 14

11. HINTS AND TIPS...................................................................................................17

12. CARE AND CLEANING......................................................................................... 18

13. TROUBLESHOOTING........................................................................................... 22

14. TECHNICAL DATA................................................................................................ 24

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following

data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

2 www.electrolux.com

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep all packaging away from children.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Obey the maximum load volume of 6.5 kg (refer to the

“Programme chart” chapter).

•The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa).

•The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

ENGLISH 3

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not install or use a damaged

appliance.

• Obey the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Make sure that the floor where you

install the appliance is flat, stable, heat

resistant and clean.

• Do not install the appliance where the

appliance door can not be fully

opened.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

2.2 Electrical Connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Only for UK and Ireland: The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Use this appliance in a household only.

www.electrolux.com4

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

3. PRODUCT DESCRIPTION

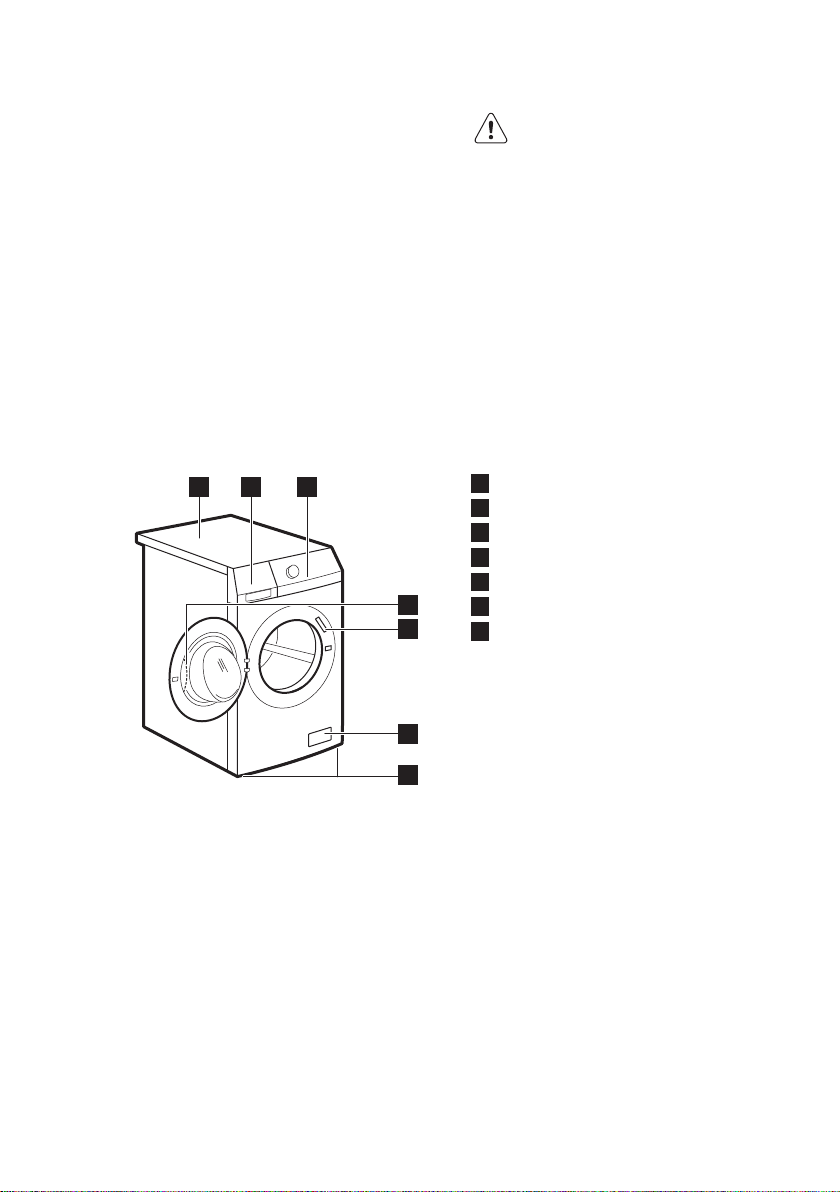

3.1 Appliance overview

1 2 3

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

3.2 Fixing plate kit (4055171146)

Available from your authorized dealer.

If you install the appliance on a plinth,

secure the appliance in the fixing plates.

Read carefully the instructions supplied

with the kit.

ENGLISH 5

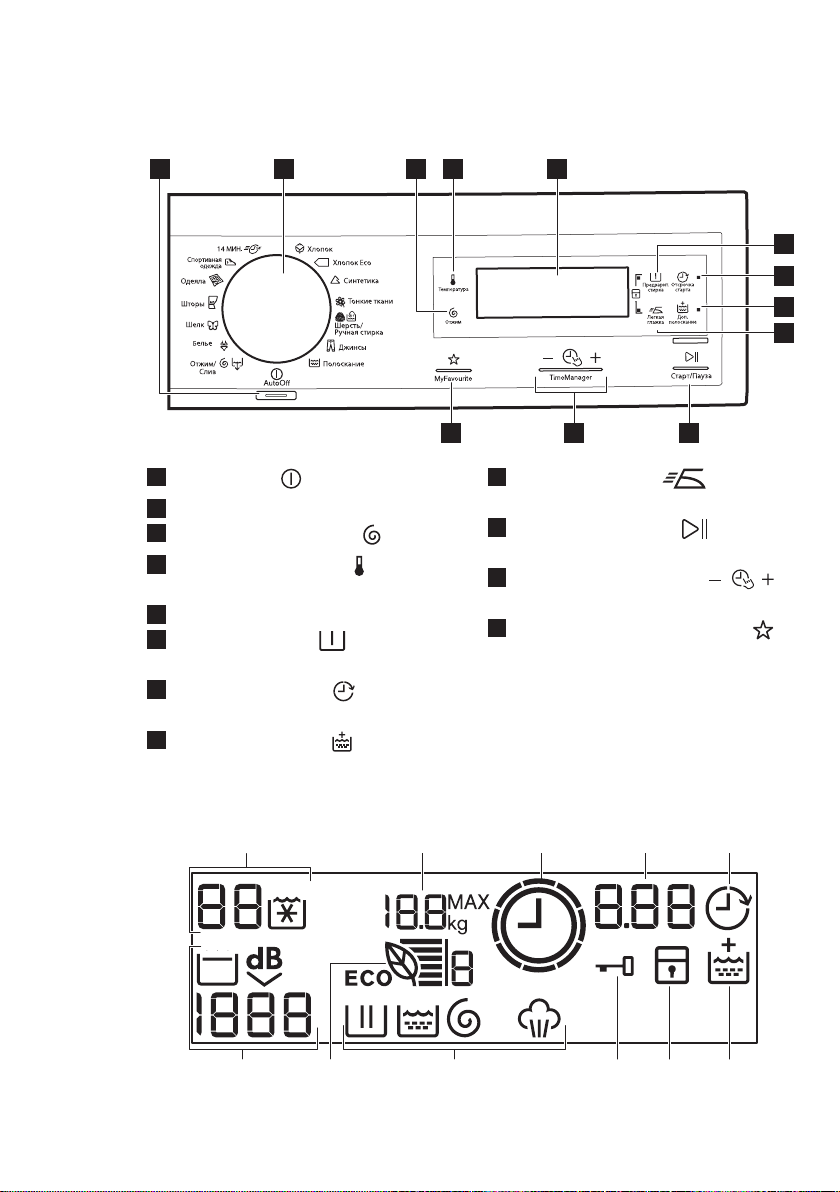

4. CONTROL PANEL

4.1 Control panel description

53 4

1012 11

1 2

1On Off button (AutoOff)

2Programme knob

3Spin reduction touchpad (Отжим)

4Temperature touchpad

(Температура)

5Display

6Prewash touchpad (Предварит.

стирка)

7Delay start touchpad (Oтсрочка

старта)

8Extra rinse touchpad (Доп.

полоскание)

9Easy iron touchpad (Легкая

глажка)

10 Start/Pause touchpad (Старт/

Пауза)

11 Time Manager touchpads

(Time Manager)

12 Favourite programme touchpad

(My favourites)

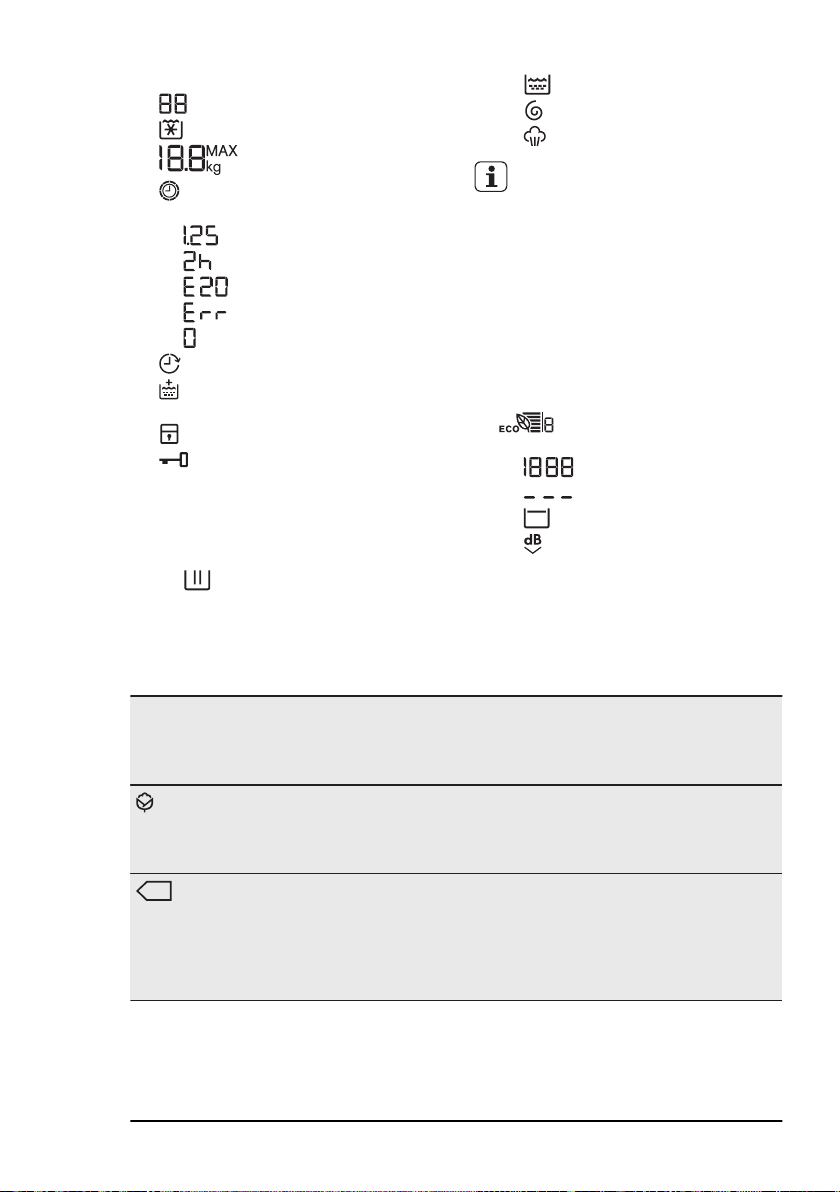

4.2 Display

A B C D E

FGHJ IK

www.electrolux.com6

A) The Temperature area:

: Temperature indicator

: Cold water indicator

B) : Maximum laundry load1

C) : Time Manager indicator

D) The time area:

•: The programme duration

• : The delay start

• : The alarm codes

• : The message of error

•: Programme is completed.

E) : The delay start indicator

F) : The permanent extra rinse

indicator

G) : The indicator of the child lock

H) : The door locked indicator

• You cannot open the appliance

door when the symbol is on.

• You can open the door only when

the symbol goes off.

I) Washing indicators:

• : The washing phase

• : The rinses phase

• : The spin phase

• : The steam phase

When a programme is

set, all the indicators of

the phases related to the

programme come on.

When the programme

starts, only the indicator

of the phase in operation

flashes. When a phase is

complete the indicator of

the phase remains on.

When the programme is

completed, the symbol of

the last phase is on.

J) : The Eco Info indicator

K) The spin area:

• : The spin speed indicator

• : The no spin indicator

• : The Rinse Hold indicator

• : The Extra Silent indicator

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature

range

Programme description

(Type of load and soil level)

Maximum load

Maximum spin speed

Хлопок

90°C - Cold

White cotton and coloured cotton. Normal soil and light soil.

6.5 kg

1200 rpm for model EWS 1277FDW; 1400 rpm for model EWS

1477FDW

Хлопок Eco1)

60° - 40° C

White cotton and colour-fast cotton. Normal soil. The energy

consumption decreases and the time of the washing programme

is extended.

6.5 kg

1200 rpm for model EWS 1277FDW; 1400 rpm for model EWS

1477FDW

1 Visible only when the door is open.

ENGLISH 7

Programme

Temperature

range

Programme description

(Type of load and soil level)

Maximum load

Maximum spin speed

Синтетика

60° - Cold

Synthetic items or mixed fabric items. Normal soil.

3 kg

1200 rpm for model EWS 1277FDW; 1200 rpm for model EWS

1477FDW

Тонкие ткани

40° - Cold

Delicate fabrics as acrylics, viscose, polyester items. Nor-

mal soil.

3 kg

1200 rpm for model EWS 1277FDW; 1200 rpm for model EWS

1477FDW

Шерсть/

Ручная стирка

40° - Cold

Machine washable wool, hand washable wool and delicate

fabrics with «hand washing» care symbol.2)

2 kg

1200 rpm for model EWS 1277FDW; 1200 rpm for model EWS

1477FDW

Джинсы

60° - Cold

Items in denim and jersey. Also for dark coloured items.

6.5 kg

1200 rpm for model EWS 1277FDW; 1200 rpm for model EWS

1477FDW

Полоскание To rinse and spin the laundry. All fabrics.

6.5 kg

1200 rpm for model EWS 1277FDW; 1400 rpm for model EWS

1477FDW

Отжим/Слив 3) To spin the laundry and to drain the water in the drum. All fab-

rics.

6.5 kg

1200 rpm for model EWS 1277FDW; 1400 rpm for model EWS

1477FDW

белье

40° - Cold

Special programme for very delicate items, as lingerie, bras and

underwear etc.

1 kg

800 rpm

Шелк

30°

Special programme for silk and mixed synthetic items.

2 kg

800 rpm

Шторы

40° - Cold

Special programme for curtains. The prewash phase is activated

automatically.4)

2 kg

800

www.electrolux.com8

Programme

Temperature

range

Programme description

(Type of load and soil level)

Maximum load

Maximum spin speed

Одеяла

60° - 30°

Special programme for one synthetic blanket, duvet, bed-

spread and so on.

2 kg

800 rpm

Спортивная

одежда

30°

Synthetic and delicate items. Light soil items or items to re-

fresh.

2.5 kg

800 rpm

14 МИН.

30°

Synthetic and mixed fabric items. Light soil and items to fresh-

en up.

1 kg

800 rpm

1) Cottons energy saving programme. This programme at a 60ºC with a load of 6.5 is the ref-

erence programme for data entered in the energy label, in compliance with EEC 92/75 stand-

ards. Set this programme to have a good washing results and decrease the energy consump-

tion. The time of the washing programme is extended.

2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the

drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-

pliance.

3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

4) Do not use any detergent for prewash phase to rinse only with water.

Programme options compatibility

Programme

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

1) ■ ■ ■

■ ■ ■ ■ ■

■ ■ ■

ENGLISH 9

Programme

■ ■ ■ ■ ■

■ ■

■ ■ ■

■ ■ ■ ■

1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

6. CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the

data: the quantity and type of laundry, the water and ambient temperature.

At programme start the display shows the duration programme for the

maximum load capacity. During the washing phase the programme dura-

tion is automatically calculated and can be greatly reduced if the laundry

load is lower than the maximum load capacity (e.g. Cotton 60°C, maxi-

mum load capacity 6.5 kg, the programme duration exceeds 2 hours; real

load 1 kg, the programme duration don’t reach 1 hour). When the appli-

ance is calculating the real programme duration a dot blinks in the display.

Pro-

grammes

Load (kg) Energy

consump-

tion (kWh)

Water con-

sumption

(litre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remaining

moisture

(%)1)

Хлопок 60

°C 6.5 1.15 62 166 532) / 523)

Хлопок Eco

60 °C4) 6.5 0.81 52 190 532) / 523)

Хлопок 40

°C 6.5 0.75 62 165 532) / 523)

Синтетика

40 °C 3 0.45 45 110 352) / 353)

Тонкие

ткани 30 °C 3 0.6 62 91 352) / 353)

www.electrolux.com10

This manual suits for next models

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux Washing machines with EWM 1000 PLUS User manual

Electrolux

Electrolux EWF 1403RC User manual

Electrolux

Electrolux EWS 105410 A User manual

Electrolux

Electrolux EW 757 F User manual

Electrolux

Electrolux EWF 169542 W User manual

Electrolux

Electrolux Swissline GL EWF 1387 Operation manual

Electrolux

Electrolux EWP 0864 TDW User manual

Electrolux

Electrolux WAGL4E202 User manual

Electrolux

Electrolux EWF 1408 MEW User manual

Electrolux

Electrolux EWF 1484BW User manual

Electrolux

Electrolux EWT2276ELW User manual

Electrolux

Electrolux EIFLS60JIW0 User manual

Electrolux

Electrolux EWT 2852EWW User manual

Electrolux

Electrolux EWP 106100 W User manual

Electrolux

Electrolux EWN 12791 W User manual

Electrolux

Electrolux EW 924 T User manual

Electrolux

Electrolux EWF 1486 HDW User manual

Electrolux

Electrolux EW7F447WIN User manual

Electrolux

Electrolux EWT 8020 W User manual

Electrolux

Electrolux EWM2000 User manual

Electrolux

Electrolux WAL4E300 User manual

Electrolux

Electrolux EW 770 F User manual

Electrolux

Electrolux EW2F4822AF User manual

Electrolux

Electrolux FLE120 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
