ECOVACS WINBOT W1 PRO User manual
Instruction Manual/說明書
2
EN
Important Safety Instructions
1. This appliance can be used by persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. The appliance is not to be used if it
has been dropped, if there are visible signs of
damage or if it is leaking. Keep the appliance
out of reach of children when it is energized.
2. Do not use and charge the Appliance in
extremely hot or cold environments (below
0˚C/32˚F or above 40˚C/104˚F, above 85%
humidity), or it may affect battery life span.
3. The Appliance can be used to clean exterior
windows if it is properly tethered to a safe
position with the Carabiner, winds are calm,
and it is not raining or snowing.
4. Before use, please use the Carabiner to lock
the safety tether to a strong indoor railing, and
make sure WINBOT is securely attached to it.
5. Do not leave the Appliance unattended when
using it. To prevent bodily injury or property
damage caused by accidental falling of the
Appliance, please make sure there are no
people, animals, or valuable, fragile objects
under the working area of WINBOT.
6. Do not use the Appliance in whole gale storms
and force-10 winds, or in areas where the
altitude exceeds 2000 meters (6562 feet).
7. Please ensure the Appliance is plugged in
while it is cleaning. The Appliance has a Safety
Battery that charges during use. The Safety
Battery powers the Appliance if it becomes
unplugged or the electricity fails.
8. Do not leave the Appliance unattended when it
is plugged in.
9. For household use ONLY (including exterior
window). Do not use the Appliance in
commercial or industrial environments.
10. Do not use on broken or uneven glass, such
as glass with static cling stickers, advertising
posters, or raised patterns, so as to prevent
glass breaking or Appliance’s falling. Do not
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
3EN
use on surfaces with gaps, such as a piece
of glass with gaps or holes, or two pieces of
adjacent, frameless glass with a gap between
them, so as to prevent the Appliance from
falling due to poor attachment.
11. Only use accessories recommended or
supplied by the manufacturer. Only use the
Power Adapter supplied by the manufacturer.
12. Please make sure your power supply voltage
matches the power voltage marked on the
Power Adapter.
13. Do not use the Appliance on a framed glass
with a frame smaller than 5 mm (0.2 in).
14. Do not use on glass less than 3 mm (0.12 in)
thick or mirrors less than 4 mm (0.16 in) thick.
15. Do not use on glass or mirrors with a handle
height of 70~105 mm (2.76~ 4.13 in).
16. Do not use the Appliance on greasy windows.
17. When used in high humidity environment, the
cleaning performance will be affected.
18. Store the Appliance away from heat and
ammable materials.
19. In rainy weather, do not use the Appliance
on the exterior window to avoid the risk of
Appliance’s damage or falling.
20. Do not use the Appliance if it does not rmly
attach to the glass or has visible signs of damage.
21. To reduce the risk of electrical shock, do not
put the Appliance in water or other liquid. Do
not place or store Appliance where it can fall
or be pulled into a tub or sink.
22. Do not touch power plug with wet hands.
23. When charging the Appliance, do not place it
on other electrical appliances and keep it away
from re and liquid.
24. Take care not to damage the power cord. Do
not pull on or carry the Appliance by the power
cord, use the power cord as a handle, close
a window on the power cord, or put heavy
weights on the power cord. Keep power cord
away from hot surfaces.
25. Do not use with a damaged power cord or
receptacle. Do not use the Appliance if it is
not working properly, has been dropped,
damaged, or come in contact with water. It
must be repaired by the manufacturer or its
service agent in order to avoid a hazard.
26. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
27. The plug must be removed from the receptacle
before cleaning or maintaining the Appliance.
Do not unplug the Power Adapter by pulling
on the power cord.
4
EN
28. The Safety Battery must be replaced by the
manufacturer or its service agent in order to
avoid a hazard.
29. The Safety Battery must be removed and
discarded according to local laws and
regulations before disposal of the Appliance.
30. The Appliance must be disconnected from
the receptacle before removing the battery for
disposal of the Appliance.
31. Please dispose of used batteries according to
local laws and regulations.
32. Do not incinerate the Appliance even if it is
severely damaged. The battery can explode in
a re.
33. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The company cannot be held liable or
responsible for any damages or injuries
caused by improper use.
34. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit BLJ96W240400P-B provided with this
Appliance.
35. The robot contains batteries that are only
replaceable by skilled persons.
36. The plug and the Power Adapter must be used
indoor.
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer than this
distance is not recommended. The antenna used for
this transmitter must not be co-located in conjunction
with any other antenna or transmitter.
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
5EN
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries
For EU Declaration of Conformity information, visit
https://www.ecovacs.com/global/compliance
6
EN
WINBOT+ Safety Tether and Carabiner
+ Safety Battery Power Adapter Instruction Manual
Mopping PadECOVACS WINBOT Cleaning Solution
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to change without notice.
Package Contents
7EN
WINBOT
Bumper Rail
Filling Opening
Status Indicator Light/
START/PAUSE Button
Spray Outlet

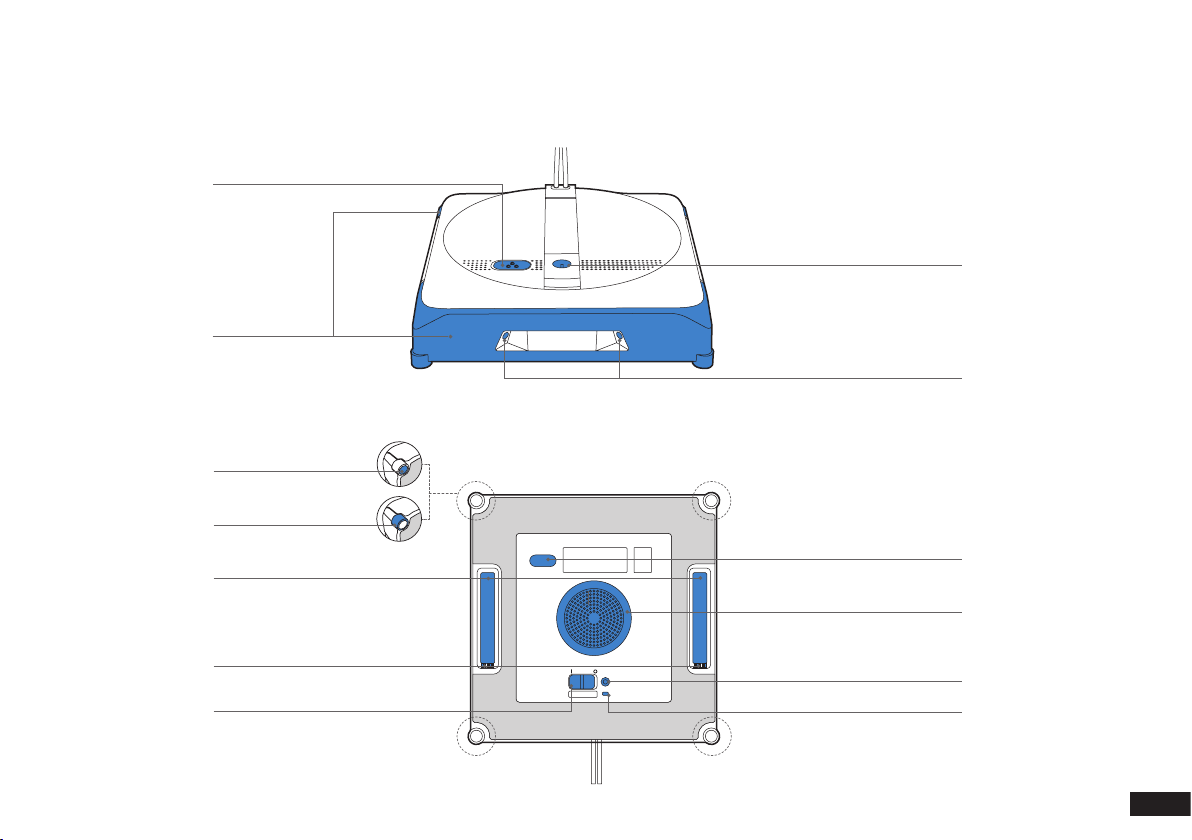

Product Diagram
Bottom View
Power Switch
Fan
Bottom Status Indicator Light
Suction Sensor
Side Rollers
Self-Cleaning Brush
Spherical Sensors
Driving Treads
Liquid Level Indicator
8
EN
Make sure Safety Tether and Carabiner have been connected with
WINBOT before using. (Connected by default. Do not disconnect
before cleaning.)
Note: Do not use WINBOT on a framed window with a frame narrower
than 5 mm (0.2 in).

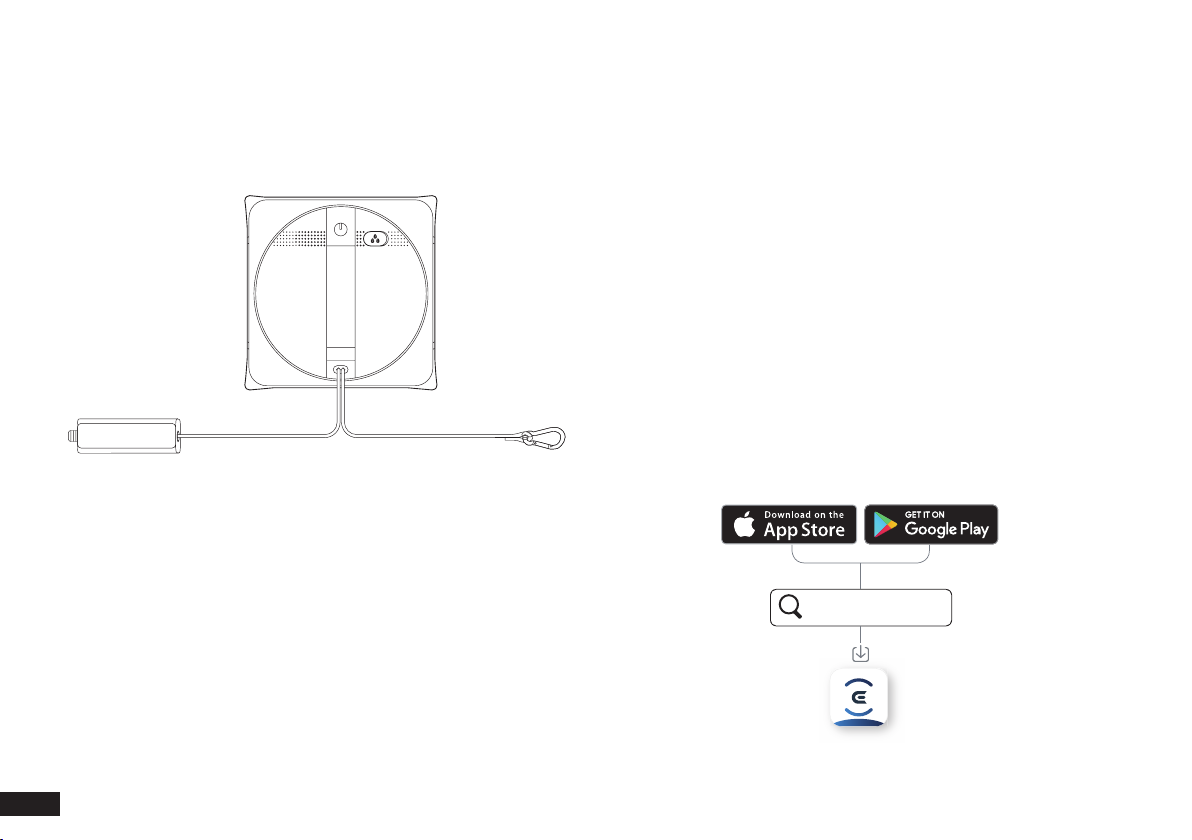

Notes Before Cleaning Network Setup
To enjoy all available features, it is recommended to control your
WINBOT via the ECOVACS HOME App.
a. Three Cleaning Mode
Fast Cleaning Mode: Ensure efcient window cleaning
Deep Cleaning Mode: Realize all-round cleaning
Spot Cleaning Mode: Say goodbye to stubborn stains
b. Manual Remote Control, Return to Corner:
Switch between interior and exterior window.
Manual remote control, to clean stubborn stains.
Return to Corner, to let WINBOT return to the specied corner
immediately.
c. Auto Water Spray and Manual Water Spray
Auto Water Spray defaulted leaves your windows clean.
WINBOT also supports Manual Water Spray.
d. Smart Reminder of Consumables Replacement
Precise timing reminder, to get a better cleaning experience.
HOME
ECOVACS HOME
9EN

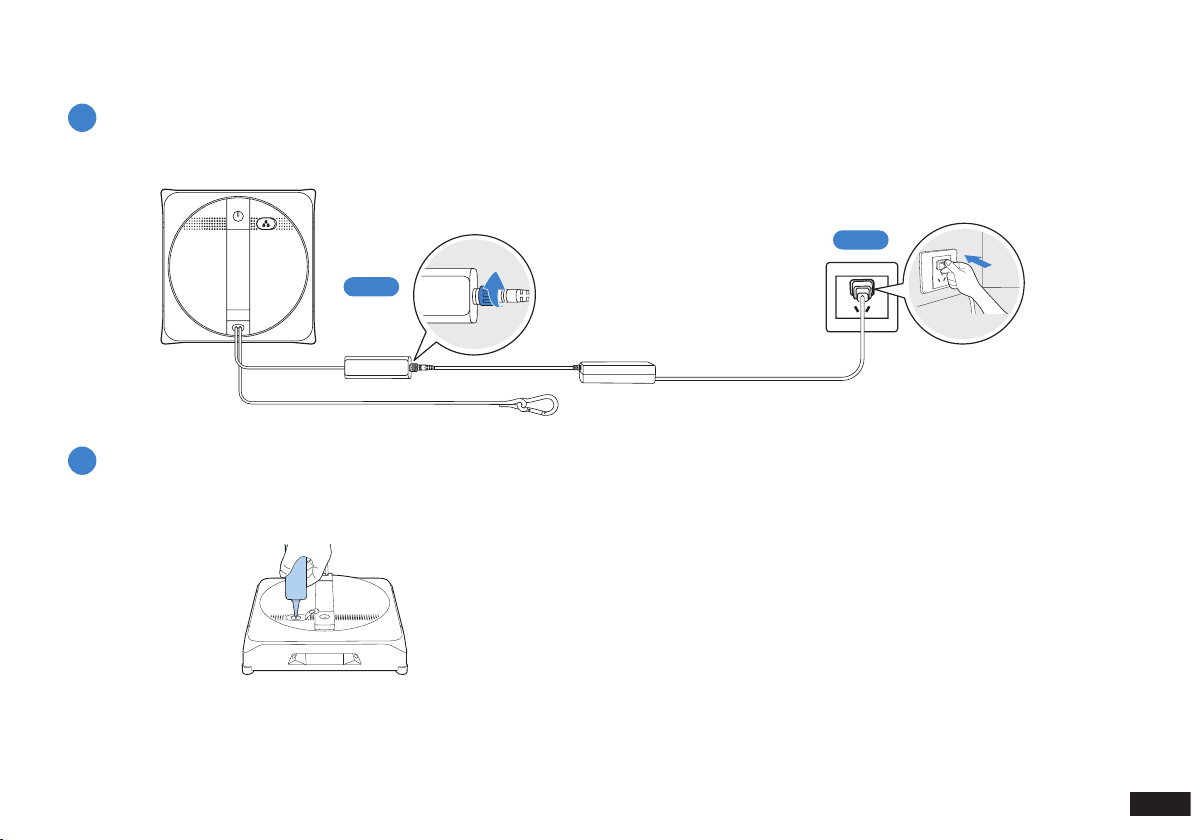

1Connect WINBOT Power Cord, Power Adapter and Plug
Connect correctly in the order shown above. Improper connection may cause charging abnormalities or damage to the battery.
2Preparation before Use
Quick Start
Note: Do not add purified water and filtered water.
Do not add too much cleaning solution to overflow the Reservoir.
Using other cleaners could have an adverse effect on cleaning performance.
If the cleaning solution is used up, you can temporarily use tap water instead. Using the ECOVACS WINBOT Cleaning Solution can have a better
cleaning performance.
It is recommended to use with ECOVACS WINBOT Cleaning Solution. The maximum volume of the Reservoir is about 60 ml, and it can spray
for about 60 minutes when the Reservoir is full.
Please ensure the battery is fully charged before using. Charging time will be approx. 2 hours.
*Do not cut the power off when WINBOT is running, otherwise it may lead to the risk of falling.
Fill up the Reservoir
Maximum 60ml
Step 1
Step 2
10
EN
Wide
Side
Wide
Side
Narrow Side
Narrow Side
①Wet the Mopping Pad ③Stick the Mopping Pad
Stick the Mopping Pad onto the Velcro at the bottom of WINBOT, and press
it with your hands to help the Mopping Pad stick firmly.
Before using, wet the Mopping Pad manually.
Install Mopping Pad
Note: To ensure safety, please make sure to secure the carabiner before use.
It is recommended to fasten the Safety Tether with the Carabiner on a firm and
safe metal railing.
②
Twist the Mopping Pad to wring water out. To ensure cleaning
performance, wring it out as much as you can.
Properly tie the safety tether to a stable object that cannot be easily moved
(e.g. table leg, chair leg, bed leg, sofa leg, curtain rod, stair handrail, etc.),
and lock the carabiner as shown below.
Hang the rope and wrap it around the surpport.
Open the carabiner, then attach it to the rope on the other side.
Tie the Safety Tether
