Eaton Powerware Series User manual
Powerware Vibration Sensor
User’s Guide
®
Powerware is a registered trademark of Eaton Electrical Inc.
ECopyright 2007 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Eaton Corporation.
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1 3
Vibration Sensor
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during installation and
maintenance of the vibration sensor. Please read all instructions before operating the equipment
and save this manual for future reference.
The vibration sensor is a device that works with the Eaton Powerware
Environmental Rack Monitor (ERM) and connects to the TH-Module.
Through the ERM, the user can monitor if there is any situation of
vibration.
Recommended Location of Vibration Sensors
SThe vibration sensor is designed for protecting against forced entry by
hammer, saw, crowbar, etc. through walls, ceilings, windows, safes,
cabinets, etc. It is used in closed-circuit alarm systems and initiates
an alarm when a vibration of considerable force strikes the protected
surface.
SThe vibration sensor detects shock of movement. If you want
something kept still, you can stick the vibration sensor on the surface
of the object to detect and alarm the movement of the object.
VIBRATION SENSOR
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1
4
Installation
To install the vibration sensor:

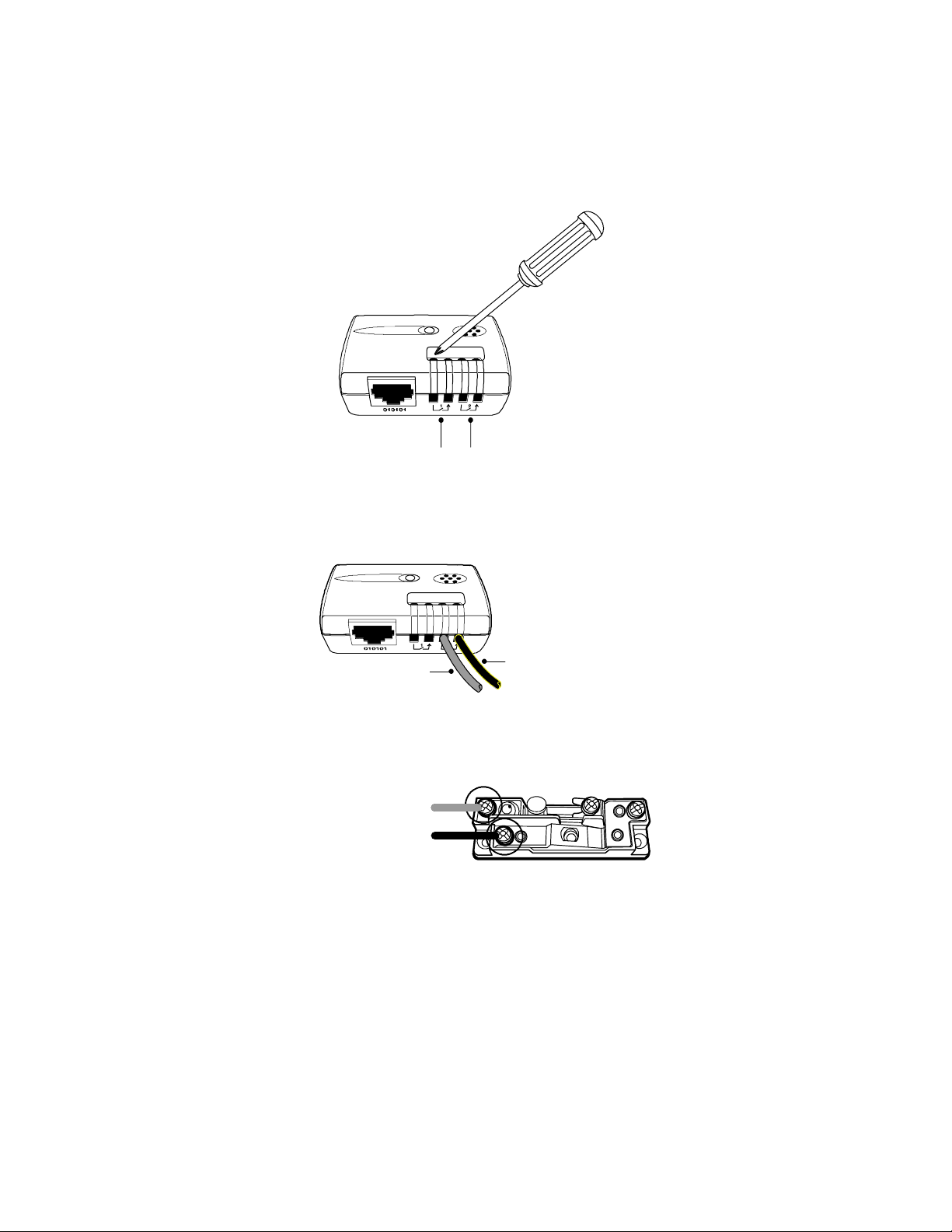

1. Loosen the screws on the TH-Module (see Figure 1).
Alarm 1 Alarm 2
Figure 1. Adjusting TH-Module Screws
2. Connect the vibration sensor wires to the TH-Module alarm 1 or
alarm 2 connectors, then tighten the TH-Module screws (see
Figure 2).
Red Vibration Sensor Wire Black Vibration Sensor Wire
Figure 2. TH-Module with Vibration Sensor Wires
3. Connect the other end of the vibration sensor wires to the vibration
sensor (see Figure 3).
Red Vibration Sensor Wire
Black Vibration Sensor Wire
Figure 3. Vibration Sensor
VIBRATION SENSOR
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1 5
4. Connect the RJ-45 network cable to the TH-Module port labeled
“010101“ (see Figure 4).
Figure 4. Connecting the RJ-45 Network Cable
5. Connect the other end of the RJ-45 network cable to the ERM (see
Figure 5).
TH-Module
12
TH-Module-1 TH-Module-2NETWORK RESET 12 VDC
To LAN port To Power Outlet
ERM
Figure 5. ERM and TH-Module
VIBRATION SENSOR
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1
6
6. Verify that the ERM is connected to the network. Open the ERM
Web page and select Monitoring, then TH-Module-1 Setup or TH-Module-2
Setup. The setup screen displays (see Figure 6).
7. Change the status of the TH-Module from “Disable” to “Auto” on
the Device Name line. Verify that the TH-Module LED
(Power/Status) is flashing.
8. Select “Vibration” for alarm 1 or alarm 2.
9. Select Set Value to confirm the vibration sensor setup.
Figure 6. Vibration Sensor Settings
10. When the sensor detects vibration, the ERM Web page displays
the alarm. The Web page for the alarm table and sensor events also
records the alarm.
Figure 7. Comprehensive View Screen
Figure 8. Events Log Data
VIBRATION SENSOR
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1 7

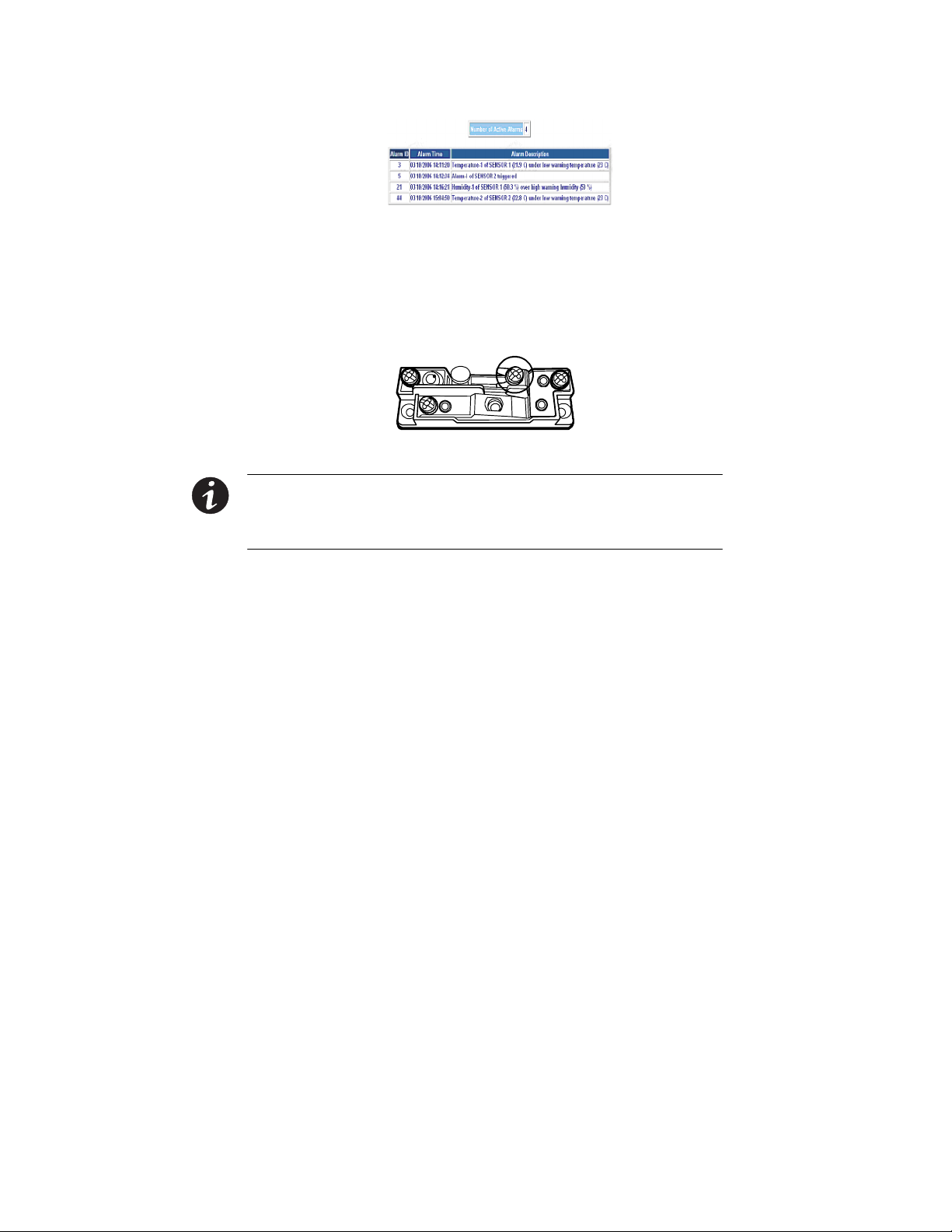

Figure 9. Alarm Table
Sensitivity Adjustment
To adjust the sensitivity of the vibration sensor, loosen or tighten the
screw on the vibration sensor as shown in Figure 10. To increase the
sensitivity of the vibration sensor, tighten the screw.
Figure 10. Adjusting the Sensitivity
NOTE For more detailed information that is not included in this manual, first register your
product at warranty.powerware.com, then visit our Web site:
www.powerware.com/rackmonitor. You can also download firmware upgrades, the latest
manuals, and other documentation.
VIBRATION SENSOR
EATON Powerware®Vibration Sensor User’s Guide S164201681 Rev 1
8
