Dometic FreshWell3000 User manual

Dometic WAECO International GmbH

Hollefeldstrasse 63

D-48282 Emsdetten

www.dometic.com

Ø 32 mm

32 mm

324 mm

96 mm

32 mm

123 mm

96 mm

MODE

°C

CLOCK

TIMER

SET-°F/°CSET-°F/°C

SLEEP

ROOM

DIMDIM P.F.P.F.

LIGHT

08:00

20:00

OFF

FreshWell3000

4445101284 F ST0201-59 Rev01– 825 02 01-59 02/2016

59 mm

X + 29,5 mm

50 mm

93,5 mm

Y + 47

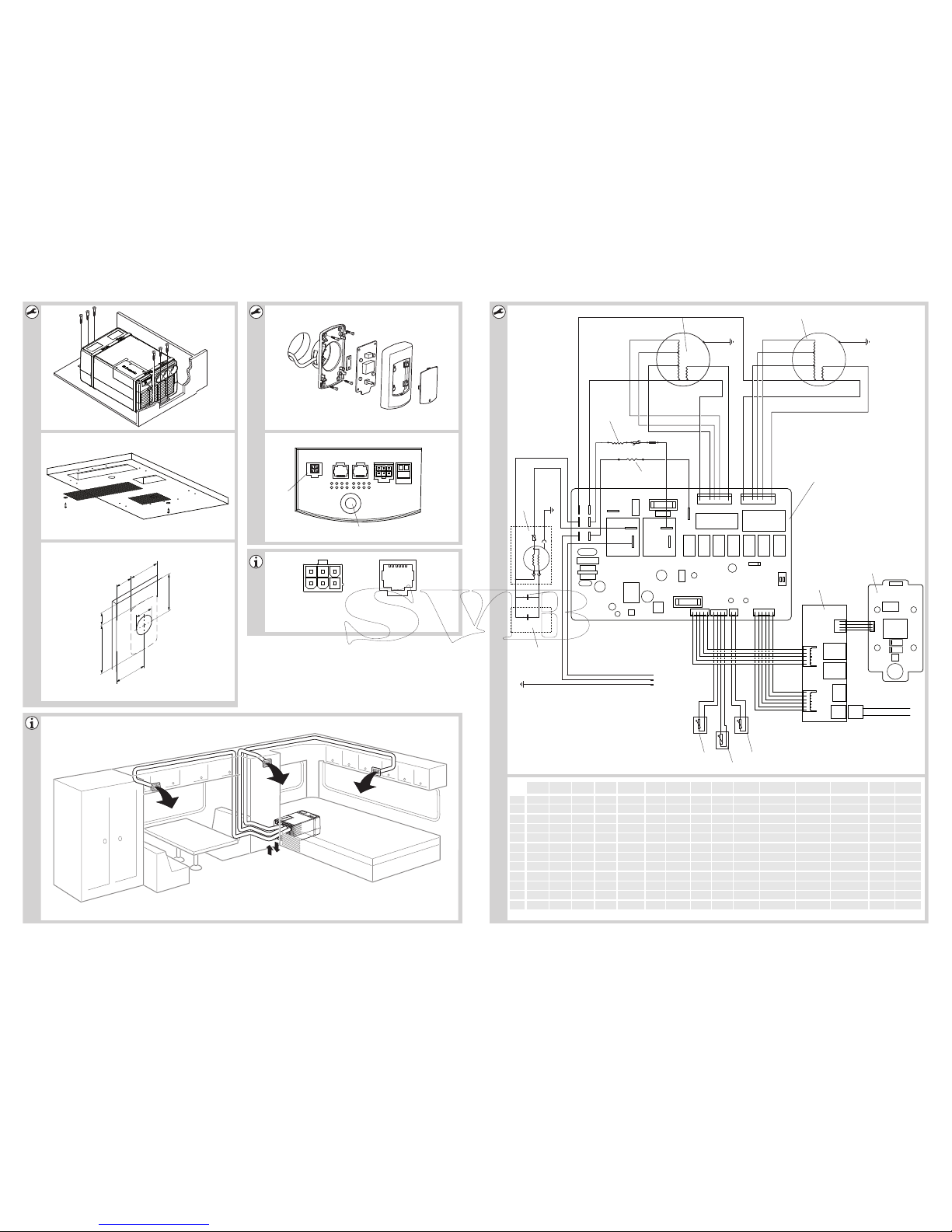

DC-Kit

IR LIN1 12 VLIN2

POWER

DC-Kit

1, 4 Inverter

2, 5 Remote On

3, 6 Economy

LIN

1, 3, 4, 5 GND

2 LIN

6 NC

123456

CN1

COMP

COM

HEATER

4V IN FAN

CN1

CN7CN4CN10CN3

CN2

OUT FAN

AC-L1

N2-N3

N1-N4

N5-N6

CN1

CN5 CN4

CN3

CN2

LIN1 LIN2

LIN 1

AUX

LIN 2

–

rt br

T1 – Line

T2 – Neutral

T3 – Ground

230 Vw

12 Vg

DE EN FR ES IT NL DA SV NO FI PT RU PL CS SK

bl Blau Blue Bleu Azul Blu Blauw Blå Blå Blå Sininen Azul Синий Niebieski Modrá Modrá

br Braun Brown Marron Marrón Marrone Bruin Brun Brun Brun Ruskea Castanho Коричневый Brązowy Hněda Hnedá

cy Cyan Cyan Cyan Cian Cyan Cyaan Cyan Cyan Cyan Syaani Ciano Голубой Cyjan Azurová Azúrová

ge Gelb Yellow Jaune Amarillo Giallo Geel Gul Gul Gul Keltainen Amarelo Желтый Żółty Žlutá Žltá

gn Grün Green Vert Verde Verde Groen Grøn Grön Grønn Vihreä Verde Зеленый Zielony Zelená Zelená

gr Grau Grey Gris Gris Grigio Grijs Grå Grå Grå Harmaa Cinzento Серый Szary Šedá Sivá

or Orange Orange Orange Naranja Arancione Oranje Orange Orange Oransje Oranssi Cor de laranja Оранжевый Pomarańczowy Oranžová Oranžová

pk Pink Pink Rosa Rose Rosa Roze Lyserøde Rosa Rosa Pinkki Cor de rosa Розовый Różowy Růžová Ružová

rt Rot Red Rouge Rojo Rosso Rood Rød Röd Rød Punainen Vermelho Красный Czerwony Červená Červená

sw Schwarz Black Noir Negro Nero Zwart Sort Svart Svart Musta Preto Черный Czarny Černá Čierna

vt Violett Violet Violeta Lila Violetto Paars Violet Violett Fiolett Violetti Violeta Фиолетовый Fioletowy Fialová Fialová

ws Weiß White Blanc Blanco Bianco Wit Hvid Vit Hvit Valkoinen Branco Белый BiałyBílá Biela

Under-bench air conditioner

Installation Manual. . . . . . . . . . . . . . . 3

Staukastenklimaanlage

Montageanleitung . . . . . . . . . . . . . . 19

Climatiseur de coffre

Instructions de montage . . . . . . . . . 35

Equipo de aire acondicionado

de cajón

Instrucciones de montaje. . . . . . . . . 52

Climatizzatore per vano di

carico

Indicazioni di montaggio . . . . . . . . . 69

Airco onder de bank

Montagehandleiding . . . . . . . . . . . . 86

Klimaanlæg til montering i et

magasin

Monteringsvejledning. . . . . . . . . . . 102

Klimatanläggning för

förvaringsutrymmen

Monteringsanvisning . . . . . . . . . . . 117

Takboksklimaanlegg

Monteringsanvisning . . . . . . . . . . . 132

Kaappi-ilmastointilaite

Asennusohje . . . . . . . . . . . . . . . . . 147

Sistema de climatização para

caixa de arrumação

Instruções de montagem . . . . . . . . 162

Встраиваемый вбагажный

ящик кондиционер

Инструкция по монтажу . . . . . . . . 180

Klimatyzator umieszczany

w schowku

Instrukcja montażu . . . . . . . . . . . . 197

Klimatizace do zavazadlového

prostoru

Návod k montáži . . . . . . . . . . . . . . 214

Klimatizačné zariadenie do

úložného priestoru

Návod na montáž . . . . . . . . . . . . . 229

Tárolóládás klímaberendezés

Szerelési útmutató . . . . . . . . . . . . 244

Dometic

FreshWell3000

Dometic FreshWell3000 Explanation of symbols

Please read this instruction manual carefully before installation and

first use, and store it in a safe place. If you pass on the product to

another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Safety and installation instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Target group for this instruction manual . . . . . . . . . . . . . . . . . . . . . . 6

4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause

fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to

injury.

NOTICE!

Failure to observe this instruction can cause material damage and

impair the function of the product.

NOTE

Supplementary information for operating the product.

Safety and installation instructions Dometic FreshWell3000

➤Action: This symbol indicates that action is required on your part. The

required action is described step-by-step.

✓This symbol describes the result of an action.

Fig. 15, page 3: This refers to an element in an illustration. In this case,

item 5 in figure 1 on page 3.

2 Safety and installation instructions

Please observe the prescribed safety instructions and stipulations

from the vehicle manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

Damage to the product resulting from mechanical influences and excess

voltage

Alterations to the product without express permission from the manu-

facturer

Use for purposes other than those described in the operating manual

Note the following basic safety information when using electrical devices to

protect against:

Electric shock

Fire hazards

Injury

Dometic FreshWell3000 Safety and installation instructions

2.1 Handling the device

!WARNING!

Installation and repair of the under-bench air conditioner may

only be carried out by qualified personnel who are familiar with

the risks involved and the relevant regulations. Inadequate

repairs may cause serious hazards. For repair service, please

contact the service centre in your country (addresses on the

back page).

Electrical devices are not toys.

Keep electrical devices out of reach of children or infirm per-

sons. Do not allow them to use electrical devices without super-

vision.

Persons whose physical, sensory or mental capabilities or

whose lack of experience and knowledge prevent them from

using the device safely should not use it without supervision or

instruction by a responsible person.

In the event of a fire only use approved extinguishing agents.

Do not use water to extinguish fires.

!CAUTION!

The under-bench air conditioner must be installed securely so

that it cannot fall down.

Only operate the under-bench air conditioner if you are certain

that the housing and the cables are not damaged.

Do not use the under-bench air conditioner near flammable

fluids.

Make sure no combustible objects are stored or installed near

the air outlet. A distance of at least 50 cm must be kept.

Do not reach into air outlets or insert any foreign objects in the

device.

ANOTICE!

Only use the device as intended.

The under-bench air conditioner is not suitable for use in agri-

cultural or construction vehicles.

Do not make any alterations or conversions to the device.

If faults occur in this refrigerant circuit, the system must be

checked by a specialist company and repaired properly. The

refrigerant must never be released into the air.

Target group for this instruction manual Dometic FreshWell3000

2.2 Handling electrical cables

!WARNING!

The electrical power supply may only be connected by a quali-

fied electrician (e.g. VDE 0100, Part 721 in Germany).

!CAUTION!

Fit a fuse of at least 10 amps to the connection with the vehicle’s

power supply.

Attach and lay the cables so that they cannot be tripped over or

damaged.

ANOTICE!

Use cable ducts to lay cables through walls with sharp edges.

Do not lay loose or bent cables next to electrically conductive

materials (metal).

Do not pull on the cables.

3 Target group for this instruction

manual

The instructions in this manual are intended for qualified personnel at work-

shops who are familiar with the guidelines and safety precautions to be

applied.

Dometic FreshWell3000 Scope of delivery

4 Scope of delivery

5 Intended use

The Dometic FreshWell3000 under-bench air conditioner (item no.

9105305764) is designed for use in motorcaravans, caravans and other

vehicles with habitation compartments only. It is not suitable for houses and

appartments.

The under-bench air conditioner is not suitable for installation in construction

machines, agricultural machines or similar equipment. It will not work prop-

erly if exposed to strong vibrations.

The operating mode of FreshWell3000 is guaranteed for temperatures

between 0 °C and 52 °C.

No. in fig. 1Qunatity Description

1 1 Under-bench air conditioner

2 1 Remote control

31Receiver

44Airfilter

5 2 Angle section

6 4 Fastening bracket

7 14 Fastening screw

8 2 Drain pipe

9 2 External grids

– 1 Assembly template

NOTE

You can find additional information on under-bench air condition-

ers in the operating manual, such as the technical description or

the controls.

Labels Dometic FreshWell3000

6Labels

Labels are attached to the Dometic FreshWell under-bench air conditioners.

These labels provide the user and fitter with information on specifications of

the device.

7 Installation

7.1 Note on installation

Read this installation manual completely before installing the under-bench air

conditioner.

The following tips and instructions must be observed while installing the

under-bench air conditioner:

CAUTION! Beware of injury

The under-bench air conditioner may only be installed by qualified

personnel from a specialist company. The following information is

intended for technicians who are familiar with the guidelines and

safety precautions to be applied.

DANGER! Danger of electrocution

Disconnect all power supplies when working on the under-bench

air conditioner.

CAUTION! Beware of injury

Improper installation of the under-bench air conditioner can

result in irreparable damage to the device and put the safety of

the user at risk.

The manufacturer assumes no liability for malfunctions and for

the safety of the under-bench air conditioner, especially for

injury and/or damage to property, if the under-bench air condi-

tioner is not fitted in accordance with these installation instruc-

tions.

Always wear the recommended protective clothing

(e.g. protective goggles, gloves).

Other manuals for FreshWell3000

Table of contents

Languages:

Other Dometic Air Conditioner manuals

Dometic

Dometic 620615.321 Manual

Dometic

Dometic SUPERCOOLER RC 4000 User manual

Dometic

Dometic Brisk Air User manual

Dometic

Dometic FW3000 User manual

Dometic

Dometic FreshJet 1100 User manual

Dometic

Dometic CK36H401RI Harrier Inverter User manual

Dometic

Dometic Battery-powered HVAC For Day Cabs User manual

Dometic

Dometic 457915.30X User manual

Dometic

Dometic CA1000 User manual

Dometic

Dometic CK36H401RI Harrier Inverter User manual

Dometic

Dometic RTX1000 User manual

Dometic

Dometic Harrier Plus HP36H401RI User manual

Dometic

Dometic FreshJet FJ 1500E User manual

Dometic

Dometic 620515.321 User manual

Dometic

Dometic 640315 Series User manual

Dometic

Dometic FreshJet 5 Series User manual

Dometic

Dometic 000 BTU User manual

Dometic

Dometic Brisk II User manual

Dometic

Dometic FreshJet3 Series User manual

Dometic

Dometic FRESHLIGHT FL1600 User manual

Dometic

Dometic CA2500 User manual

Dometic

Dometic Scania RTX2000 User manual

Dometic

Dometic FreshJet 1100 User manual

Dometic

Dometic MX 900 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
