Dimplex DuoHeat Duo300i User manual

- 1 -

Dimplex DuoHeat Radiator

Models: Duo300i, Duo400i and Duo500i

Installation Instructions

85702 Issue 9

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

NOTE ALSO THE INFORMATION GIVEN ON THE APPLIANCE

These instructions should not be left with the user, as this would invite the dismantling and servicing by unqualified persons.

There is a separate instruction leaflet which should be left with the user explaining how the radiator should be operated.

IMPORTANT SAFETY ADVICE

WARNING - This radiator is VERY HEAVY. In order to maintain stability and to ensure its future safety in use, it is essential

that the radiator is FIXED SOUNDLY TO A WALL and that the feet are mounted on a FIRM, LEVEL SURFACE. Care should

be taken to avoid irregular surfaces, such as may result from tiled surrounds partially protruding under the radiator. It is

important that the following instructions are strictly followed.

WARNING – It is important that the fixing device chosen is appropriate to the wall material to which the radiator is being

fixed. Some modern internal building materials are very low density block and require specialised fixing devices to

provide a safe, secure installation.

WARNING – If during any reassembly of the radiator, a part of the thermal insulation shows damage or deterioration which

may impair safety, it should be replaced with an identical part.

WARNING – This radiator must not be located below a fixed socket outlet.

Suggested Wall Fittings (see page 7 for further information)

Solid brick/block: No. 10 Rawlplug fibre inserts (provided). 5.5mm drill bit. Drill 8mm deeper than rawlplug length.

Plasterboard: If possible locate studding and use No. 10 woodscrews directly into the wood, otherwise M5 intersets.

For other wall types seek specialist advice.

WARNING - in order to avoid overheating, do not cover the radiator.

DO NOT COVER OR OBSTRUCT the surfaces of the appliance.

DO NOT POSITION under windows where curtains may contact the radiator (see minimum clearances above).

DO NOT PLACE OBJECTS in contact with the radiator.

Model Height

AWidth

BDepth

Duo300i 712mm 600mm 130mm+10mm

Duo400i 712mm 830mm 130mm+10mm

Duo500i 712mm 1060mm 130mm+10mm

Wall, Curtains or Furniture

Curtains Shelf or Overhang

Furniture

or other

obstruction

110mm

150mm

min.

250mm

min.

75mm

min.

75mm

min. A

TO ENSURE THIS APPLIANCE IS OPERATING CORRECTLY, IT IS ESSENTIAL TO PERFORM THE CHECK PROCEDURE DETAILED

ON THE BACK PAGE OF THIS INSTRUCTION. THIS MUST BE COMPLETED BEFORE NORMAL OPERATION COMMENCES.

Dimensions (including clearances diagram)

(millimetres)

Models Specification Rated Charge

300i 1.3kW / 0.28kW 9.1kWh

400i 1.95kW / 0.34kW 13.65kWh

500i 2.6kW / 0.39kW 18.2kWh

- 12 -

This appliance complies with the European Standards EN 60 335-1, EN 60 335-2-61, EN 61000-3-2,

EN 61000-3-3, EN 55014 and EN55104 for Safety & Electromagnetic Compatibility.

These standards cover the requirement of the EMC Directives 89/336 & 73/23

Glen Dimplex UK Limited

Millbrook House

Grange Drive

Hedge End

Southampton

Hampshire SO30 2DF

DuoHeat has two heat output modes Comfort (Radiant Heat)

and Background (Retained Heat) . Under normal operation

the temperature control display will always operate the radiant

panel, (Comfort).

Note:- Front Panel should be fully installed onto radiator

and only Peak supply is switched on, with red bar(s)

showing on the temperature control display, before

starting the check procedure.

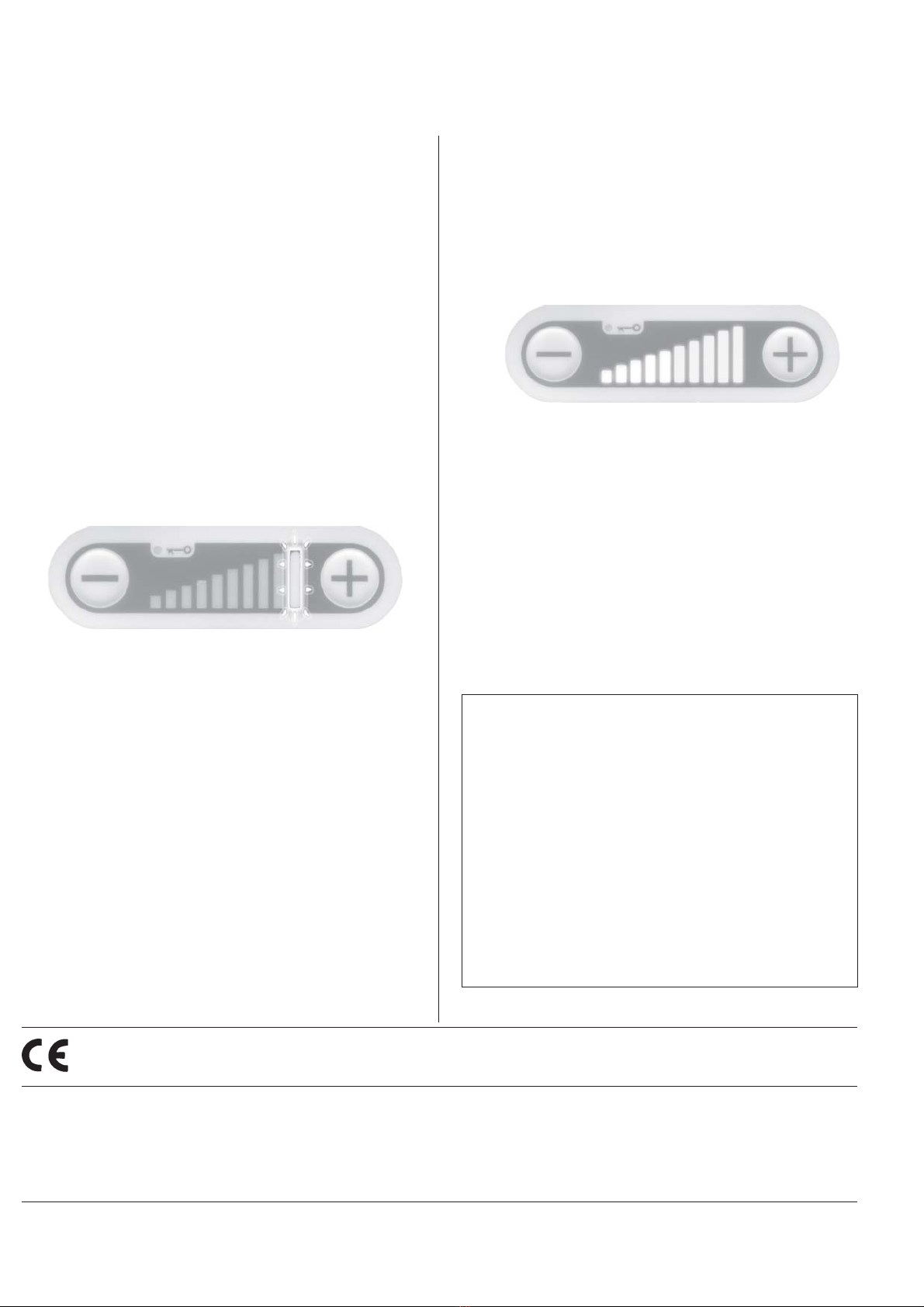

1. (i) Adjust the “off peak” control setting (Background

heat) to position no. 10 as follows; press and hold

down the +button on the temperature control display

until 10 red bars are illuminated, continue to hold

the +button for a further 7 seconds and a single

red bar will flash. Use the +button to move the

flashing red bar to the right hand side i.e. the No. 10

position (shown below).

After 20 seconds the temperature control display

will return to the Comfort control mode.

(ii) Ensure “Off Peak” supply is in the Off position.

Unscrew the spur from the wall. Check the

continuity on the storage side of the spur.. If the

circuit is closed this will confirm that the “off peak”

storage circuit (background heat) is operational.

(iii) If the “off peak” circuit shows open circuit and room

temperature is below 25°C, switch off the “peak”

front panel electricity supply and check if the circuit

has closed. If off peak circuit is still open, check all

electrical connections are secure, only then phone

customer help line.

Reconnect spur and switch on radiator.

CHECK PROCEDURE FOR INSTALLERS FOLLOWING INSTALLATION

2. To check the radiant panel operation (comfort heat).

(i) Adjust the temperature control display as follows;

press down the +button until 10 red bars are

illuminated (shown below). After 2 minutes the

front panel should now feel warm, this will confirm

correct operation.

(ii) If the front panel does not heat up and room

temperature is below 25°C, remove front panel and

ensure there is no damage to front panel or radiant

element and that all electrical connections are

secure. If front panel is still not heating up, phone

customer help line.

NOTE: If room temperature is above 25°C, radiator will

not operate.

IMPORTANT

Once radiator has been confirmed as fully

operational, use the “Quick Start Guide” to

set up initial customer settings.

Please ensure the “Quick Start Guide” and

the “Operating Instructions” are left with the

radiator for user information.

THIS CHECK PROCEDURE SHOULD BE CARRIED OUR BY A COMPETENT INSTALLER ONLY. A QUICK START GUIDE AND

OPERATING INSTRUCTIONS ARE AVAILABLE FOR END USERS.

Customer Help Line 0845 600 5111

8am–5pm Mon–Fri and 8:30am–1pm Sat (Autumn–Winter only)

Fax 01489 773 050

Web-site www.dimplex.co.uk

e-mail [email protected]

Republic of Ireland 01 842 4833
