Digital Watchdog STAR-LIGHT DWC-D4283WTIR User manual

Quick Start Guide Quick Start Guide

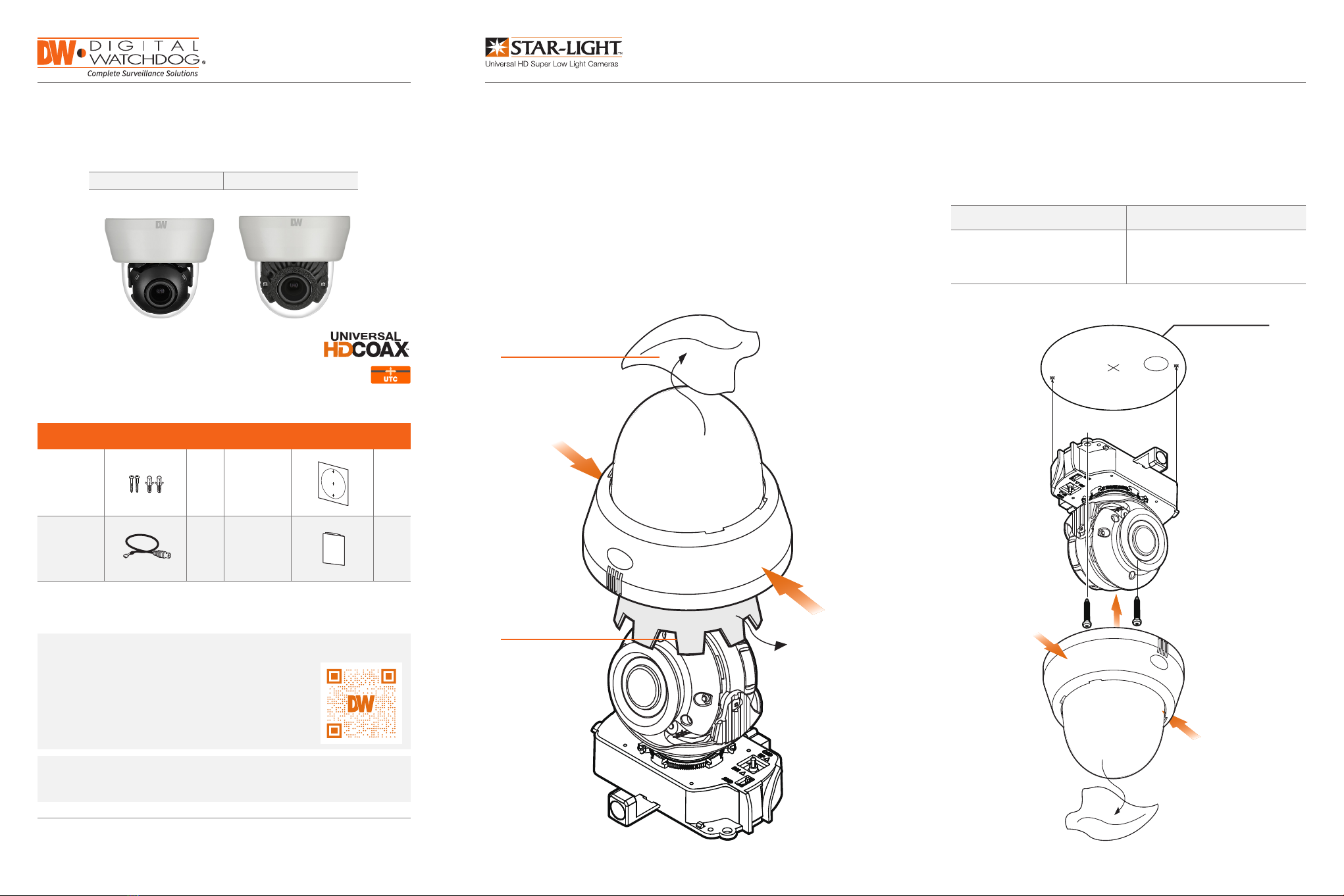

1. The mounting surface must withstand ﬁve times the weight of your

camera.

2. Pay attention to the cables. They can easily become caught and

damaged. Any damage may cause a short or ﬁre.

3. Detach the camera’s dome cover by pressing on both sides of the

dome cover.

4. Use the mounting template to mark and drill the necessary holes in

the mounting surface.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections. Connect the BNC cable and power cables to the camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power Requirements Power Consumption

DC12V / AC24V dual-voltage

DC12V (LED o): 3.0W

DC12V (LED on): 5.2W

AC24V (LED o): 2.3W

AC24V (LED on): 4.6W

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

Protective sheet

Mounting template

Protective pad

WHAT’S IN THE BOX

Screws

and plastic

anchors-

2pcs

1 Set Mounting

template 1

Test video

cable 1Quick set up

guide 1

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Attention: This document is intended to serve as a quick reference for initial

set up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick set up guide (QSGs) will appear in the results.

DW® Universal HD over Coax®

Snapit™ indoor dome cameras

DWC-D4283WD DWC-D4283WTIR

Quick Start Guide

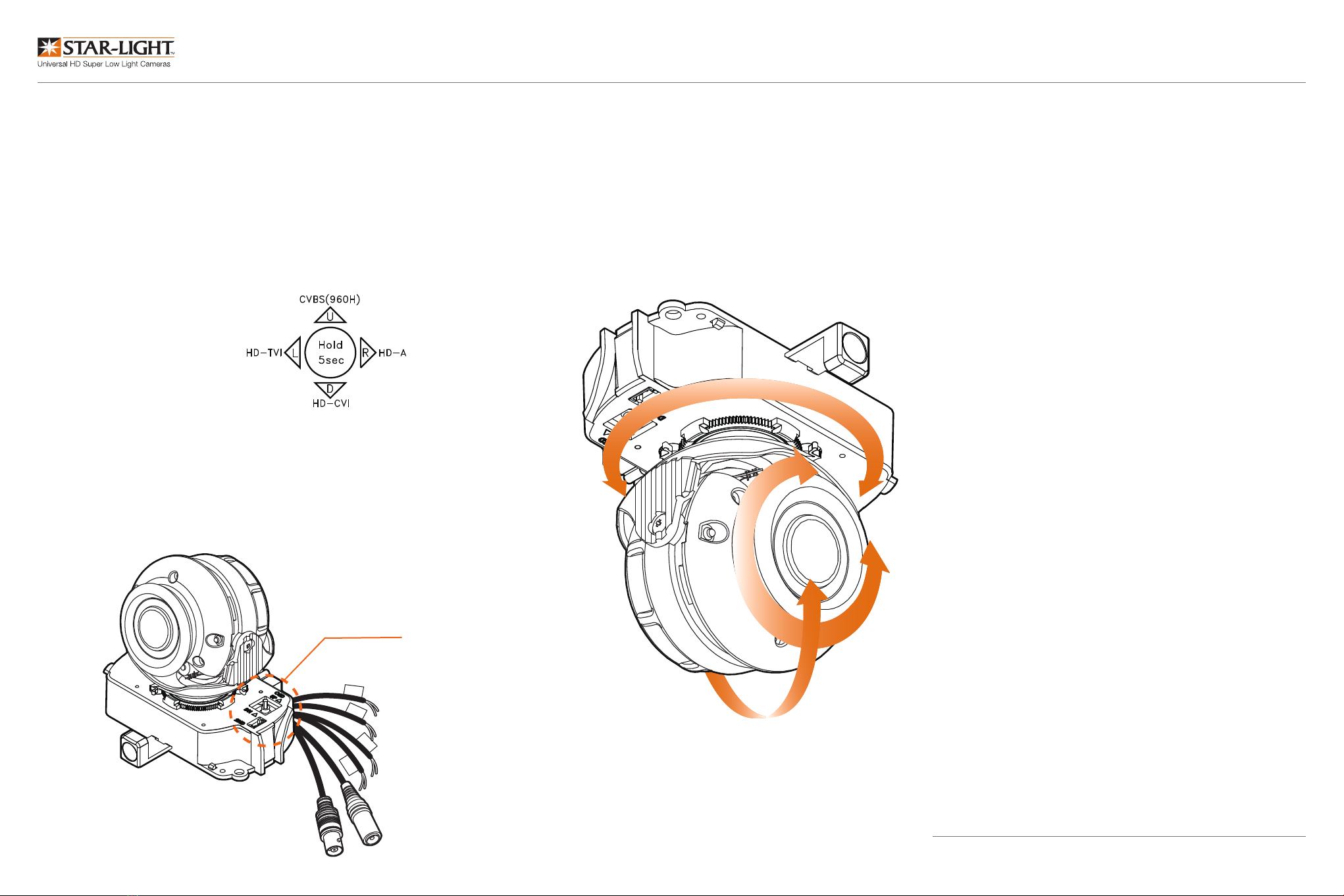

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To

switch between the signals:

a. Remove the camera’s dome to access the joystick and OSD

control on the base of the camera.

b. Use the OSD Switch to switch the camera’s signal.

1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the mounting surface.

2. Adjust the camera’s pan, tilt and position to achieve the desired view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 75°

Rotation: 0° ~ 350°

3. Once the installation is complete, remove the protective ﬁlm from the camera’s dome cover.

STEP 4 – INSTALLING THE CAMERASTEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

Rev Date: 09/19

Speciﬁcations and pricing are subject to change without notice.

Titling 75°

Rotation 350°

Panning 360°

- To switch the camera to

HD-TVI mode, press OSD

joystick to the left

for 5 seconds.

- To switch the camera to

HD-Analog mode, press OSD

joystick to the right

for 5 seconds.

- To switch the camera to CVBS

mode, press OSD joystick up

for 5 seconds.

- To switch the camera to

HD- CVI mode, press OSD

joystick down for 5 seconds.

OSD joystick
