Cub Cadet 1515 User manual

PRINTED IN U.S.A. FORM NO. 770-10604A

(01/2002)

Parts Manual

Hydrostatic Lawn Tractor

Models 1515

1517

Series 1500

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

-1-

DESCRIPTION PAGE

Axle, Front ....................................................... 5, 6

Battery ............................................................. 15, 16

Brake Pedal ..................................................... 11, 12

Bulkhead .......................................................... 17, 18

Mower Deck, 38-inch ........................................ 21, 22

Mower Deck, 42-inch ........................................ 23, 24

Dash Panel ...................................................... 15, 16

Drive System ................................................... 3, 4

Electrical Sysytem ........................................... 27, 28

Engine

Air Filter ........................................................

Blower Housing ............................................

Breather ........................................................

Carburetor ....................................................

Controls ........................................................

Crankcase ....................................................

Crankshaft ....................................................

Cylinder Head ...............................................

Electrical .......................................................

Exhaust..........................................................

Fuel System ..................................................

Oil Pan ..........................................................

Starter ...........................................................

Valves ...........................................................

33, 34

39, 40

29, 30

33, 34

35, 36

39, 40

31, 32

35, 36

33, 34

Engine Mounting .............................................. 14

Fender ............................................................. 9

Frame .............................................................. 7, 8

Fuel Tank ......................................................... 9

Grille ................................................................ 17, 18

Hood ................................................................ 17, 18

Deck Lift Handle/Linkage ................................. 10

Muffler .............................................................. 14

PTO Clutch ...................................................... 19, 20

Seat ................................................................. 13

Side Panels ..................................................... 17, 18

Steering ........................................................... 5, 6

Transmission, Hydrostatic ............................... 25, 26

Wheels, Front & Rear ...................................... 2

DESCRIPTION PAGE

MODELS 1515 & 1517

TABLE OF CONTENTS

NOTE, For painted parts, please refer

to the list of color codes below. Please

add the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part,

numbered 700-xxxx, is painted Cub

Yellow, the part number to order would

be 700-xxxx-0498.

Cub Yellow: 0498

Cub Beige: 0499

Powder Black: 0637

-2-

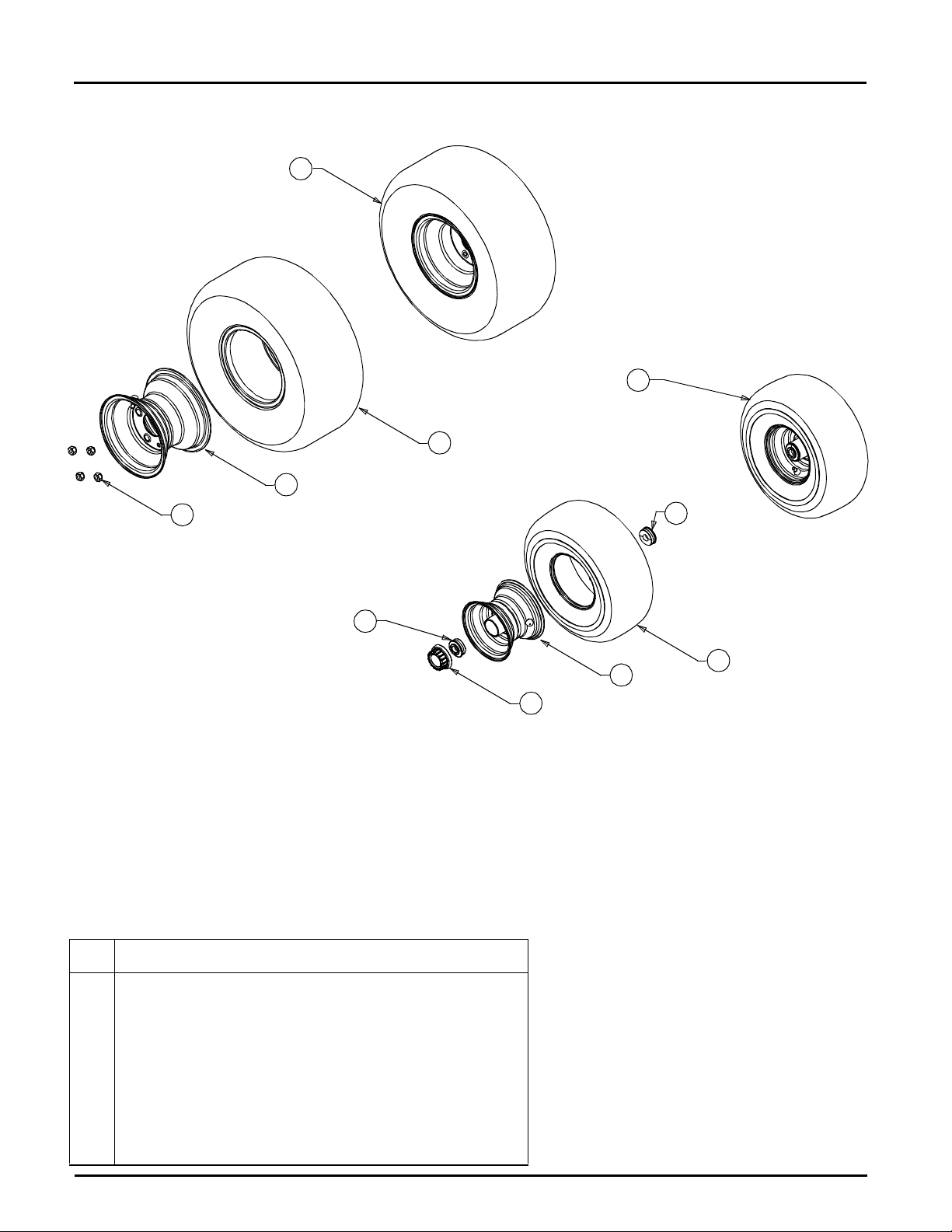

WHEELS

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 634-0245 Rim/Wheel Assembly, 20 x 9 x 8 (4-Lug) 2

2 634-3012A Wheel, Complete, 15 x 6 x 6 2

3 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2

4 634-0246 Rim Assembly, 8.0 x 6.19 (4-Lug) 2

5 712-3050 Lug Nut, 7/16-14 8

6 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4

7 634-3015 Rim Assembly, Bead Lock, 6 x 4.5 2

8 731-3020 Hub Cap 2

9 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2

— 737-0224 Gease Fitting 2

— 734-0255 Valve, Tubeless Air 4

-3-

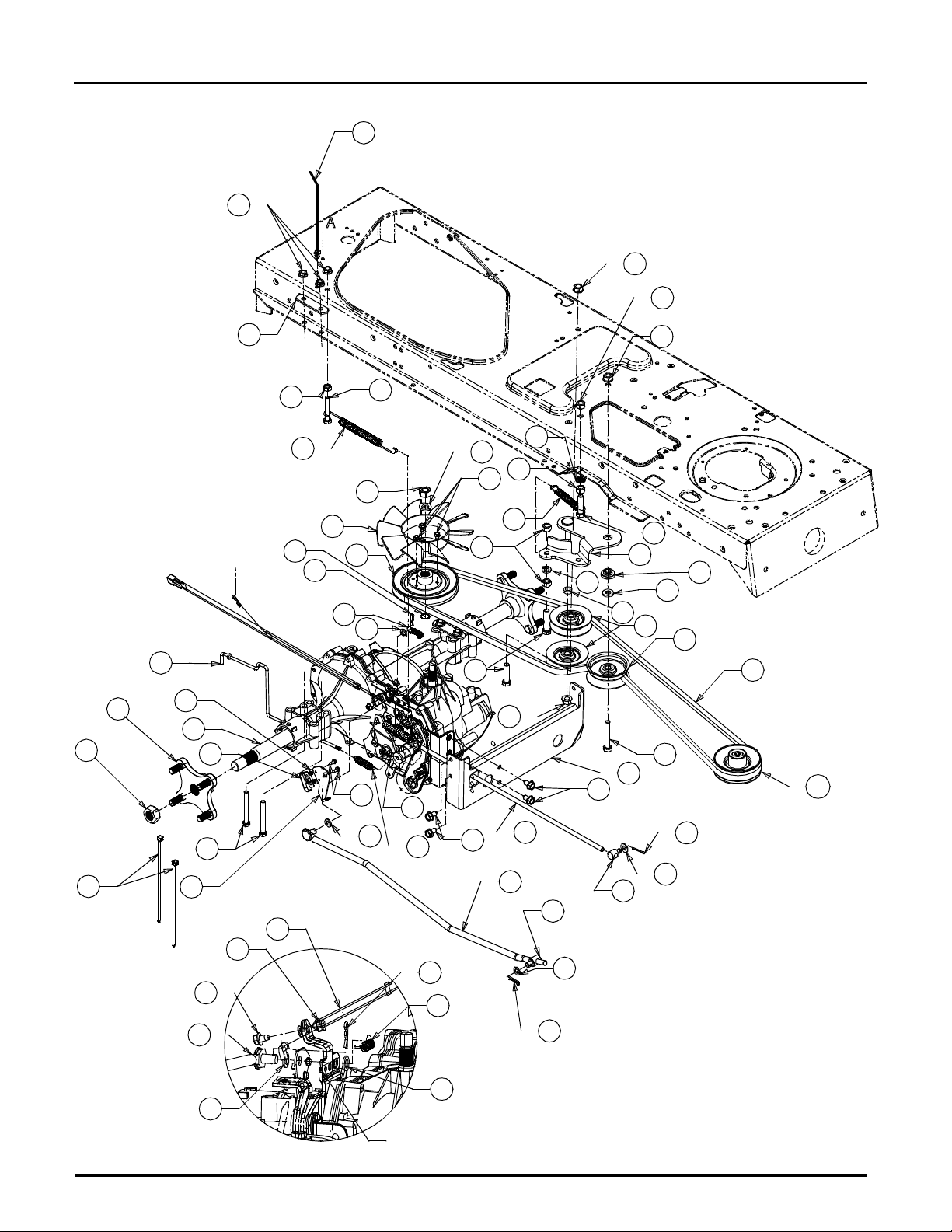

DRIVE SYSTEM

Attach Spring (732-1716) Here

33 49

-4-

DRIVE SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 17840 Bracket, Mounting, Transaxle 2

2 618-0365 Hub Assembly, Wheel 2

3 618-0667 Transmission, Hydrostatic 1

4 629-0949A Harness Assembly, Ground & Reverse 1

5 683-0251 Bracket Assembly, Idler, Center Dbl 1

6 710-0176 Hex Cap Screw, 5/16-18, 2.75, Gr5 4

7 710-0227 Screw, #8-18, 0.500 2

8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3

9 710-0604A Screw, 5/16-18, 0.625 6

10 710-0653 Screw, 1/4-20, 0.375 1

11 710-3007 Screw, #12-24, 0.375 3

12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1

13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1

14 711-0677 Ferrule, 5/16-18 x .312 Dia 1

15 711-0832 Ferrule, 3/8-24 x .375 Dia 1

16 712-0291 Nut, Hex Lock, 1/4-20 1

17 712-0333 Nut, Hex, 1/2-20, Gr2 1

18 712-0431 Nut, Flange Lock, 3/8-16 3

19 712-1329 Nut, 3/4-16, Grb, Hx 2

20 712-3004A Nut, Flange Lock, 5/16-18, Gr5 5

21 712-3010 Nut, Hex, 5/16-18, Gr5 1

22 712-3017 Nut, Hex, 3/8-16, Gr8 4

23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

24 714-0111 Pin, Cotter, 3/32, 1.0 1

25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2

26 725-1644 Switch, Spring, Short 1

27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1

28 726-0320 Plate, Insulator Nut 1

29 731-1449A Fan, Blade, 10” 1

30 732-0209 Spring, .48 OD x 2.03 Extension 1

31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1

32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1

33 732-0729 Ring, Wire 1

34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1

35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1

36 736-0140 Washer, Flat, .385 x .62 x .063 3

37 736-0169 Washer, Lock, 3/8 , Regular Duty 2

38 736-0275 Washer, Flat, .344 x .688 x .065 1

39 736-0921 Washer, Lock, 1/2 , Regular Duty 1

40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1

41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1

42 747-1149 Rod, Hydro Bypass 1

43 747-1150 Rod, Brake, Hydro 1

44 747-1151 Rod, Control, Hydro 1

45 750-0535 Spacer, .376 ID x .625 OD x .22 1

46 754-0640 Belt, V Type, Poly 1

47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2

48 756-0981A Pulley, Idler, Flat 2.75 OD 1

49 756-1166 Pulley, Input, 5.0 Dia 1

50 783-0810 Bracket, Transmission, Torque Hydro 1

51 783-1019 Bracket, Actuator, Switch 1

52 756-0639 Pulley, Engine, 3.56 Dia

-5-

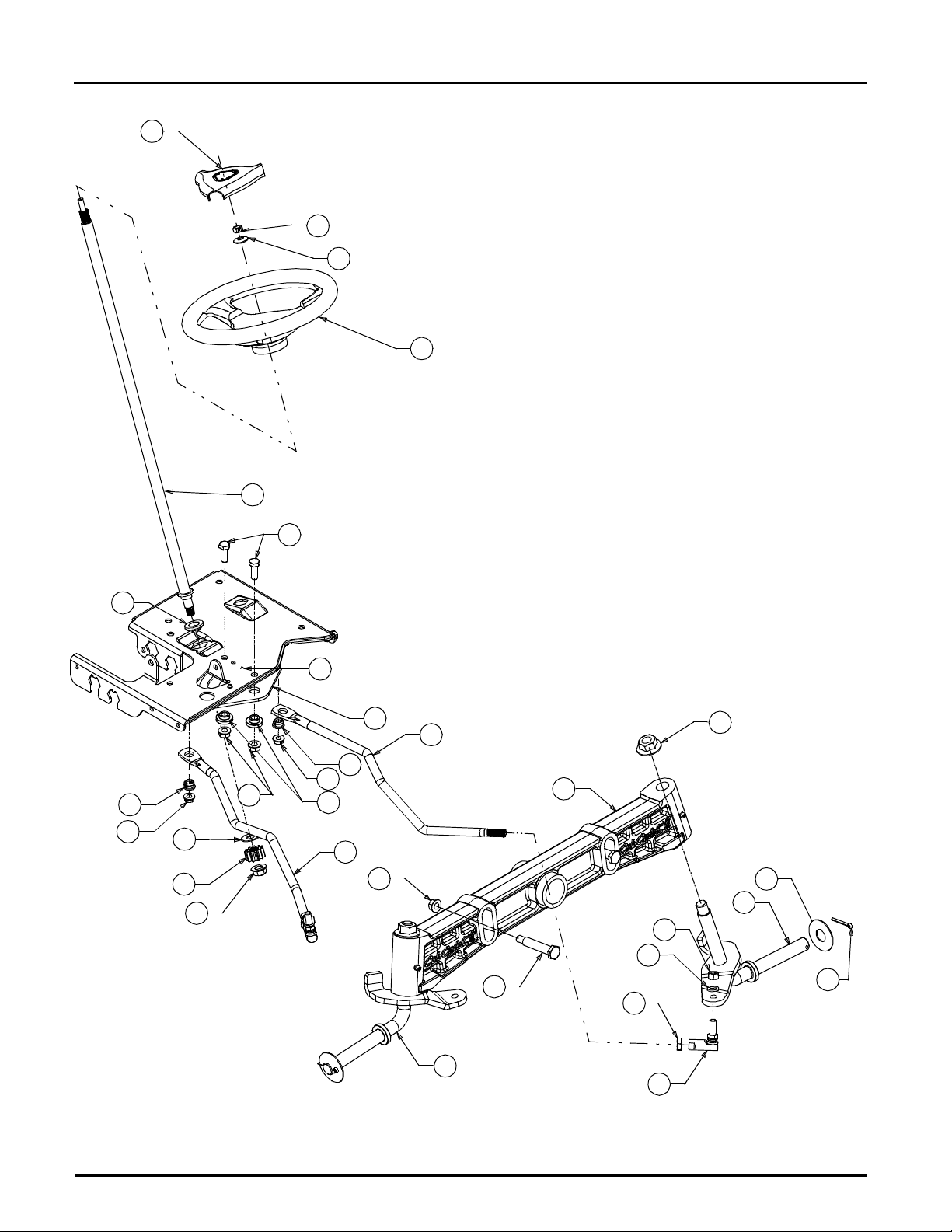

STEERING

-6-

STEERING

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2

2 711-1408 Link, Drag, RH 1

3 711-1409A Link, Drag, LH 1

4 712-0237 Nut, Hex Lock, 5/16-24 1

5 712-0240 Nut, Jam, 7/16-20, Gr2 2

6 712-0241 Nut, Hex, 3/8-24, Gr5 2

7 712-0431 Nut, Flange Lock, 3/8-16 4

8 712-0459 Nut, Flange Lock, 7/16-20 1

9 712-3004A Nut, Flange Lock, 5/16-18 2

10 717-1550D Gear, Steering, 11/90 Ratio 1

11 717-1554 Gear, Pinion, Steering 1

12 723-0610 Ball Joint, 7/16-20 2

13 736-0169 Washer, Lock, 3/8 , Regular Duty 2

14 736-0242 Washer, Bell, .340 x .872 x .060 1

15 736-3084 Washer, Flat, .510 x 1.120 x .060 1

16 737-3007 Grease, Alvania Ep 2 1

17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2

18 738-1194 Shaft, Steering, .625 OD x 25.00 Lg 1

19 741-0475 Bushing, Plastic, .380 ID 2

20 741-0656 Bearing, Hex Flange, 5/8 1

21 683-0605 Axle Assembly, LH .750 Dia 1

22 683-0606 Axle Assembly, RH .750 Dia 1

23 712-0417A Nut, Hex, Flange, 5/8-18 2

24 714-0162 Pin, Cot, 5/32, 1.25 2

25 719-0583 Axle, Pivot, Cast .750 Dia 1

26 736-0866 Washer, Flat, .755 x 1.92 x.060 2

27 738-1011 Spacer, Shoulder, .500 x 2.230, 3/8-16 2

28 731-3209 Wheel, Steering, Soft Grip, Three Spoke 1

29 731-3210 Cover, Steering Wheel 1

-7-

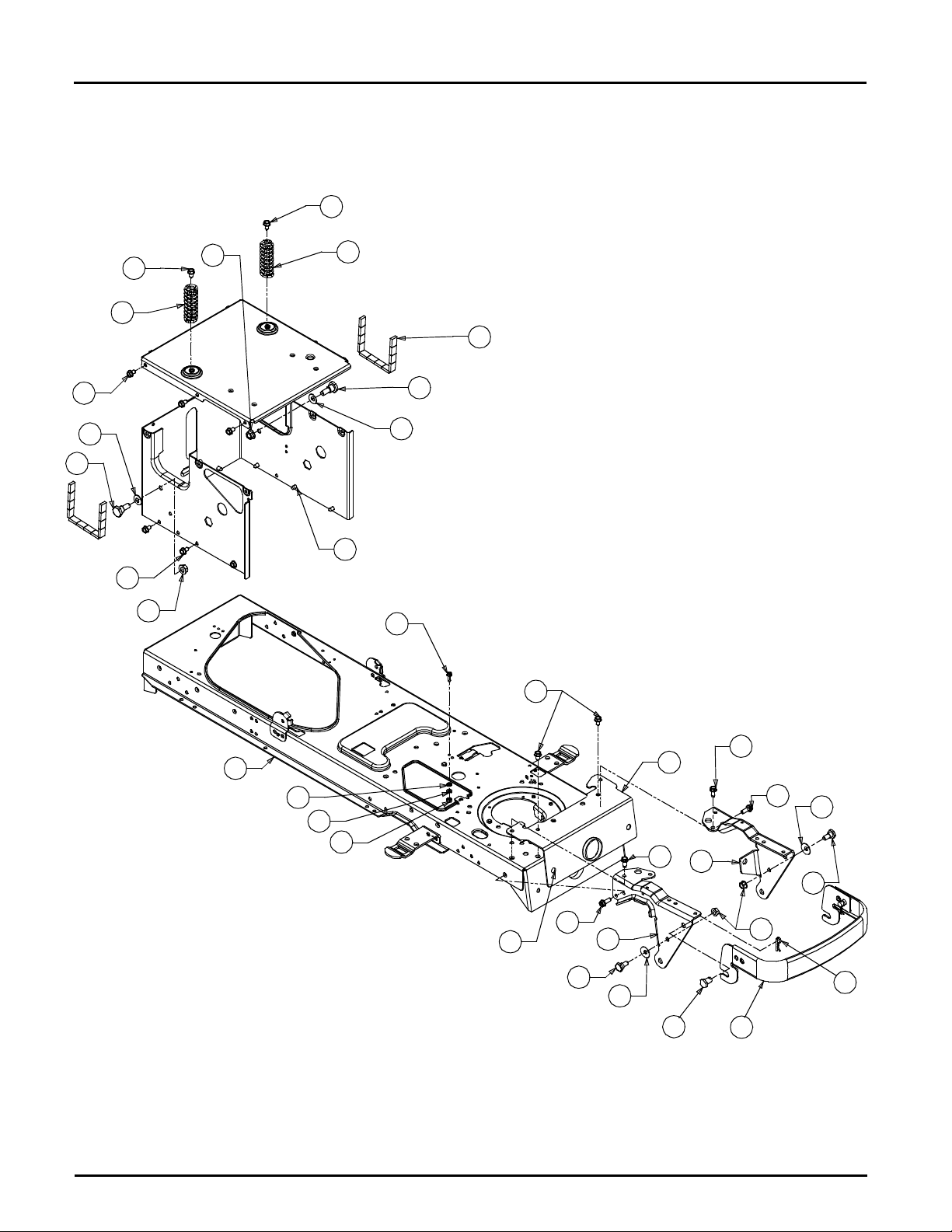

FRAME

23 21

710-0607 Used

At This Location Only

-8-

FRAME

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 683-0304A Frame Assembly, Lower 1

2 683-0612 Bumper Assembly 1

3 710-0604A Screw, Self-tapping, 5/16-18, 0.625 19

4 710-0607 Screw, Self-tapping, 5/16-18, 0.500 1

5 710-0642 Screw, Self-tapping, 1/4-20, 0.750 1

6 710-1238 Screw, 5/16-18, .875, Gr5 2

7 710-1260A Screw, 5/16-18, 0.750 2

8 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2

9 712-0431 Nut, Flange Lock, 3/8-16 2

10 712-0459 Nut, Flange Lock, 7/16-20 2

11 712-3006 Nut, Hex, 1/4-20, Gr5 1

12 714-0145 Pin, Click, .092 x 1.64 Lg 2

13 732-3080A Spring, Compression, 1.28 OD x 3.50 Lg 2

14 736-0222 Washer, Lock, Ext 1/4 2

15 736-0329 Washer, Lock, 1/4, Regular Duty 1

16 736-0331 Washer, Bell, .390 x 1.13 x .062 2

17 736-0407 Washer, Bell .45 x 1.00 x .062 2

18 737-3007 Grease, Alvania Ep 2 1

19 738-0143 Shoulder Screw, 3/8-16 2

20 738-1020 Shoulder Screw .625 x .500, 7/16-20 2

21 783-0726B Bracket, Pivot, Support RH 1

22 783-0727A Bracket, Pivot, Support LH 1

23 783-0728 Bracket, Pivot, Bar 1

24 783-1462 Frame, Upper, Cub 1500 1

25 783-1463 Bracket, Frame, Seat 1

26 722-3022 Foam Tape, .625 x .25 18

-9-

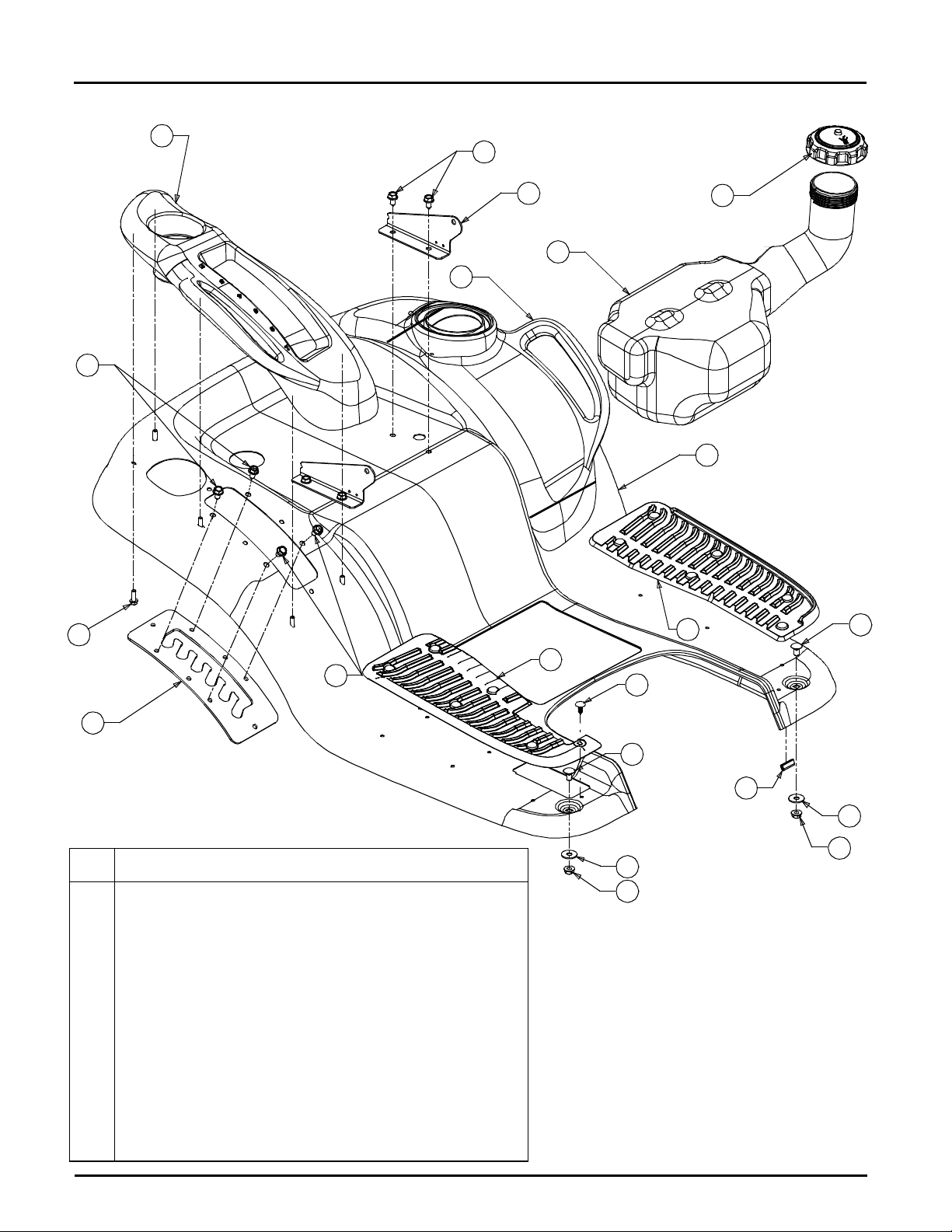

FENDER & FUEL TANK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2

2 710-0604A Screw, 5/16-18, 0.625 8

3 710-0895 Screw, 1/4-15, 0.750 9

4 712-3004A Nut, Flange Lock, 5/16-18 2

5 731-0511 Strip, Trim 1.5

6 731-2616 Cover, Fender, RH 1

7 731-2617 Cover, Fender, LH 1

8 736-3078 Washer, Flat, .349 x 1.00 x .063 2

9 783-0677 Bracket, Lift, Adjustment 1

10 783-1461 Fender 1

11 783-1489 Bracket, Seat, Mount 2

12 726-3046 Clip, Ratchet, .250 Dia 12

13 735-0697 Pad, Foot, LH 1

14 735-0698A Pad, Foot, RH 1

15 751-0819 Tank, Fuel 1

16 751-3124B Cap, Fuel 1

11 16
