Cessna Swapping GIA 1 User manual

Version 1.0

Swapping GIA 1 & GIA 2 (GIA 63W) on Citation M2

Garmin G3000 Software Version 10

Caution: Before starting the software or configuration loading process, certain

items may be required to be recorded first, to prevent loss of

information or settings. See Section 1 for details.

Caution: Make certain that all SD cards are available before starting. These are

usually located in a blue pouch onboard the aircraft (usually in AFM).

Caution: Follow all steps in a given section for specific loadings. Failure to do so

will result in probable rework.

Caution: Ensure that power is available through a GPU so that power is not

interrupted during the loading process.

Note: This document is to supplement, not replace, the Cessna Citation M2

MM, and Garmin G3000 LMM.

Note: Reference latest revision of the Garmin G3000 LMM 190-01668-00.

Table of Contents

Introduction G3000 System Familiarization

Section 1 References Prior to Certain Software and Configuration Loading

Section 2 Software and Configuration Loading

Section 3 Reinstalling Options

Section 4 Final Verification / Return to Service

Section 5 Troubleshooting

Appendix A Configuration ID / CRC Numbers

Version 1.0

Introduction G3000 System Familiarization

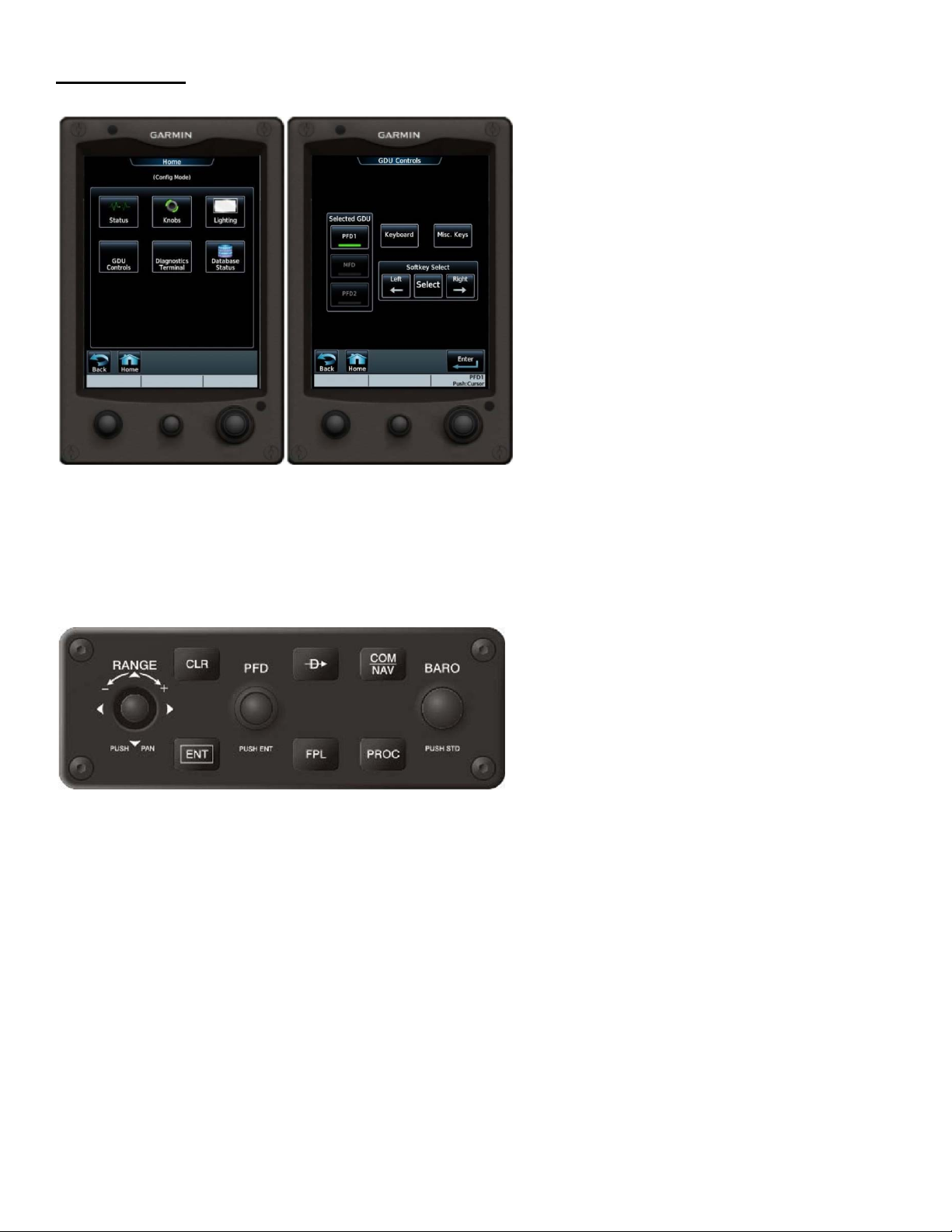

When in configuration mode, select GDU controls on left side of GTC 1. Ensure that PFD 1 is

selected on the screen. The dual concentric knobs on the lower right bezel will be utilized, and

throughout this document will be referred to as the FMS small and large knob. The Enter

button will be in the lower right part of the screen.

As an alternative, you can use the dual concentric knobs (labeled PFD) and Enter button on the

GCU-275 controller mounted above PFD 1.

Version 1.0

Section 1 References Prior to Certain Software and Configuration Loading

When swapping GIA 63W from side to side the following steps must be completed first:

Note: This is with the G3000 powered up in normal mode.

Caution: If any optional radio appears to have an amber X and is grayed out as in this

example, then the LRU is not installed, but was previously loaded incorrectly.

Do not load this option during the procedures in section 3.

Determine Options Installed

•Single GSR56

oOn either GTC 570, select the SERVICES / TELEPHONE button, then select

Telephone. A single Iridium transceiver is displayed on the left side.

•Dual GSR56

oOn either GTC 570, select the SERVICES / TELEPHONE button, then select

Telephone. A double Iridium transceiver is displayed on the left & right side.

Version 1.0

•GDL69

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch

Weather Selection. The option is installed if Sirius XM Settings is displayed.

•Becker ADF

oADF controls are seen on the AUDIO & RADIO screen of either GTC 570.

•GDR66

oGDR or Datalink controls are seen on the AUDIO & RADIO screen of either GTC

570. Should appear as one of the 2 images below. It may say COM3 or GDR.

•HF9000

oHF9000 controls are seen on the AUDIO & RADIO screen of either GTC 570.

•Cabin Briefing

oFrom the Home screen of either GTC 570, select AIRCRAFT SYSTEMS. The option is

installed if Cabin Briefing is displayed.

Version 1.0

•GSR56 Weather

oFrom the Home screen of either GTC 570, touch the Weather button. Then touch

Weather Selection. The option is installed if CONNEXT WEATHER is displayed.

Should be if a single or dual GSR 56 is installed.

•DME 2

oSecond DME controls are seen on the AUDIO & RADIO screen of either GTC 570.

•Synthetic Vision

oOn the PFD, select PFD Settings, then select Attitude Overlays. Synthetic Terrain is

displayed. Also, there should be an unlock SD card present.

•TAWS Class A

oFrom the Home screen of either GTC 570, select the TAWS button. Then select

TAWS Selection button. TAWS A is loaded if there are 6 buttons displayed on the

page. Otherwise TAWS B is loaded as default. Also, there should be an unlock SD

card present. Note: First image is TAWS B, and second image is TAWS A.

Version 1.0

•TCAS II

oFrom the Home screen of either GTC 570, select the transponder button in the

upper right part of the screen. TCAS II option is loaded if there are 5 buttons on

the left side of the screen. Otherwise, TCAS I is loaded. Also, there should be an

unlock SD card present. Note: First image is TCAS I, and second image is TCAS II.

•Windshear

oThe Windshear option can be determined by viewing the PFD during power up.

During the self test, there should be a ‘WNDSHR TEST’ white message just to the

right of the airspeed tape. Also, there should be an unlock SD card present.

•Doppler & Turbulence

oFrom the Home screen of either GTC 570, select the Weather button. Then select

Weather Selection button. Select the WEATHER RADAR SETTINGS button and the

TURBULENCE DETECTION button will be visible. Also, there should be an unlock

SD card present.

Version 1.0

•CPDLC

oThe CPDLC button is available on the home screen of either GTC. Also, there

should be an unlock SD card present.

Radar Trim Settings

•Go into the left GTC:

oUse Back button and select Aircraft Systems.

oSelect Maintenance.

oEnter CACCDMS for password.

oSelect Radar Trim.

Record Pitch Trim Value= ____________

Record Roll Trim Value= ____________

oIf the Radar trims were not both at zero originally:

Select Restore Defaults.

oSelect Home.

Select Utilities.

Select Setup.

Select Avionics Status.

Select the Airframe Tab on the left side.

Record the Config ID now that the radar trims are zero= ____________

•This is for reference in case it is needed later.

Version 1.0

Section 2 Software and Configuration Loading

This section will provide the steps necessary to target load the software and configuration into

GIA 1 & GIA 2 after swapping.

Note: Anytime that software or configurations are being loaded, all three displays, and both

touch controllers must be in configuration mode.

Note: Ensure that you have completed the steps contained in Section 1.

•GIA 63W GIA 1 & GIA 2 (Integrated Avionics)

•When GIA 1 & GIA 2 units are swapped, then software and configuration loading is

required.

1) Pull the following circuit breakers:

L PFD

MFD

R PFD

L Touch Control

R Touch Control

2) Insert the 010-01121-10 software loader card into the upper slot of PFD 1.

3) Turn on aircraft power.

4) Press and hold the right knob on the left GTC and push the L Touch Control circuit

breaker in.
