Car-Interface CI-RL2-MBN45 User manual
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Video-inserter
CI-RL2-MBN45
Compatible with Mercedes Benz vehicles
Generation NTG4.5 with Command Online or Audio20
with 4pin HSD LVDS connector on the monitor
Video-inserter for rear-view camera
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
CVBS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL/NTSC compatible
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page2
Contents
1. Prior to installation
1.1. …Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors
1.3.1. CAN-bus box
1.3.2. Video-interface
1.4. Dip-switch settings
1.4.1.1. …Enabling the interface’s video inputs (dip 2-3)
1.4.1.2. Rear-view camera setting (dip 5)
1.4.1.3. Monitor selection (dip 7-8)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection - video-interface and CAN-box
2.4. Connection - factory monitor
2.5. Connection - head-unit
2.6. Connecting –video sources
2.6.1. Audio-insertion
2.6.2. After-market rear-view camera
2.6.2.1. Case 1: CAN-box detects reverse gear
2.6.2.2. Case 2: CAN-box does not detect reverse gear
2.7. Connection video-interface and keypad
2.8. Picture settings and guide lines
3. Interface operation
3.1. By infotainment key
3.2. By keypad
4. Specifications video-interface
5. Frequently asked questions
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. If
available, we offer free software-updates for our interfaces for one year after purchase. To
receive a free update, the interface must be sent in at own cost. Labor cost for and other
expenses involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation.
Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page4
Voraussetzungen
Brand
Model
Navigation
Mercedes
A-class (W176) since 07/2012 up to 08/2015
B- class (W246) since 11/2011 up to 10/2014
C- class (W204) since 03/2011 up to 10/2014
C- class Coupé (C204) since 06/2011 up to about 2014
CLA-Coupé (C117) since 01/2013 up to about 09/2014
CLS-Coupé (C218) since 06/2011 up to about 07/2014
E- class (S/W212) since 06/2011 up to about 10/2014
E- class Coupé (C207) since 06/2011 up to about 05/2015
G-model (G463) since 07/2012 up to 09/2016
GL- class (X166) since 11/2012 up to 08/2016
GLA- class (X156) since 09/2013 up to about 08/2015
GLK- class (X204) since 01/2011
ML- class (W166) since 11/2011 up to 07/2015
SLK- class (R172) since 03/2011 up to about 2015
SL- class (R231) since about. 2012 up to about 09/2015
Comand Online
NTG4.5
Audio20 NTG4.5
Both with 4-Pin HSD
connector at the
monitor
Not compatible with
dual-view monitors!
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio insertion a factory audio-AUX input or FM-modulator
is required. For AUX option coding we offer OBD-N45-X-01.
Factory media interface If available, its AUX cable with 3.5mm jack (available at MB), can
be used for audio insertion. While used for audio insertion, the
Apple adapter or USB adapter cannot be used simultaneously.
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view
camera only while reverse gear is engaged. To delay the switch-
back time, additional electronics is required.
PDC and guidelines If the video interface does not receive the required information
from the vehicle CAN-bus, neither guide-lines nor optical PDC
display will be supported.
1.2. Checking the compatibility of vehicle and accessories
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page5
1.3. Boxes and connectors
1.3.1. CAN-bus box
The CAN-bus box reads digital signals from the vehicle’s CAN-bus and converts them for the
video-interface.
1.3.2. Video-interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page6
1.4. Dip-switch settings
Some settings must be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
See following chapters for detailed information.
1.4.1.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video interfaces inputs.
1.4.1.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface witches to its rear-view camera input CAM while the reverse gear
is engaged.
1.4.1.3. Monitor selection (dip 7-8)
Dips 7 and 8 customize the monitor-specific video settings which sometimes even vary
within head units of the same version, caused by different monitor specifications. It is
necessary to try all possible combinations while a working video source is connected to the
chosen input of the interface (both OFF, both ON, 7 OFF and 8 ON, 7 ON and 8 OFF). One of
the 4 combinations will show the best picture size and quality (some may give
no picture/black picture). It is possible to first hot plug through the dip combinations. If
there is no change of picture visible after trying all 4 options, retry and disconnect the 6pin
plug of the video intzerface between every change of the dip setting.
After each Dip-switch-change a power-reset of the Video Interface has to be performed!
Dip
Function
ON (down)
OFF (up)
1
No function
-
set to OFF
2
Video 1 input
enabled
disabled
3
Video 2 input
enabled
disabled
4
No function
-
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
Monitor specific
adjustments
Try all 4 possible combinations of Dips 7 and 8 to receive
the best picture (in quality, size and in case of black
picture)
8
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
The interface shell be installed on the backside of the factory monitor and head-unit.
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page8
2.2. Connection scheme
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page9
2.3. Connection - video-interface and CAN-box
The CAN-bus box reads digital signals from the CAN-bus and converts them for the video-
interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A (green of 6pin)
constant signal. Video-source switching (white of 6pin) as +12V impulse.
Connect theblack female 10pin connector of the Quadlock harness to the male 10pin
connector of the CAN-box.
Connect the white female 6pin connector of the 6pin to 8pin cable to the male 6pin
connector of the video-interface.
Connect the black female 8pin connector of the 6pin to 8pin cable to the male 8pin
connector of the CAN-box.
Note: Check the LEDs on CAN-box after reconnecting the battery, two must be on.
Not all vehicles are kompatible. If the CAN-box does not deliver ACC to pin2 of the video-
interface or blocks the thevehicle’s CAN, it is possible to install the video interface without
the CAN-box. In this case see also note in chapter after-market rear-view camera if one is
supposed to be connected.
Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45
Page10

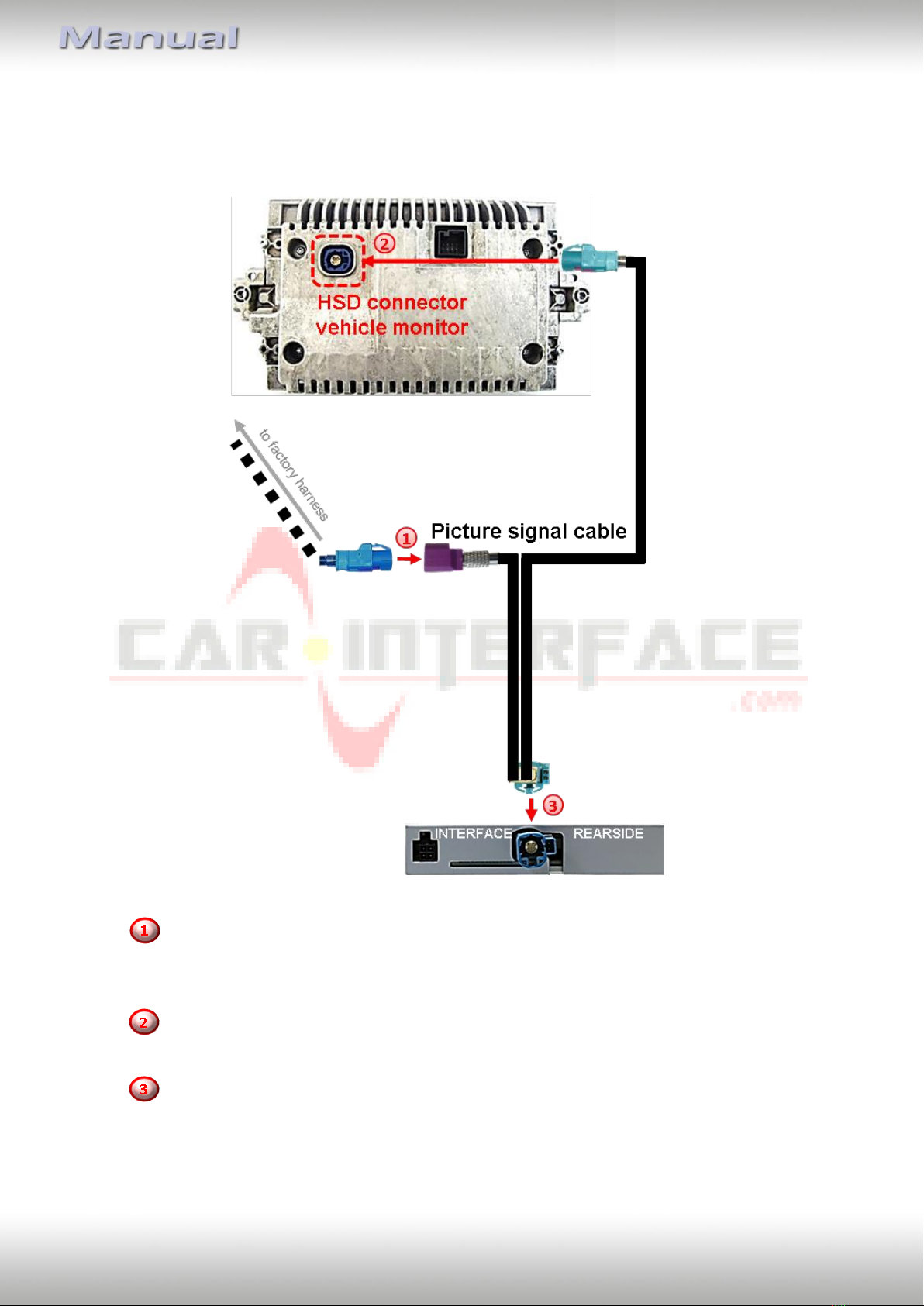

2.4. Connection - factory monitor
Remove factory monitor.
Remove the blue female 4pin HSD connector from the rearside of the factory
monitor and connect it to the aubergine colored male 4pin HSD connector of the
picture signal cable.
Connect the waterblue colored female 4pin HSD connector of the picture signal cable
to the white male 4pin HSD connector of the factory monitor.
Connect the waterblue colored female HSD+2 connector of the picture signal cable
to the male HSD+2 connector of the video-interface.
Note: No liability for vehicle wire colours and pin definition!
Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer..
