Bristan CR SHXDIVFF C Wiring diagram

Isolation 2

Remove the concealingRemove the concealing

cap from the shroud.cap from the shroud.

Operation

Identify the

required positition of

the valve and prepare

the water supply pipes.

Supply pipes should be

150mm apart.

Using the backplate

supplied with the

wallmount, mark and

drill holes.

Secure the isolatorSecure the isolator

onto the backplateonto the backplate

ensuring the olive isensuring the olive is

positioned over thepositioned over the

pipework correctly.pipework correctly.

Push shrouds to thePush shrouds to the

back of the wall outlet,back of the wall outlet,

securing them againstsecuring them against

the rubber ﬁxing platethe rubber ﬁxing plate

IMPORTANT

Pack Contents

150mm

Centres

1.0

5.0

Pressure

BAR

0.2

4.0

2.0 3.0

Pressure

BAR

1.0

5.0

0.2

4.0

2.0 3.0 60°C

65°C

Speciﬁcations

Maximum Static Pressure: 10.0 bar

Inlet Water Temperature

15mm

Compression

Inlet Connections

Min: 0.2 bar Max: 5.0 bar

Working Pressures

The inlet hot water must

be at least 10°C above the

required blend temperature.

Factory pre-set

42°C

Inlet Dimensions

5°C

25°C

Cold Water Supply

Min: 5°C Max: 25°C

Hot Water Supply

Tools You’ll need

Flat head Screwdriver Cross head Screwdriver Hexagonal Keys Socket SpannerPipe CutterPencil Drill Spanner

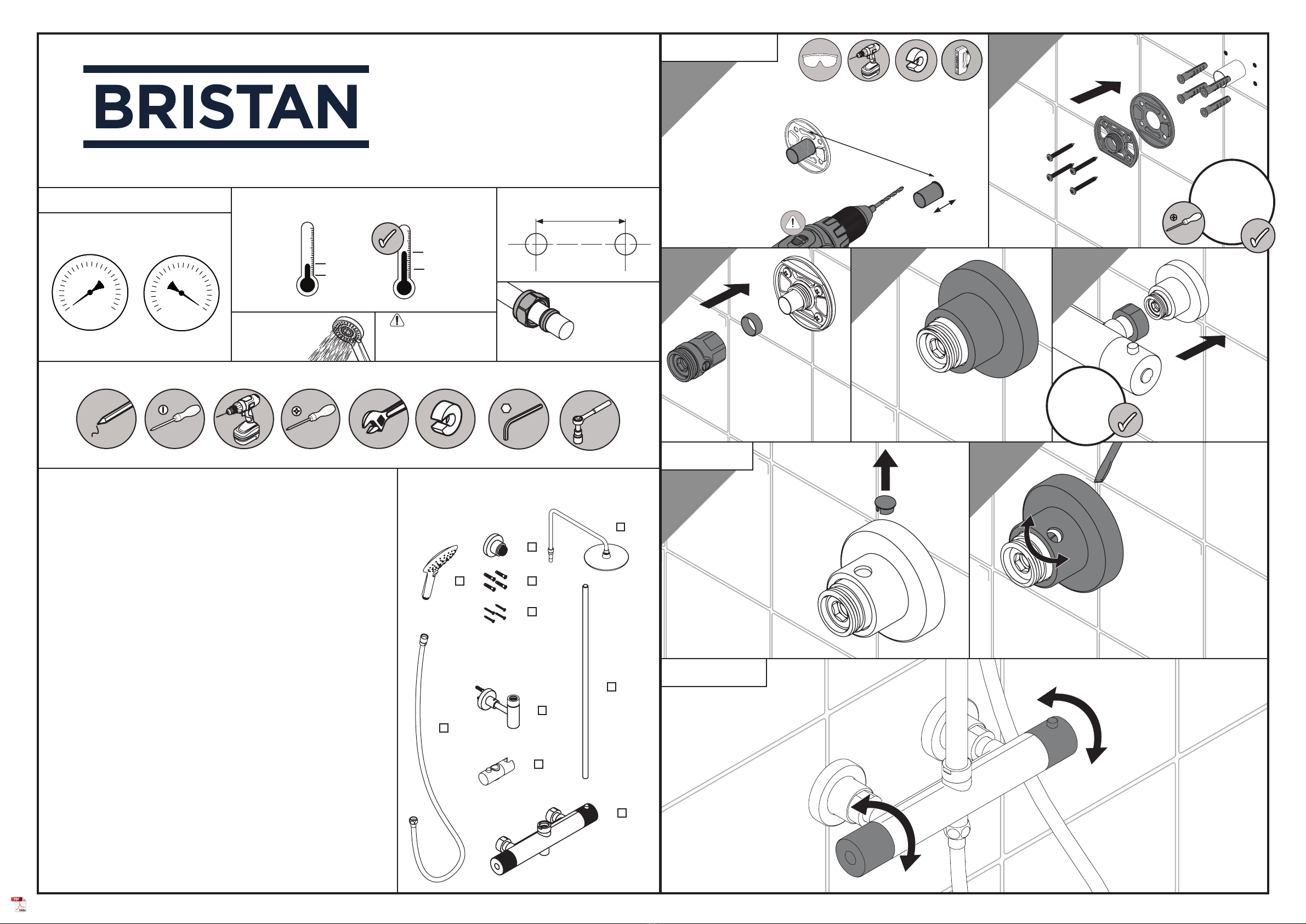

Installation Instructions

& User Guide

Please leave these instructions

with the end user

Product Code: CR SHXDIVFF C (D6)

All products manufactured and supplied by Bristan are safe to use provided that

they are installed, operated and receive regular maintenance in

accordance with these instructions.

This product needs to be installed in accordance with, and meet the

requirements of the Water Supply (Water Fittings) Regulations 1999 and

current by-laws. For full Installation Requirements & Notes (IRN) please

visit wras.co.uk/directory.

Isolation valves must be ﬁtted to the inlet water supplies to ensure ease of future

maintenance.

Before installing this product the water supply must be thoroughly ﬂushed in

order to remove any swarf, solder etc.

This product must not be modiﬁed in any way as this will invalidate the

guarantee.

Full access must be made available for future maintenance/servicing purposes.

Before drilling into walls, check that there are no hidden electrical wires,

cables or water supply pipes. This can be checked with the aid of an

electronic detector.

If power tools are used do not forget to:

- Wear eye protection

- Unplug equipment after use

If in doubt, contact a registered plumber or your Local Water Authority or

the Secretary of the Institute of Plumbing, address as follows:-

The Institute of Plumbing,

64 Station Lane,

Hornchurch,

Essex,

RM12 6NB, Tel: 01708 472791

Prior to Installation

Installation

60-65°C Recommended

REMEMBER

hot on the left,

cold on the

right

150mm Centres

Secure the rubber backplateSecure the rubber backplate

and backplate into place.and backplate into place.

Secure the shower toSecure the shower to

the wall mount.the wall mount.

21mm21mm

REMEMBER

To service

your

product!

HotHot

ColdCold

HandsetHandset

Fixed HeadFixed Head

Rotate the shroud untilRotate the shroud until

the opening aligns withthe opening aligns with

the isolation screw.the isolation screw.

Turn the screw to isolateTurn the screw to isolate

the water. Reverse thethe water. Reverse the

process when turningprocess when turning

the water back on.the water back on.

Turn ﬂow handle to ‘on’

position, letting temperature

stablise.

Turn cartridge spindle clockwise

to decrease the temperature.

Turn cartridge spindle

anti-clockwise to increase the

temperature.

Using the wall

mount, isolate

both shower inlets

before carrying out

any maintenance.

Unscrew the

cartridge using a

socket or box spanner.

Troubleshooting

To reduce the build up of

limescale and to ensure this

shower works to its maximum

performance we recommend

this shower is serviced every

6-12 months depending on the

hardness of your water.

To replace any spare parts for

your shower why not scan the

below QR Code and search for

your product.

Spare Parts

Servicing Intervals

Temperature Setting

Maintenance - Cartridge Cleaning

Symptom Cause Remedy

No ﬂow or

low ﬂow rate

partially closed isolation valve. Open isolation valve.

Instantaneous water heater cycles on and o

as ﬂow rate or pressure is too low.

Increase water ﬂow rate or

pressure through system.

Head of water is below the

minimum distance required.

2 meters minimum required.

Hot or cold water being drawn o elsewhere

causing pressure changes or instantaneous

boiler temperature changes.

Do not use other water outlets when using the taps.

Airlock or partial blockage in the supply

pipework.

Flush through pipework to ensure removal of debris and

any airlocks.

Water

dripping

from shower

This is normal for a short time after using the

shower.

This is caused by residual water tension, the build up of

water in the shower.

If water continues to drip,

possibly due to the cartridge

Remove cartridge and clean, refer to 'Maintenance' section

before starting any maintenance.

Shower does

not turn on

Closed isolation valve. Open isolation valve.

Mains water supply turned o. Turn on mains water supply.

REMEMBER

To service

your

product!

At Bristan, we want to make things as easy as possible for our customers. That’s why we oer solid guarantees on

all our products, eective from the date of purchase, to give you peace of mind.

To start your free guarantee simply scan the QR code and register your product.

Alternatively visit www.bristan.com/register.

For any other queries, please call our Customer Service on 0330 026 6273 where our expert team of advisors

will be able to oer you any help and advice.

For full guarantee terms and conditions visit www.bristan.com/guarantees.

Remove

temperature and

ﬂow handles

Remove O-rings

and soak all

components in

de-scaler and wash o in clean

water. Examine all seals and

replace if needed. Use WRAS

approved silicon based grease

on all seals.

Reverse steps 5-2 to

reinstall the valve,

cartridge and handles.

Turn the water

supply to the

shower back on.

Remove cartridge

retainer and

cartridge

Remove

temperature

handle

Replace

temperature

handle

Riser Installation 23

Attach handset and ﬁxed head.

To adjust the riser pull the top cap up and

use a hexagonal spanner to loosen the nut.

Pull rail to desired position then tighten the

nut and pull cap back down.

Attach shroud and

secure riser to bracket by

tightening grub screws.

Secure bracket to wall

using screws and plugs

provided.

Disassemble bracket, align on

the wall in the correct position

and mark location of holes to

be drilled.

Using a spirit level

to ensure the riser is

positioned correctly,

use the assembled

riser to mark the

desired position of the

brackets.

Push the riser rail

into the bracket and

screw to tighten.
