Installation

215-1497 Rev. G; ECM 11-08-011

Page 1 of 15 10/19/11

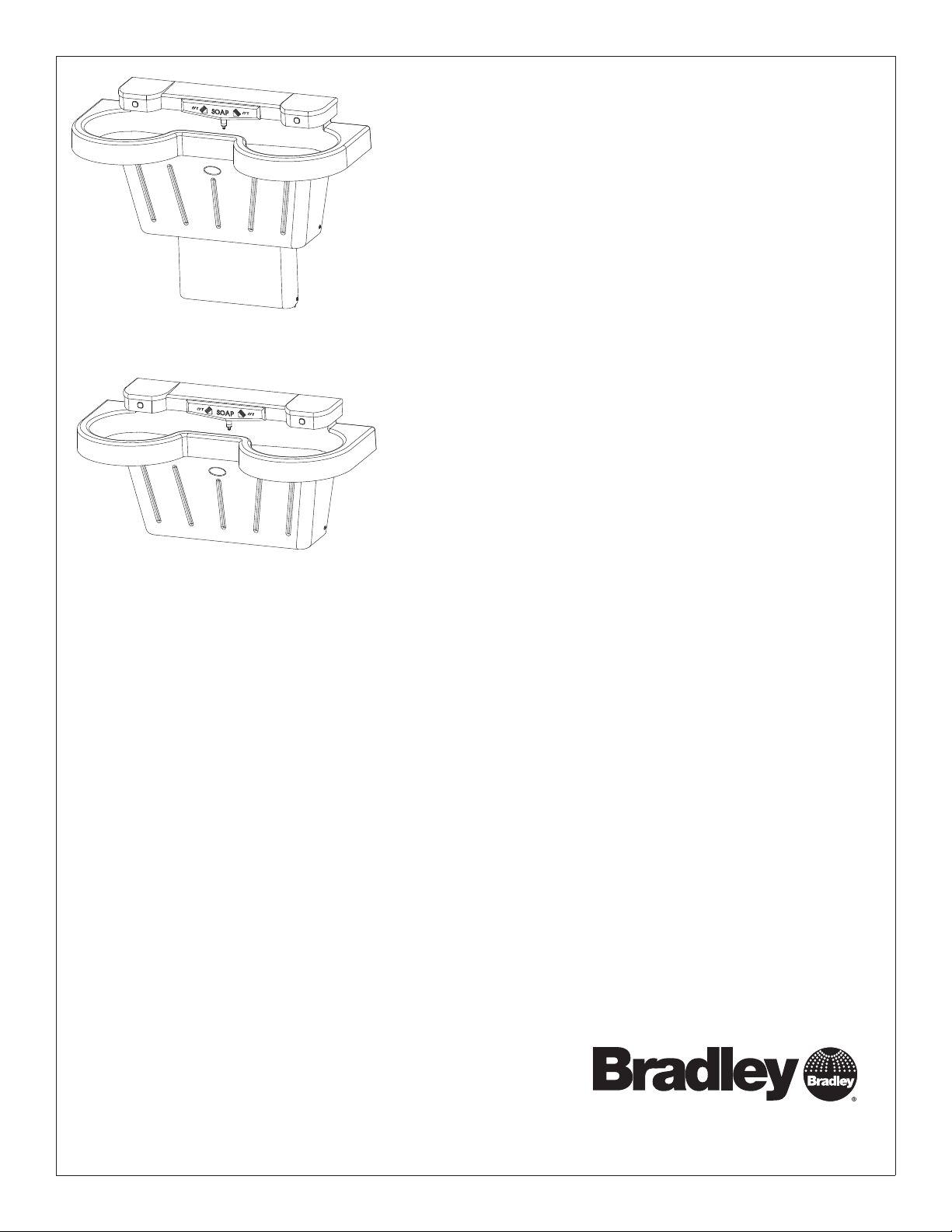

SS-2N/IR/STD

SS-2N/IR-WH

Express®Lavatory System SS-Series

Express Lavatory Systems are ADA and TAS compliant

U.S. Pat. Nos. 5,611,093, D447,224

Other Patents Pending

SS-2N/IR/STD/LSD-2

SS-2N/IR-WH/LSD-2

Table of Contents

Pre-Installation Information .........................2

Components....................................... 3

Supplies Required .................................4

Dimensions..................................... 4–5

Rough-Ins .........................................6

Installation .................................... 7–10

Sensor Assembly and Solenoid Valve Access........11

Solenoid Valve Troubleshooting.....................12

Navigator®Mixing Valve Troubleshooting ............13

Stop Valve Troubleshooting ........................14

Cleaning and Maintenance for Terreon®.............14

Soap Dispenser Maintenance ......................15

SS-2N/IR/STD, SS-2N/IR/WH Installation

210/19/11 Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011

IMPORTANT!

Read this entire installation manual to ensure proper installation. When ﬁnished with the

installation, ﬁle this manual with the owner or maintenance department. Compliance and

conformity to local codes and ordinances is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any

packaging material. If any parts are missing, do not begin installation until you obtain the missing

parts.

Make sure that all water supply lines have been ﬂushed and then completely turned off before

beginning installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to

installation. Electrical power MUST remain off until unit and optional water heater have been

plumbed. After installation is complete, turn on the water supply ﬁrst, then turn on the electrical

power.

Hardware supplied by installer must be appropriate for wall construction. Wall anchors must have

a minimum pull-out rating of 1,000 lbs. Follow appropriate dimensions for standard or juvenile

height based on conﬁguration and required rim height. Overtightening fasteners can damage the

Terreon®material. Use caution when tightening bowl and sprayhead fasteners.

Product warranties may be found in the “Products” section on our Web site at bradleycorp.com.

Installation

THIS

SIDE

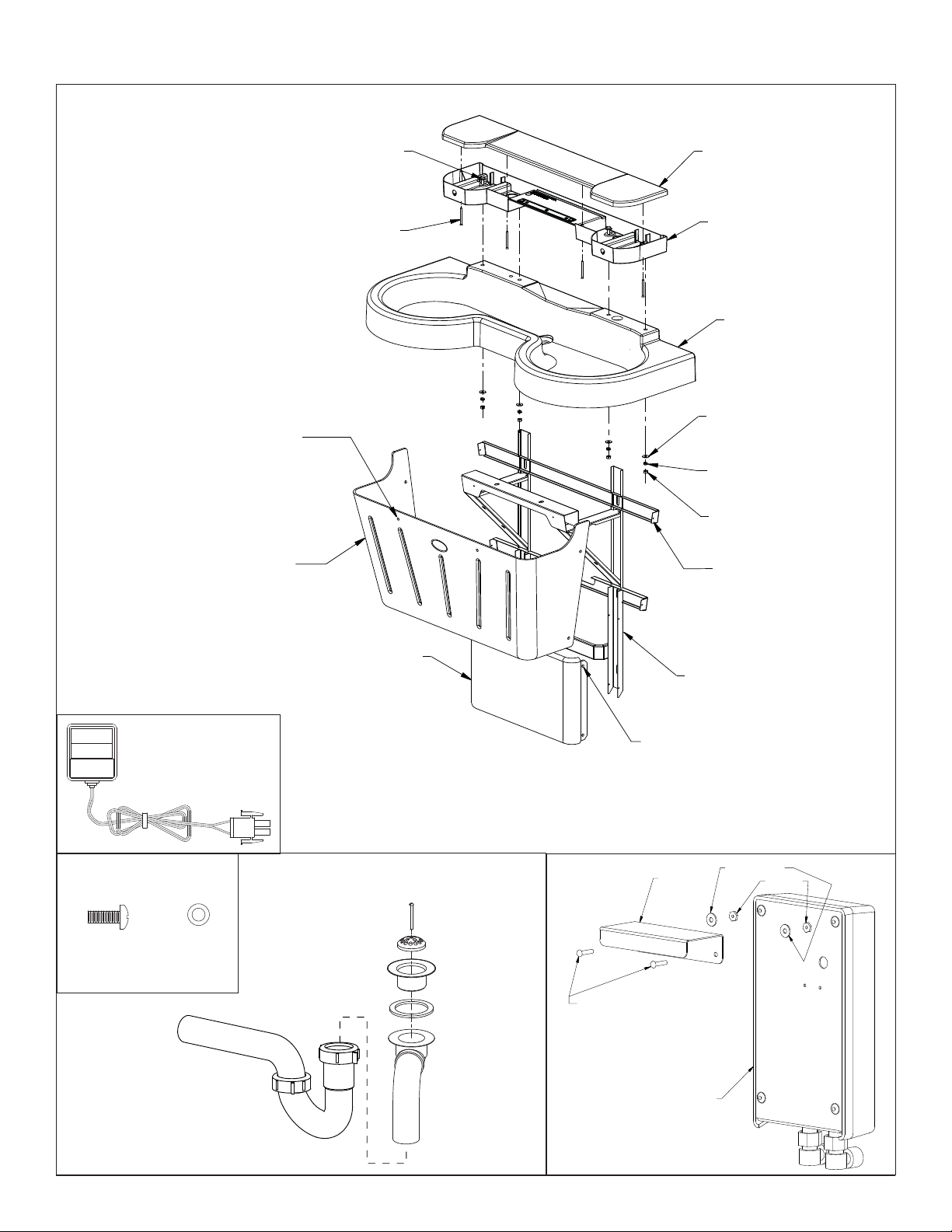

Packing List

•

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011 10/19/11 3

P-TRAP (POLYPROPYLENE)

(269-1697)

OPTIONAL P-TRAP

(CHROME-PLATED BRASS)

(S29-094)

#8-32 SCREW

(160-319)

STRAINER

(P16-075)

DRAIN PLUG

(P16-072)

1/8" RUBBER

WASHER

(125-001DP)

TAILPIECE

(129-056)

DRAIN

ASSEMBLY

BOLT 5/16-18

160-371

SCREW 10-24

160-386

WASHER

142-002BJ

LOCKWASHER

142-002BK

NUT 5/16-18

161-036

SCUFF BASE PANEL

GRAY (185-034)

PUTTY (185-034A)

COAL (185-034B)

SCUFF PANEL FASTENERS (160-450)

WASHERS (142-002CA)

(4) PLACES

SCUFF FRAME S17-326

USED WITH STANDARD

HEIGHT FRAME ONLY

MAIN FRAME

S17-325

PANE L

FASTENERS

(160-450)

WASHERS

(142-002CA)

(6) PLACES

ACCESS PANEL

GRAY (186-1455)

PUTTY (186-1455A)

COAL (186-1455B)

SPRAYHEAD COVER

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

SPRAYHEAD BODY

(PART NUMBER VARIES WITH

COLOR OF UNIT. CONTACT

YOUR LOCAL BRADLEY REP.

FOR ASSISTANCE).

BOWL

(PART NUMBER VARIES

WITH COLOR OF UNIT.

CONTACT YOUR LOCAL

BRADLEY REP. FOR

ASSISTANCE).

Components

#8-32 x 3/4"

ROUND HEAD

MACHINE SCREW

(160-276)

BRACKET

(140-950)

#8 WASHER

OPTIONAL WATER HEATER

EX95TMLB, 240/208 volts

(269-1767)

EX100TMLB, 277 volts

(269-1768)

#8 NUT

110/24 VAC

CLASS II PLUG-IN

TRANSFORMER

S83-152

1/4"-20 x 1/2"

PAN HEAD

SCREW (qty. 2)

(160-389)

1/4"-20

WASHER

(qty. 2)

(142-002DB)

BOWL MOUNTING

HARDWARE

SS-2N/IR/STD, SS-2N/IR/WH Installation

410/19/11 Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011

Supplies Required:

• (6) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) ³⁄₈" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• ½" nominal copper tubing for hot and cold supplies and 1½" NPT drain piping

• 110 volt GFCI protected electrical outlet for 1110/24 VAC plug-in transformer (supplied)

• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater

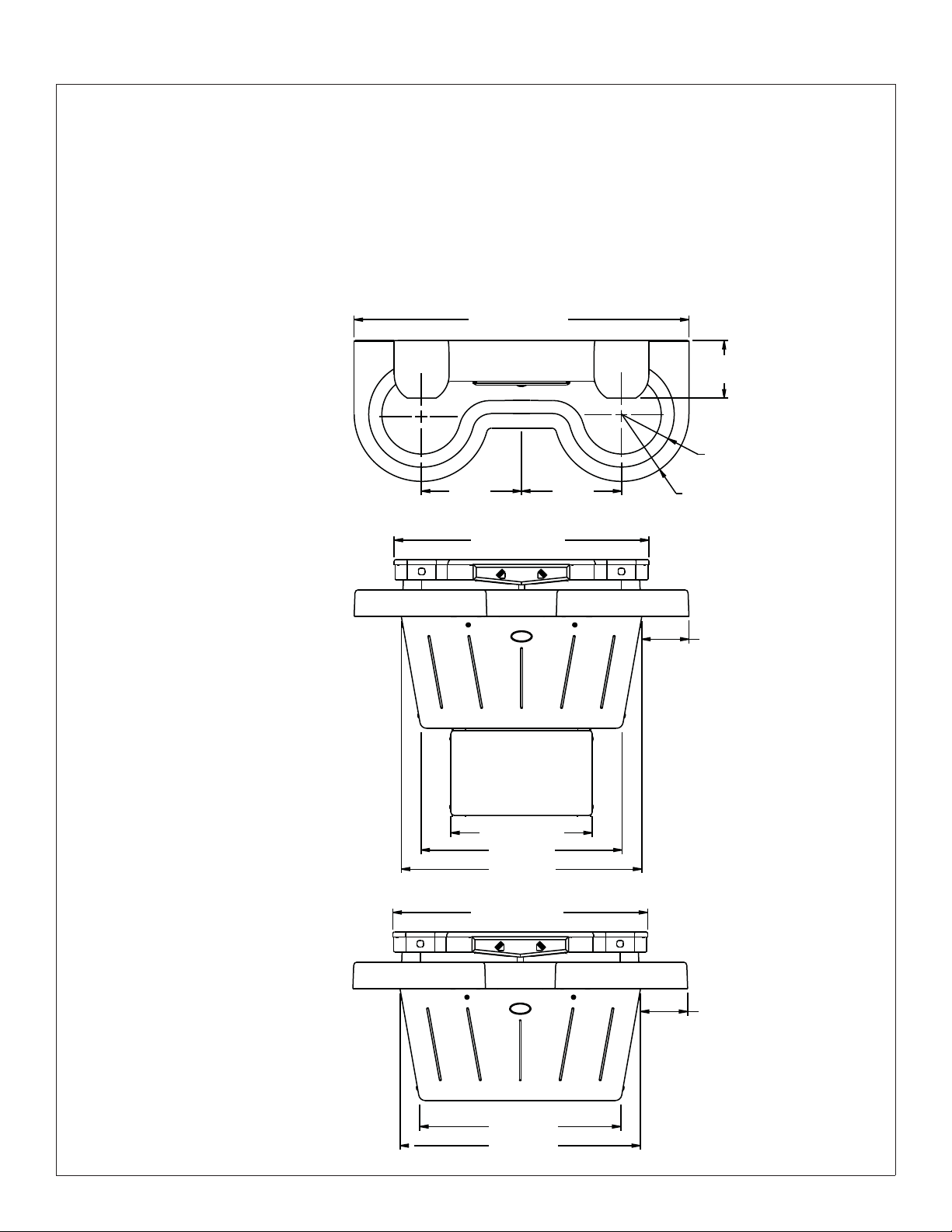

Dimensions - Front and Top Views

Top View

50" (1270mm)

Front View

Standard Frame

Front View

Wall-Hung Frame

5⁄8

" (219mm)

10" (254mm) Radius

8" (203mm) Radius

15"

(381mm)

15"

(381mm)

7" (178mm)

21¼" (540mm)

30" (762mm)

36" (914mm)

38¼" (972mm)

7" (178mm)

38¼" (972mm)

30" (762mm)

36" (914mm)

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011 10/19/11 5

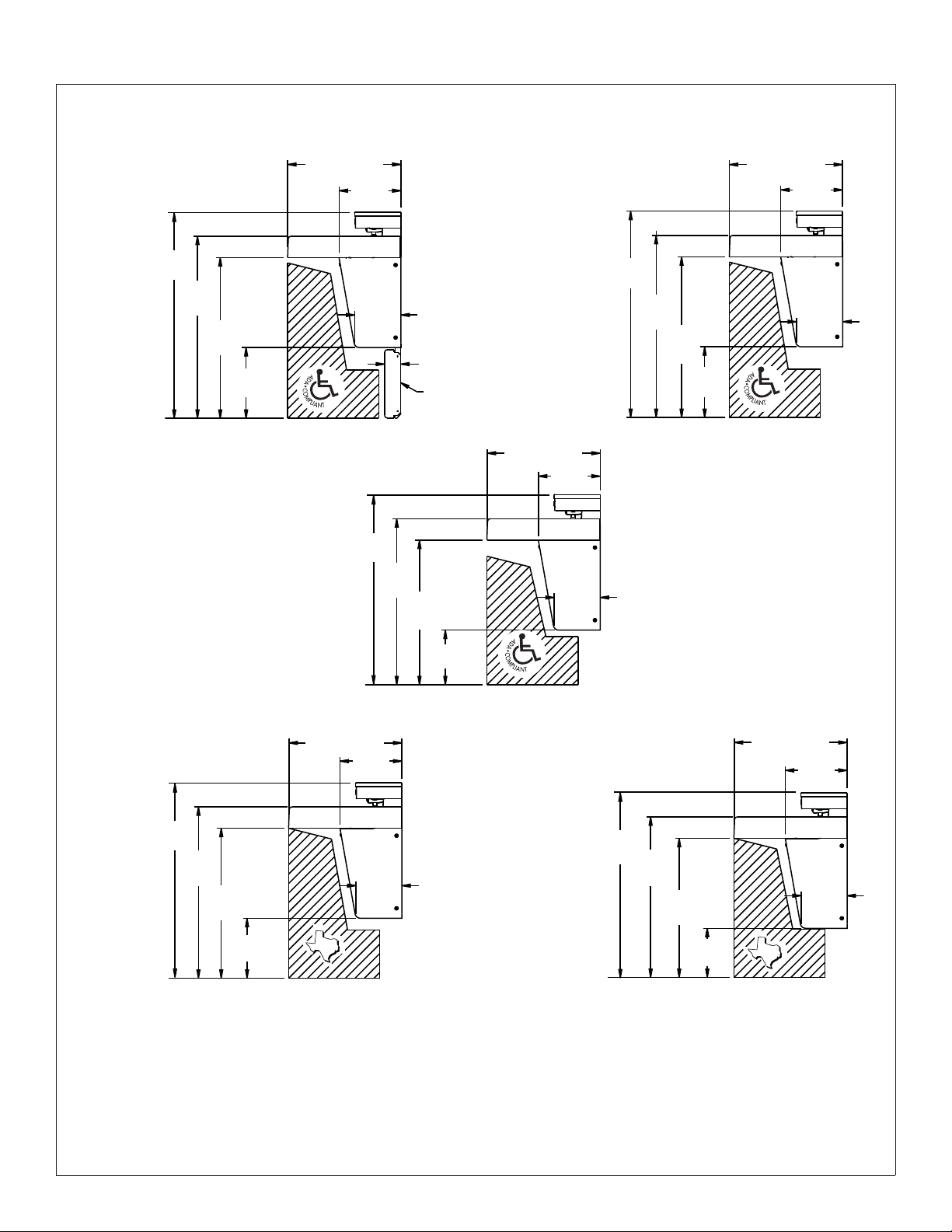

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6

through

8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K

through 5 or 6

211⁄8" (537mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

13¼"

(311mm)

11½"

(292mm)

Scuff Base on

Standard Height Only

3" (76mm)

85⁄8"

(219mm)

38½"

(978mm)

34"

(864mm)

30"

(762mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

13¼"

(311mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

85⁄8"

(219mm)

211⁄8" (537mm)

11½"

(292mm)

36½"

(927mm)

32"

(813mm)

28"

(711mm)

11¼"

(286mm)

35½"

(902mm)

31"

(787mm)

27"

(686mm)

10¼"

(260mm)

34½"

(876mm) 30"

(762mm)

26"

(660mm)

9¼"

(235mm)

SS-2N/IR/STD, SS-2N/IR/WH Installation

610/19/11 Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011

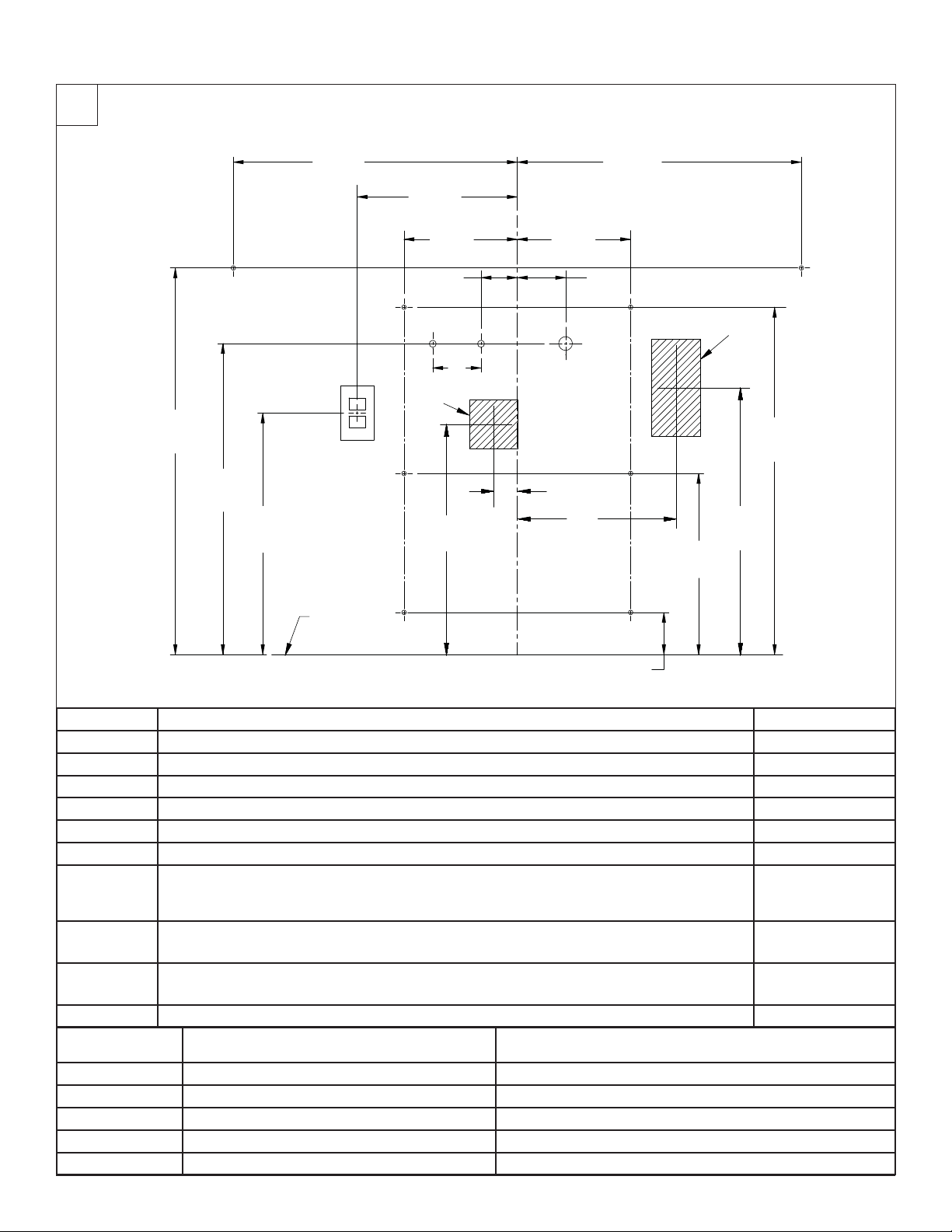

1Rough-Ins

CODE DESCRIPTION QTY.

A³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B³⁄₈" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4

C³⁄₈" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 ½" nominal copper tubing for Cold Supply, stub-out 2" from wall 1

D2 ½" nominal copper tubing for Hot or Tempered Supply, stub-out 2" from wall 1

E 1½" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the ¾" bowl mounting holes. Divide this measurement

in half. Measure and mark this dimension on the wall to the left and the right of the centerline. Install two

³⁄₈" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by installer) at locations marked.

GWater Heater Option #1: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 8" high] shown) 1

HWater Heater Option #2: Rough-in appropriate electrical supply per local code (recommended location for

240/208v or 277v electrical box [4" long x 4" wide x 4" high] shown) 1

J 110v GFI Protected Electrical Outlet 1

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR CODES

A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

3-1/2"

(89mm)

20"

(508mm)

25-3/4"

(654mm)

32"

(813mm)

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

(76mm)

13-1/4"

(337mm)

15"

(381mm)

D1 D2

23-1/2"

(597mm)

9-3/8"

(238mm)

(102mm)

19"

(483mm)

FLOOR

2" (51mm)

13"

(330mm) 22"

(559mm)

28-3/4"

(730mm)

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011 10/19/11 7

SCUFF PANEL

STANDARD HEIGHT

FRAME ONLY

SCUFF BASE FRAME

STANDARD HEIGHT

FRAME ONLY

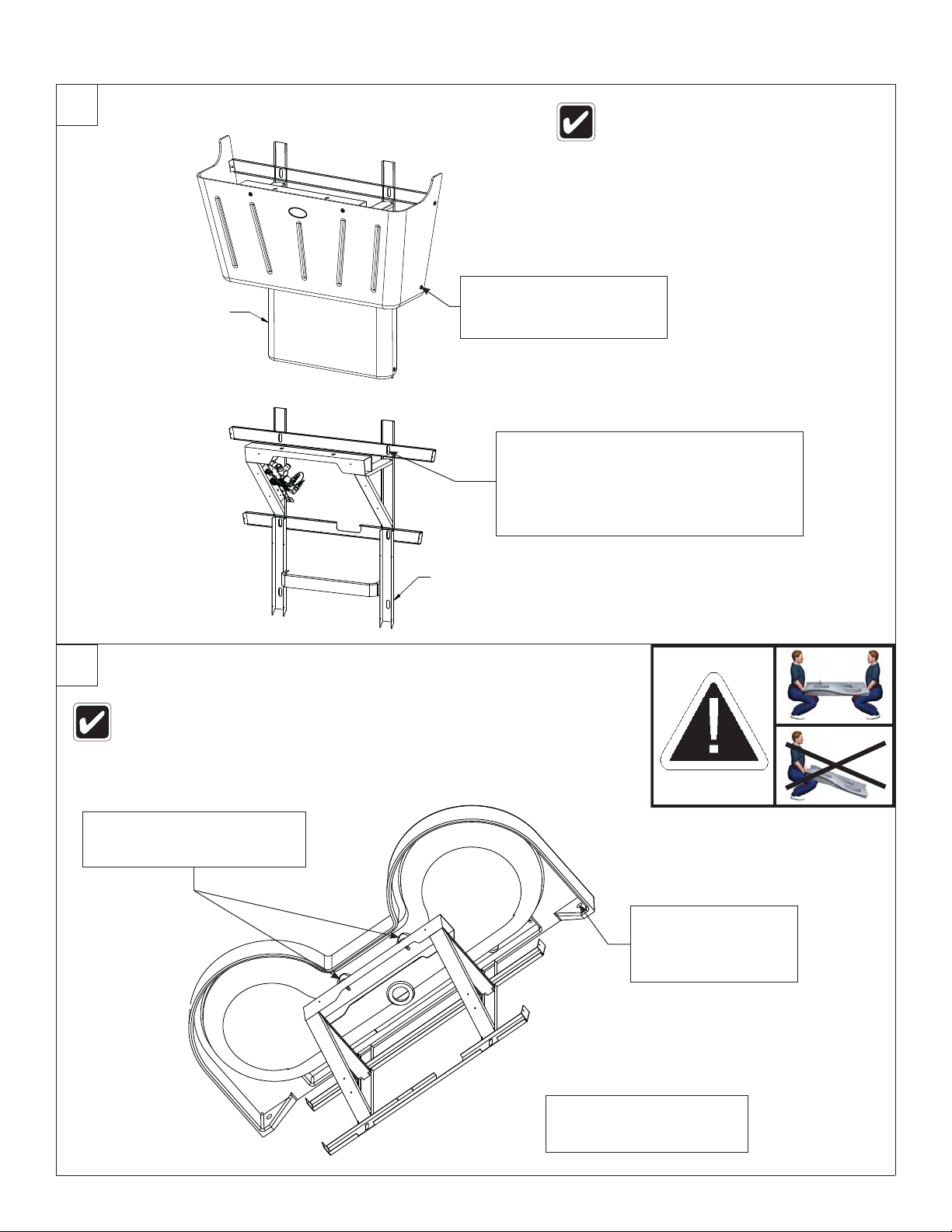

2Mount Frame to Wall Anchoring the frame to a wall that is not

flat may cause the frame to bend, making

it difficult to reinstall the access panels. If

necessary, use shims to compensate for

wall distortion.

Once you have positioned the frame such that

it is level and flat against the wall or shimmed ,

mount the frame to the wall at four places using

³⁄₈" bolts and 1” min. O.D. washers.

NOTE: When mounting the standard height frame,

mount the scuff base to the wall at the same time

using two additional ³⁄₈" bolts and washers.

AUsing a T20 torx key, remove

the fasteners securing the

access panel to the main

frame, and remove the panel.

3Install Bowl

The sprayhead body has slotted holes for adjusting the fit-up with the bowl and wall.

The tailpiece on the waste tee has been rotated upward for shipping purposes. Turn

the tailpiece down to its proper position before installing the bowl.

Secure the bowl to the

wall anchors with ³⁄₈"

bolts and 1" min. O.D.

washers, two places.

Do not overtighten.

Attach the bowl to the frame with

¼"-20 x ½" pan-head screws and

washers. Do not tighten.

Tighten the pan-head screws

Do not overtighten.

SS-2N/IR/STD, SS-2N/IR/WH Installation

810/19/11 Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011

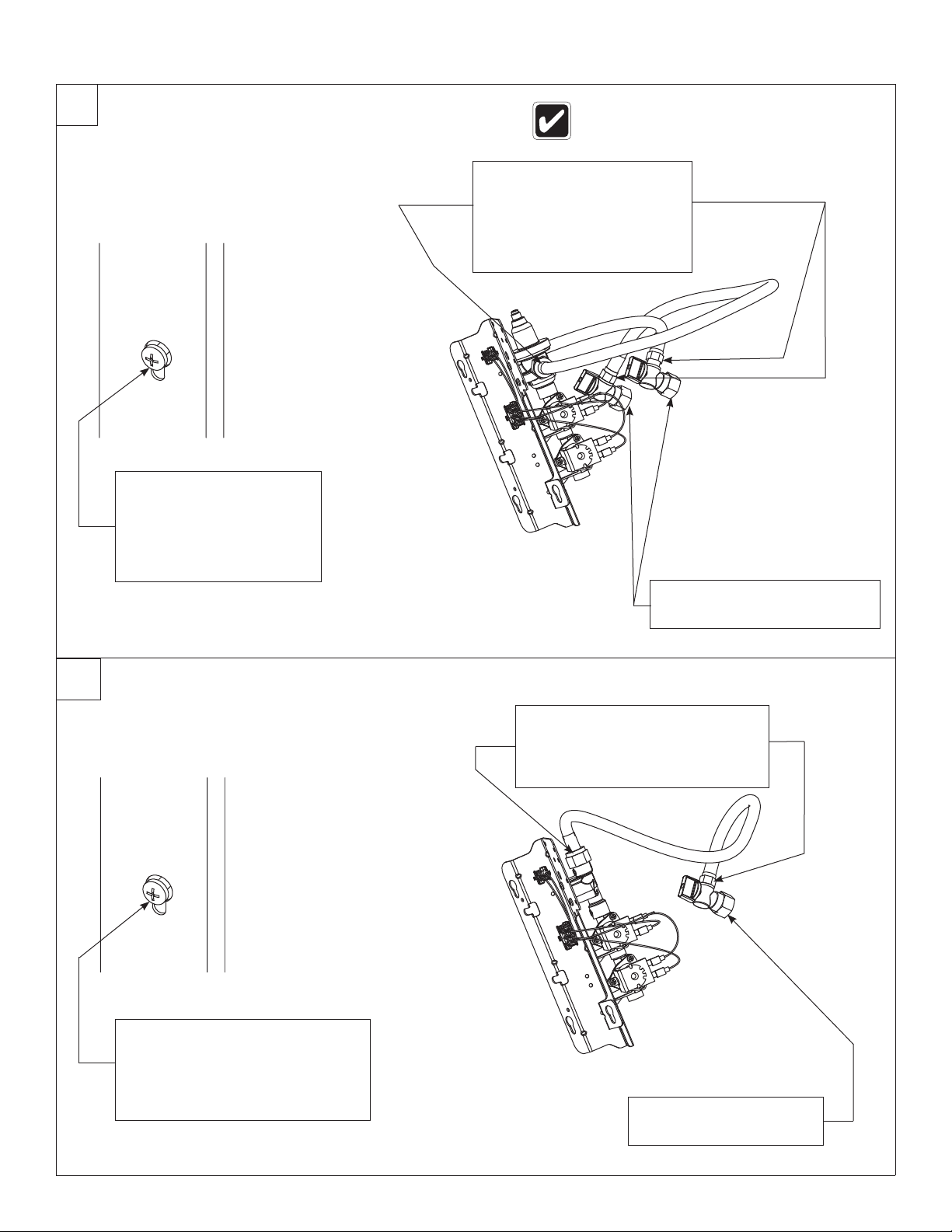

4a Connect the Supply — Hot and Cold Supply

4b Connect the Supply — Single Tempered Supply

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

Loosen but do not remove

the two mounting screws

holding the valve bracket

to the frame.

Slide the valve bracket up

and lift it from the frame.

Connect one end of each

hose to the Navigator valve

(one on the hot side, one on

the cold side).

Connect the other swivel

end to the stop valves.

Attach the stops to the hot

and cold water wall stub-outs.

Loosen but do not remove the two

mounting screws holding the valve

bracket to the frame.

Slide the valve bracket up and lift

it from the frame.

Connect one end of flexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

Attach the stop to the

tempered wall stub-out.

Installation SS-2N/IR/STD, SS-2N/IR/WH

Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011 10/19/11 9

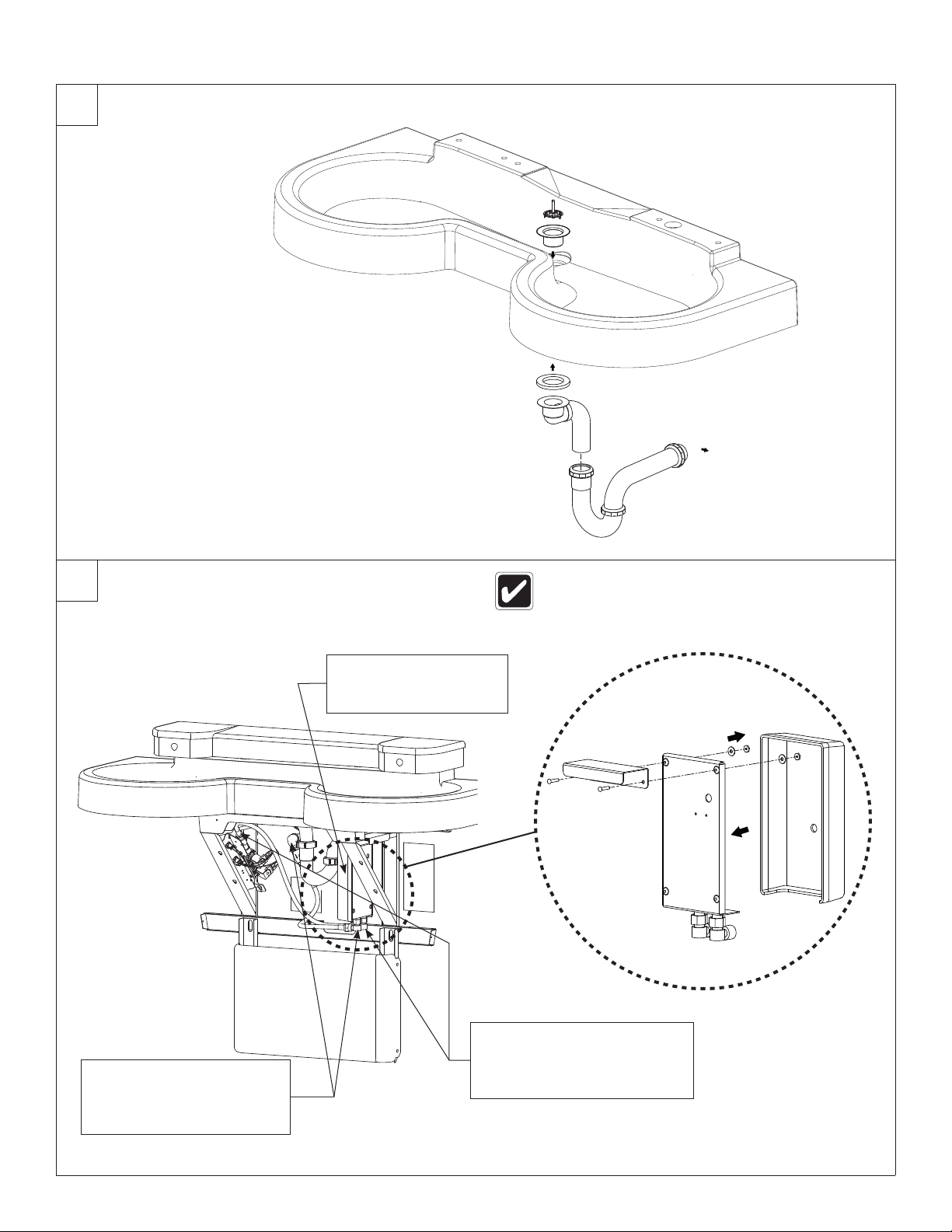

6Optional Electric Tankless Water Heater

5Install the Drain

240/208 or 277 voltage is required for hot water heater.

Refer to the installation manual provided with the hot

water heater for further installation information.

Connect the ½" flexible

hose from the cold water

supply stub-out to the hot

water heater inlet.

Connect the ½" flexible hose

from the hot water heater

outlet to the supply inlet on

the solenoid valve assembly.

Hang the water heater

on the right side frame

member.

To Drain

Stub-Out

SS-2N/IR/STD, SS-2N/IR/WH Installation

10 10/19/11 Bradley Corporation • 215-1497 Rev. G; ECM 11-08-011

7Connect Electrical and Sprayhead Supplies

Snap the transformer's

circuit plug into the female

transformer circuit plug.

Connect the sensor circuit

plug from the sprayhead to

the solenoid circuit plug.

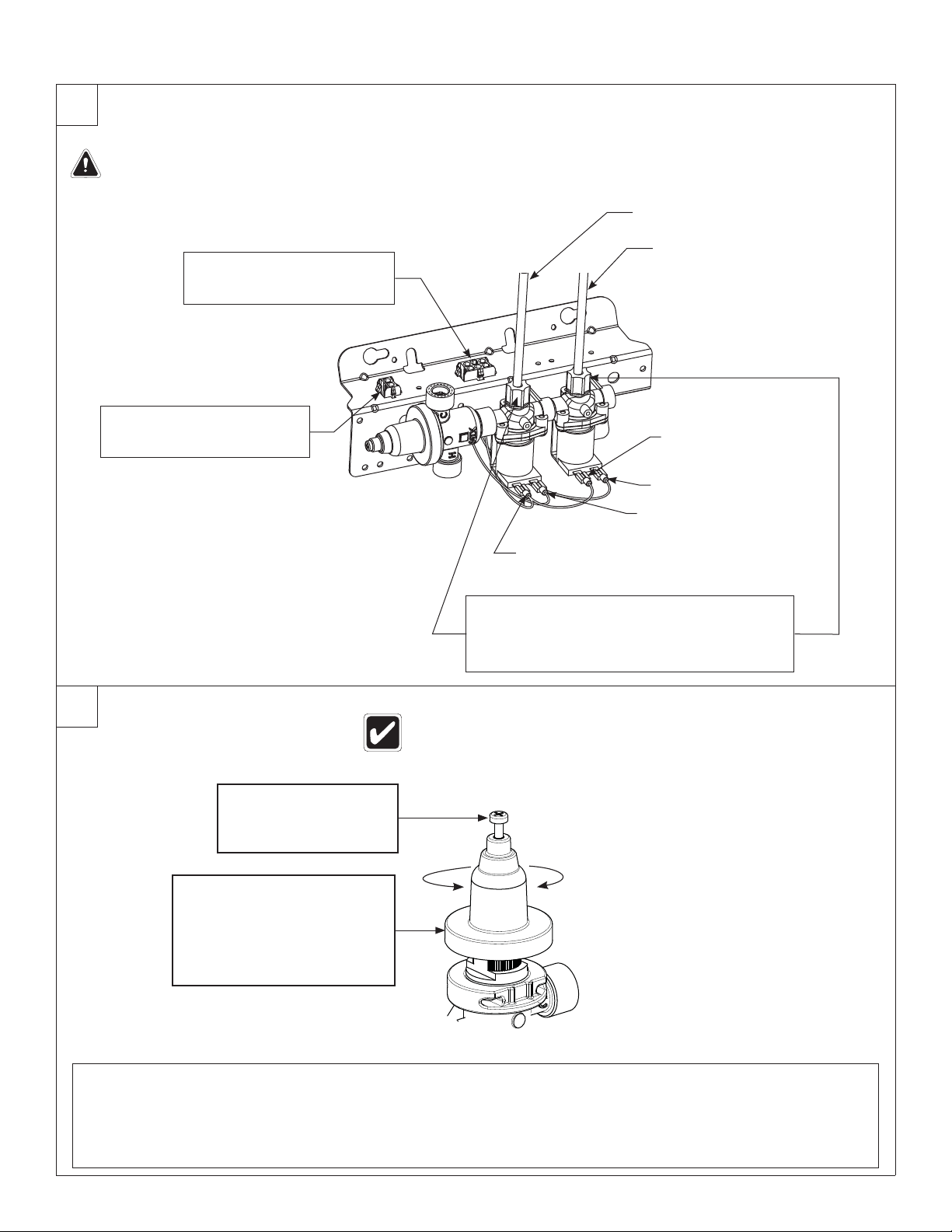

WARNING: The Express® control must be connected with the 24 VAC Class II transformer provided. Connections

to 110 VAC can cause personal injury and will result in damage to the electronics. Connection of leads other than

shown may cause permanent damage to the sensor.

Loosen the compression nuts.

Push the sprayhead supply tubes firmly into

the tube connectors until they are fully seated.

Tighten the compression nuts by hand.

Green Supply Tube

(from Sprayhead)

Red Supply Tube

(from Sprayhead)

Red Spade Terminal

Green Spade Terminal

White Spade Terminal

Reinstall the valve bracket. Turn on the water supply and check for leaks. Turn on the electrical power to the electrical outlet

and pass your hand in front of each station’s sensor until all the air is purged from the lines and water is flowing smoothly.

Reinstall the access panel.

START-UP NOTE: Wait two full minutes after making the power connection before using the lav. The sensors will take up to

eight full minutes (while not in use) to adapt to the bowl if another object is detected during the two-minute start-up period.

ALoosen the cap screw

about ¼" (4–6 turns)

and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until

desired water temperature

is reached. Do not turn past

stops as this may damage

the unit. Push the cover

down and tighten the screw.

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

8Adjust the Temperature

Other manuals for Express SS Series

This manual suits for next models

Table of contents

Other Bradley Plumbing Product manuals

Bradley

Bradley S45-1986 User manual

Bradley

Bradley SN2013/AST4 User manual

Bradley

Bradley S19-460 User manual

Bradley

Bradley S19-210FW User manual

Bradley

Bradley S19-220DCPT User manual

Bradley

Bradley Express ELX Series User manual

Bradley

Bradley S19-220DCRPT User manual

Bradley

Bradley Express Crescent CRS-2/IR User manual

Bradley

Bradley Verge LVQ Series User manual

Bradley

Bradley WS-1X Operation manual

Bradley

Bradley Verge LVGD1 User manual

Bradley

Bradley Verge LVQ Series User manual

Bradley

Bradley FL-3H User manual

Bradley

Bradley S19294 Series User manual

Bradley

Bradley Corner-Fount MF2922 Quick start guide

Bradley

Bradley Bradmar 700 Series User manual

Bradley

Bradley Express MG Series User manual

Bradley

Bradley Frequency FL-2H User manual

Bradley

Bradley Terreon Quadra-Fount MF2949/IR User manual

Bradley

Bradley TERREON LD-3071/STD User manual

Bradley

Bradley Sentry SN2003/AST4 User manual

Bradley

Bradley S19-220HFP User manual

Bradley

Bradley Express SS-2 Infrared-to-Touch Time User manual

Bradley

Bradley TDB3108 User manual

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Kohler

Kohler K-6228 Installation and care guide

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

American Standard

American Standard DetectLink 6072121 manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Kohler

Kohler K-12183 Homeowner's guide

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Kohler

Kohler Centerset K-15240 Homeowner's guide

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual
