Bowflex BDS-220 User manual

BDS-220

Assembly Instructions

(Rev A)

BDS-220

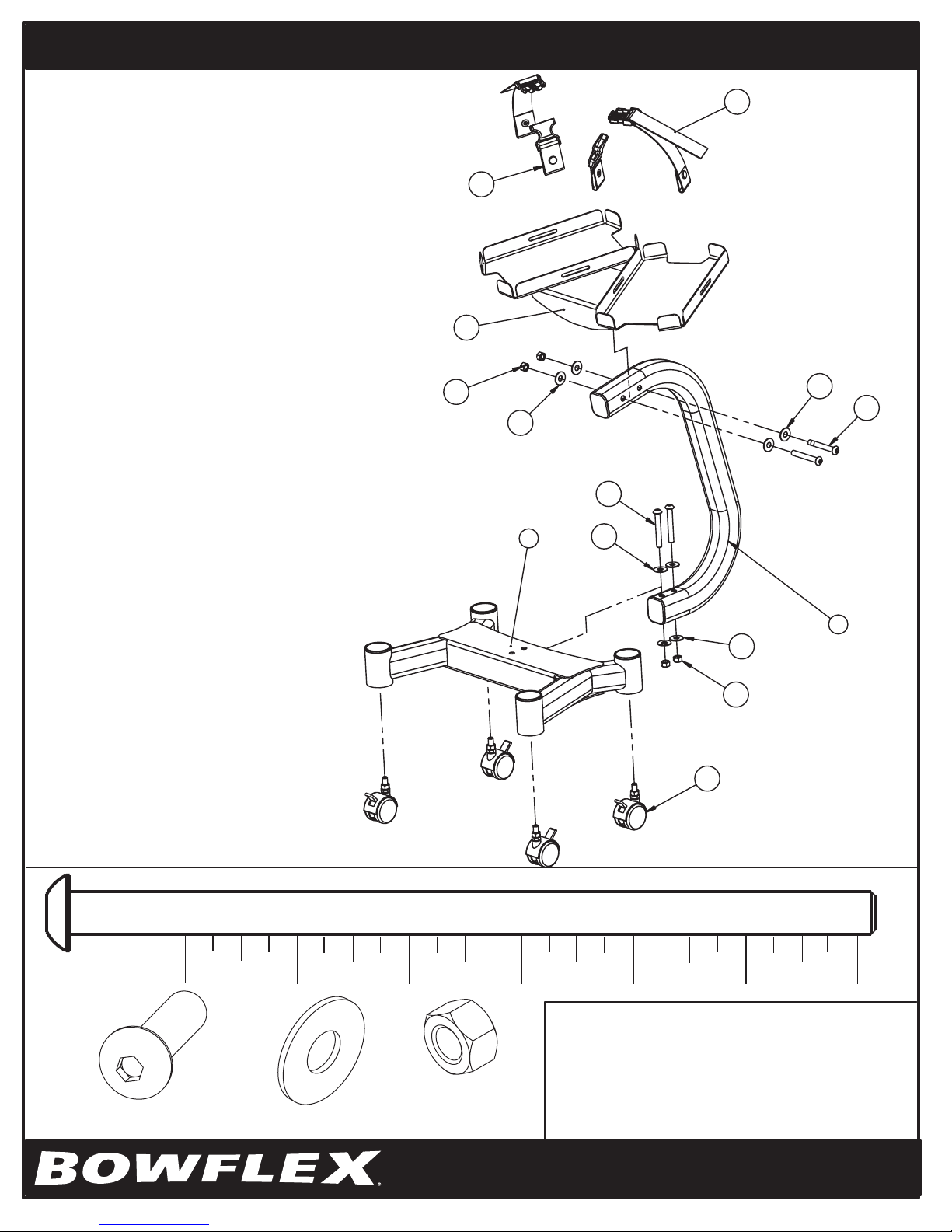

# Assembly Components Qty.

1" 7"

4"3"

Button Head Allen Screw Lock NutFlat Washer

Tools Required

7/32" Allen Wrench

9/16" Socket

9/16" Wrench or Adjustable Wrench

Leg

Base

Dumbbell Platform

3/8" Button Head Allen Screw 2 3/4"L

3/8" Flat Washer

3/8" Lock Nut

Hold Down Strap - Male

Hold Down Strap - Female

Wheel

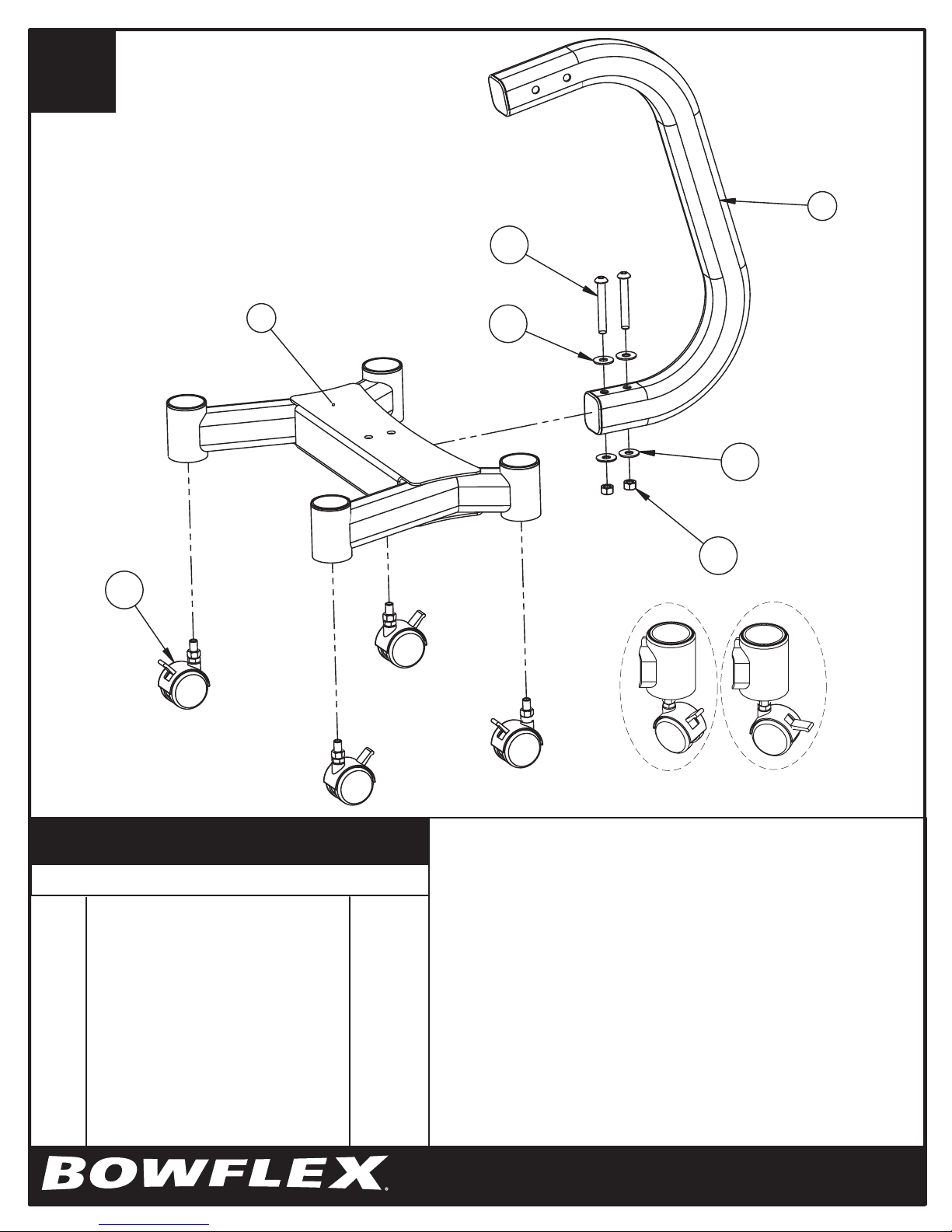

Slide the Leg (1) through the Base (2) as shown.

Attach the Leg (1) to the Base (2) using the hardware

shown.

Tighten all hardware.

Attach each wheel (9) to the Base. Wheels can be locked

into place by flipping the tab up or down as shown above.

BDS-220

Step #1 Materials:

step

# Description Qty.

Leg

Base

3/8" Button Head Allen Screw 2 3/4"L

3/8" Flat Washer

3/8" Lock Nut

Wheel

LOCKED

UNLOCKED

BDS-220

Step #2 Materials:

step

#Description Qty.

Leg

Dumbbell Platform

3/8" Button Head Allen Screw 2 3/4"L

3/8" Flat Washer

3/8" Lock Nut

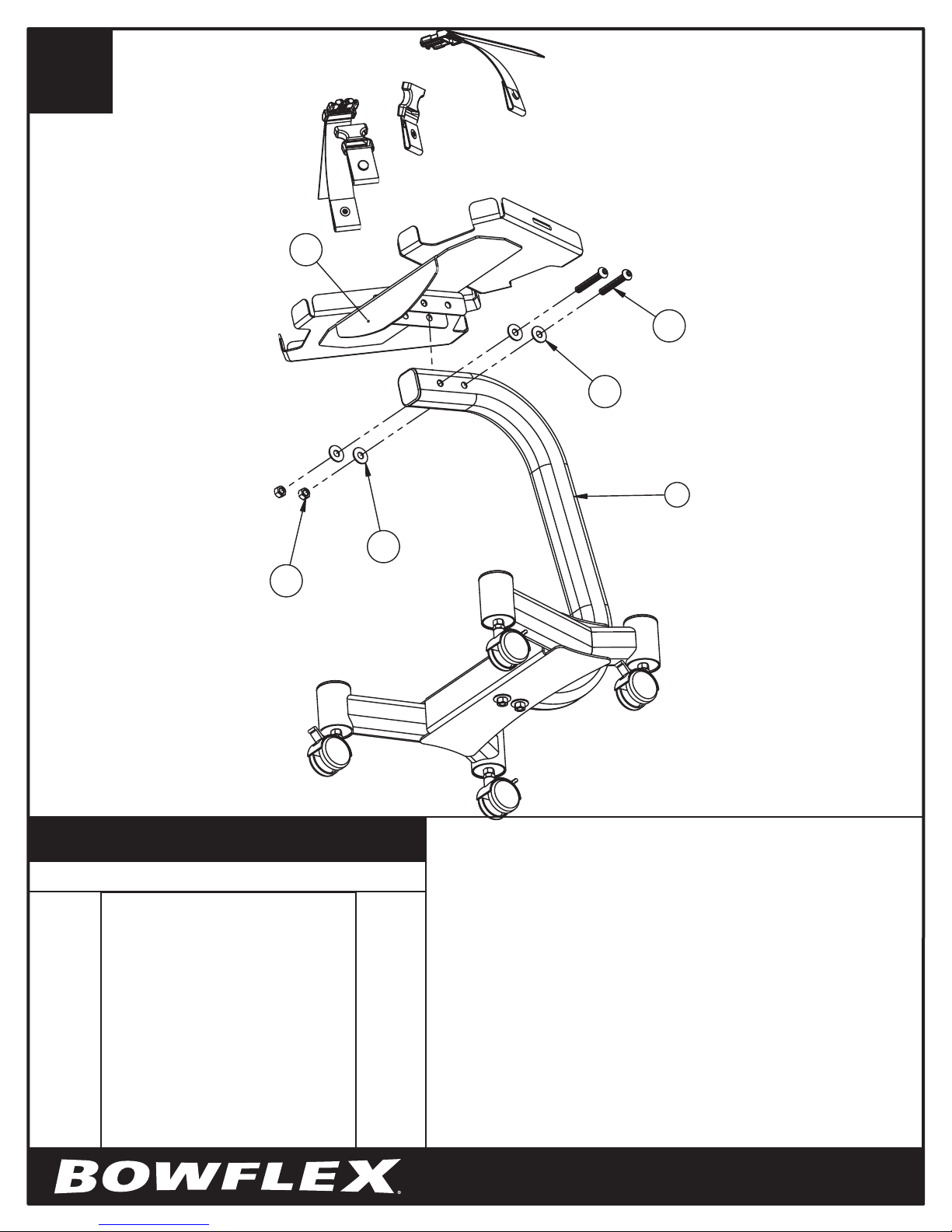

Attach the Dumbbell Platform (3) to the Leg (1) as shown.

Using the hardware shown, securely tighten the

Dumbbell Platform (3) to the Leg (1).

Dumbbell Platform

Hold Down Strap - Male

Hold Down Strap - Female

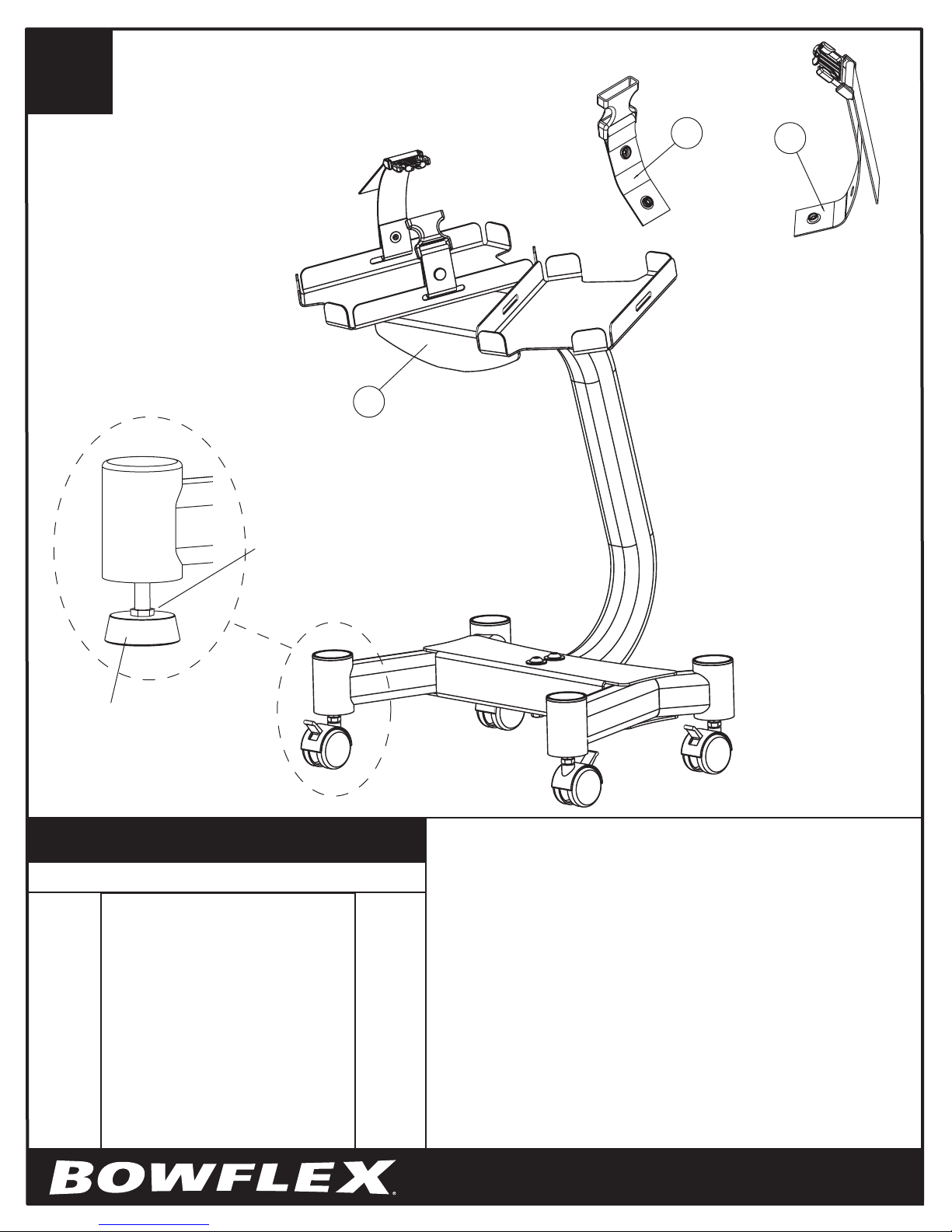

Attach the male and female ends of the Hold Down Strap (7 & 8) to the

Dumbbell Platform (3) as shown.

Each strap is secured by drawing the button end of the strap through the

cutout on the edge of the platform, folding the strap around the edge, and

snapping into place.

Once the Dumbbell Stand is in its desired position, the stand can be leveled

by adjusting the feet and locking them into place with the attached 3/8" nut.

BDS-220

Step #3 Materials:

step

#Description Qty.

OPTIONAL

FOOT PEGS

LEVEL ADJUSTMENT

NUT - ALSO ON WHEELS
