Black Box RADIAN 1000 Series User manual

STEP X - Name of Step

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BL ACKBOX.COM

V W P -10 60

RADIAN

1000 SERIES

QUICK START GUIDE

STEP 1 - Keyboard and Mouse

CONNECT TO USB PORTS

Connect the keyboard and mouse

to USB ports.

STEP 2 - Connect to a Network (Optional)

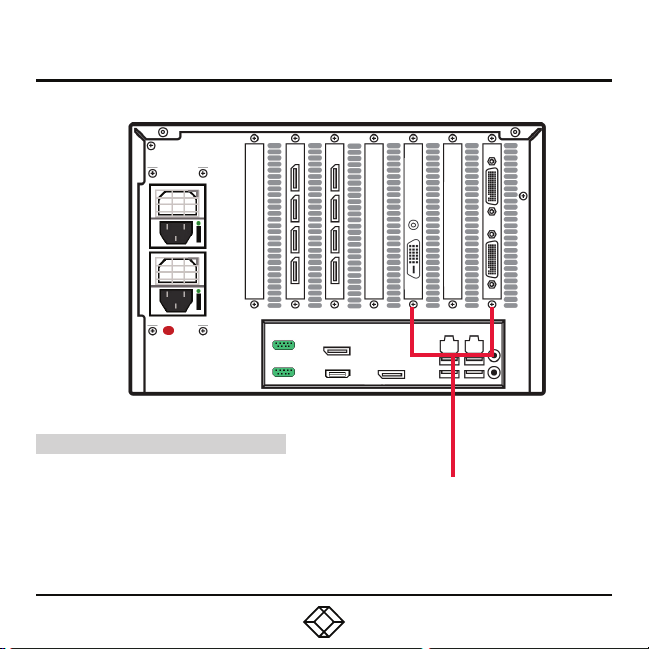

STEP 3 - Connect to an Input Source

INPUT SOURCE(S)

Because each system is custom built, the

number and type of inputs will differ from

system to system.

INPUT CONNECTORS

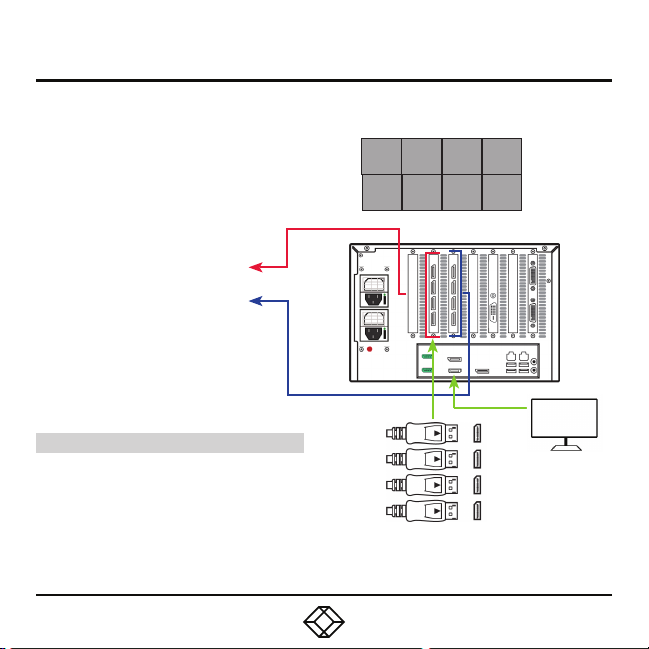

STEP 4 - Control Screen (Optional) and Monitors

CONNECT

Many of our wall controllers are configured

to use a control screen (Internal Graphics

Device) before leaving the factory. If required,

connect the control screen to the motherboard

as shown. If a control screen is not required,

you will need to change the BIOS settings.

4 X 2 VIDEO WALL

13 4

5678

MONITOR 1

MONITOR 2

MONITOR 3

MONITOR 4

MONITOR 5

MONITOR 6

MONITOR 7

MONITOR 8

CONNECT GRAPHICS OUTPUTS TO

MONITORS USING DISPLAYPORT CABLES

(NOT SUPPLIED)

CONTROL SCREEN

(OPTIONAL)

STEP 5 - Powering On the System

POWER SWITCH

POWER

1. Connect the power cable, then plug into

and turn on the power supply.

2. Switch on the system.

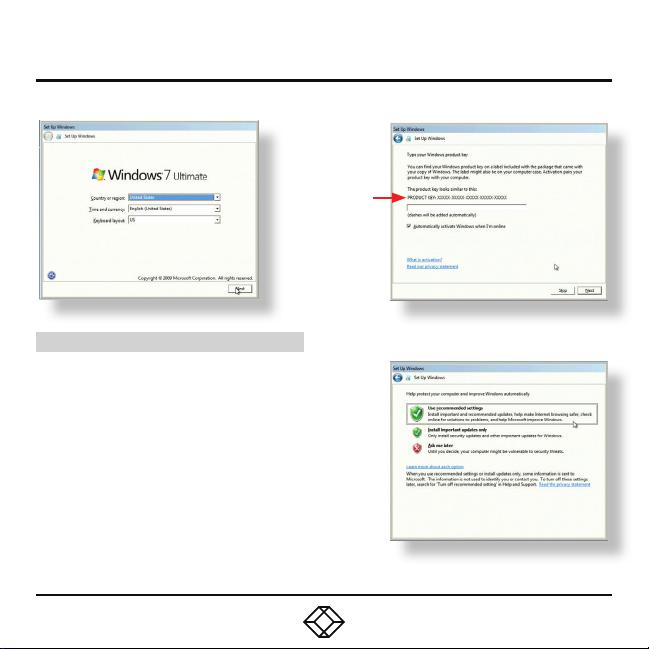

STEP 6 - Windows 7 Setup

THE PRODUCT KEY

IS LOCATED BEHIND

THE FRONT PANEL.

GENTLY PULL AWAY

THE FRONT PANEL

FOR ACCESS.

FOLLOW THESE STEPS

1. Open the Windows Setup window.

2. Type in the Product Key.

NOTE: The Product Key is located behind the

front panel. Gently pull away the front panel

for access.

3. Check “Use recommended settings.” Use

only Internet-standard characters in the

computer name (numbers 0 through 9, upper-

and lower-case letters from A through Z and

the hyphen character). Computer names

cannot consist entirely of numbers, contain

spaces, or use special characters such as < >

; : “ ?* + = \ | ?

STEP 7 - Activate Windows 7

Start | Computer | Properties | Activate Windows now.

ACTIVATE WINDOWS 7

1. Select the appropriate method available.

2. To view the product key, gently pull away

the front panel of the 6-Slot Chassis. The front

panel is held in place with a series of magnetic

points.

STEP 8 - Display Setup

Start | Control Panel | Appearance and Personalization | Adjust screen resolution.

LAYOUT AND RESOLUTION SETTINGS

All Radian wall controllers have pre-configured

settings for the wall layout and screen

resolution. Change settings using the TWIN

tab.

STEP 9 - Radian Video Wall Manager (Optional)

Start | All Programs | Radian Video Wall Manager - Server

Start | All Programs | Radian Video Wall Manager - Client

STARTING VIDEO WALL MANAGER

1. Before opening the Client interface, you

will need to start the Server by clicking on it

in the Programs menu. The Radian Video Wall

Manager Client can only detect servers that

are running.

2. When you open Radian Video Wall Manager

for the first time, you will be prompted to

take a Quick Start Tour of the application. We

strongly recommend that you take the tour

before using the application.
