Anchor AnchorSpan Liner User manual

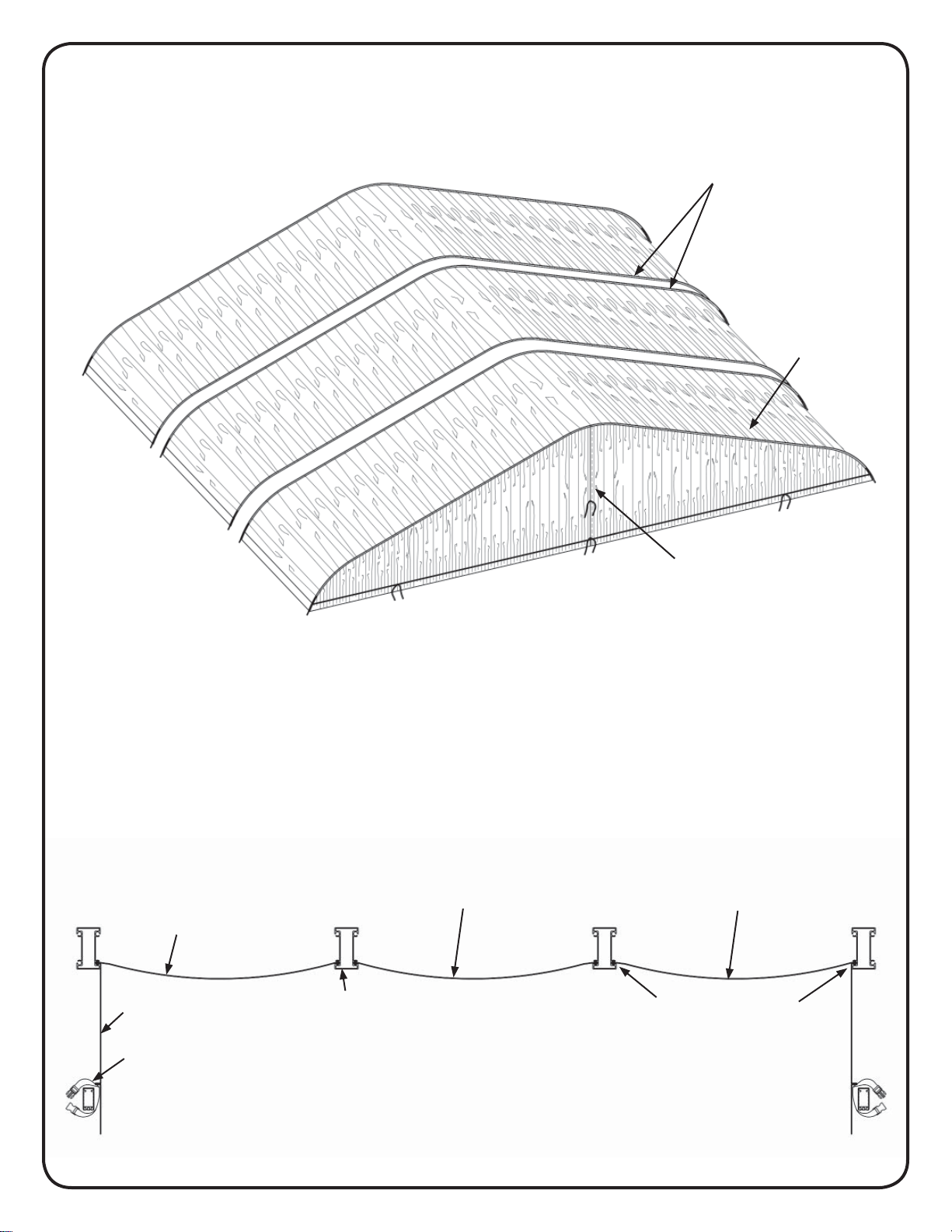

GABLE END OF

LINER - ATTACHED

TO FIRST MID.

STEP 1

BE CERTAIN GABLE END VELCRO IS OPEN BEFORE BEGINNING INSTALLATION. CONNECT PULL ROPES TO

D-RINGS AT LOWER ENDS OF LINER MID.

STARTINGAT CHANNEL OPENINGS IN BEAMS, SLIDE KEDAR INTO INSIDE CHANNELS OF BEAMS. START BOTH

SIDES OF MID AT THE SAME TIME.

MIDS WILL BE PULLED IN WITH PULL ROPES. PULLEY MAY BE ATTACHED AT TOPARCH OF FRAME FOR THIS

PURPOSE, OR PUSH POLES CAN BE USED.

KEDARS

GABLE END VELCRO

MUST BE OPEN

BEFORE PULLING

LINER IN CHANNEL.

FIRST MID WITH GABLE

END ATTACHED.

FIRST MID WITH GABLE

END ATTACHED.

MID

CROSS SECTION LOOKING

AT SIDE OF ANCHORSPAN

GABLE END

ATTACH GABLE END TO

FRAME AT EAVE BAR.

ANCHORSPAN

BEAM (TYP.) SLIDE KEDAR INTO

BOTH CHANNELS

SIMULTANEOUSLY.

EC ASL

Installation Instructions

Anchor Span Liner

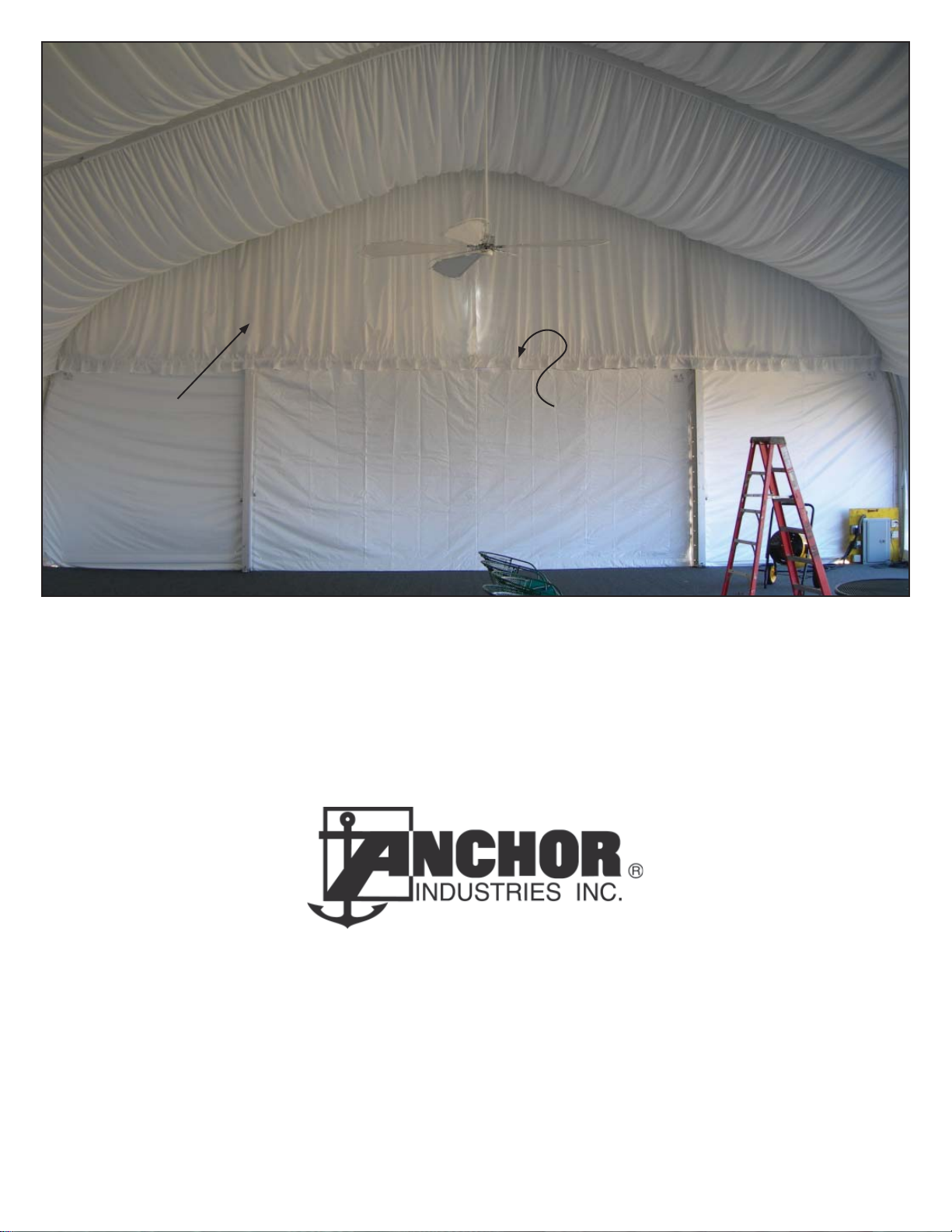

GABLE END HAS STRAPS

FOR ATTACHING TO END

UPRIGHTS.

ATTACH STRAPS TO END

EAVE BARS (IF WALLS WILL BE

INSTALLED, FASTEN STRAPS

AFTER INSTALLATION OF

WALLS.)

STEP 2

PULL LINER MIDS IN EVENLY SO THAT THEY STOPAT THE SAME LEVEL ON EACH SIDE OF THE BUILDING.

AT EACH CORNER OF LINER, HOOK SNAP ON STRAP INTO CHANNEL ON EAVE BAR AND THEN TIGHTEN STRAP.

7701 Highway 41 N

Evansville, IN 47725

Phone: 812-867-2421

Fax: 812-867-1429

1-800-544-4445

email: [email protected]

www.anchorinc.com
