Ameriwood HOME 1795096COM User manual

B341795096COM00GO

1795096COM

Farmington 60" Frieplace TV St

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Tube

You

Assembly Difficulty Meter

Easy Tough

Date of Purchase ___ / ___ / ___

Lot Number:

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Tube

You

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Board Identification

Not actual size

ameriwoodhome.com

BOTTOM

T1795096020GO

QTY: 1 PC

FIXED SHELF

T1795096030GO

QTY: 1 PC

TOP

T1795096010GO

QTY: 1 PC

LEFT SIDE PANEL

T1795096040GO

QTY: 1 PC

Tube

You

RIGHT SIDE PANEL

T1795096050GO

QTY: 1 PC

PARTITION

T1795096060GO

QTY: 2 PCS

RAIL

T1795096070GO

QTY: 1 PC

RAIL

T1795096080GO

QTY: 2 PCS

RAIL

T1795096090GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

ADJUSTABLE SHELF

T1795096110GO

QTY: 2 PCS

PARTITION

T1795096120GO

QTY: 1 PC

RAIL

T1795096100GO

QTY: 1 PC

BACK PANEL

T1795096150GO

QTY: 2 PCS

Tube

You

UPPER BACK PANEL

T1795096160GO

QTY: 1PC

STOPPER

T1795096170GO

QTY: 1PC

FOOT

T1795096180GO

QTY: 2PCS

RAIL

T1795096190GO

QTY: 1PC

LEFT DOOR

T1795096130GO

QTY: 1 PC

FRIREPLACE

QTY: 1PC

RIGHT DOOR

T1795096140GO

QTY: 1 PC

FA23V60L-1

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

Part List

ameriwoodhome.com

Hardware Bag Reference number:

21795096COM0GO

Actual Size

M4 x 19mm

432 ×36 ×36 ×38 ×4

Tube

You

5 ×5

CAM LOCK

TGO2101 CAM BOLT

TGO2001 WOOD DOWEL

TGO2900 BOLT

TGO1608

SCREW

TGO1001

Ø3.5 x 14mm

6 ×30

SCREW

TGO1005

7 ×42

Ø3 x 12mm

SCREW

TGO1301

8 ×2

Ø4 x 14mm

No Actual Size

9 ×2

KNOB

TGO5510

10 ×4

DOOR HINGE

TGO4311

11 ×8

SHELF SUPPORT

TGO2810

12 ×4

PAD

TGO6514

13 ×2

ANGLE BRACKET

TGO3539

Ø4.2 x 25mm

M8 x 30mm

Ø6 x 25mm

Ø15 x 12mm

SCREW

TGO1306

ameriwoodhome.com

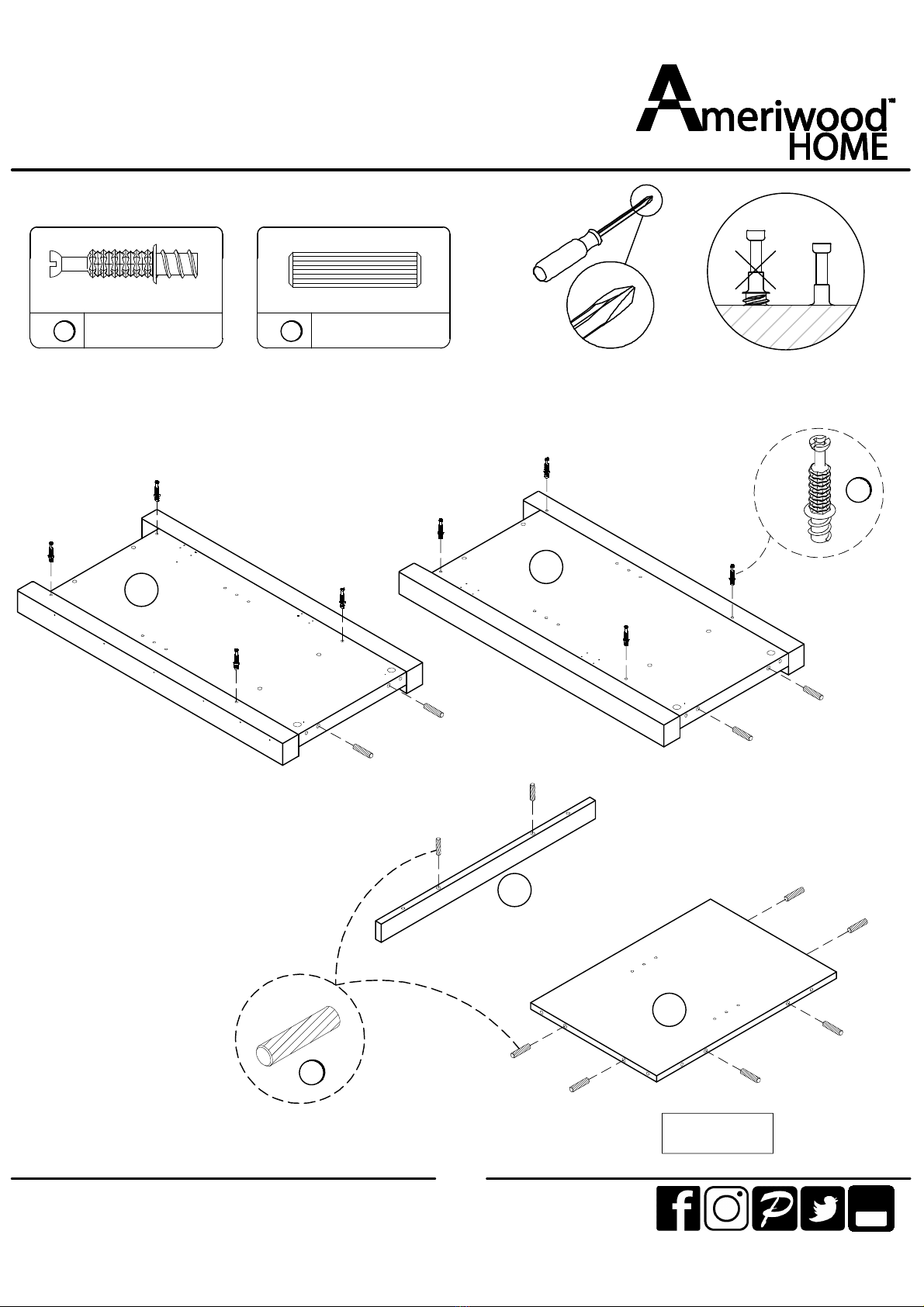

STEP

1.1 Cam bolt (2) into (A), (B) and (I) as illustrated.

1.2 Insert (3) into (B), (J) and (P) as illustrated.

Tube

You

3 ×8 ×15

ameriwoodhome.com

STEP

2.1 Cam bolt (2) into (C) and (H x 2) as illustrated.

2.2 Insert (3) into (C) and (L) as illustrated.

Tube

You

3 ×11

2 ×13

H X 2

ameriwoodhome.com

STEP

Tube

You

3 ×18

2 ×8

3.1 Cam bolt (2) into (D) and (E) as illustrated.

3.2 Insert (3) into (D), (E), (G) and (F x 2) as illustrated.

F X 2
