Amart Furniture Signature LASALLE 64102 User manual
ASSEMBLY INSTRUCTION

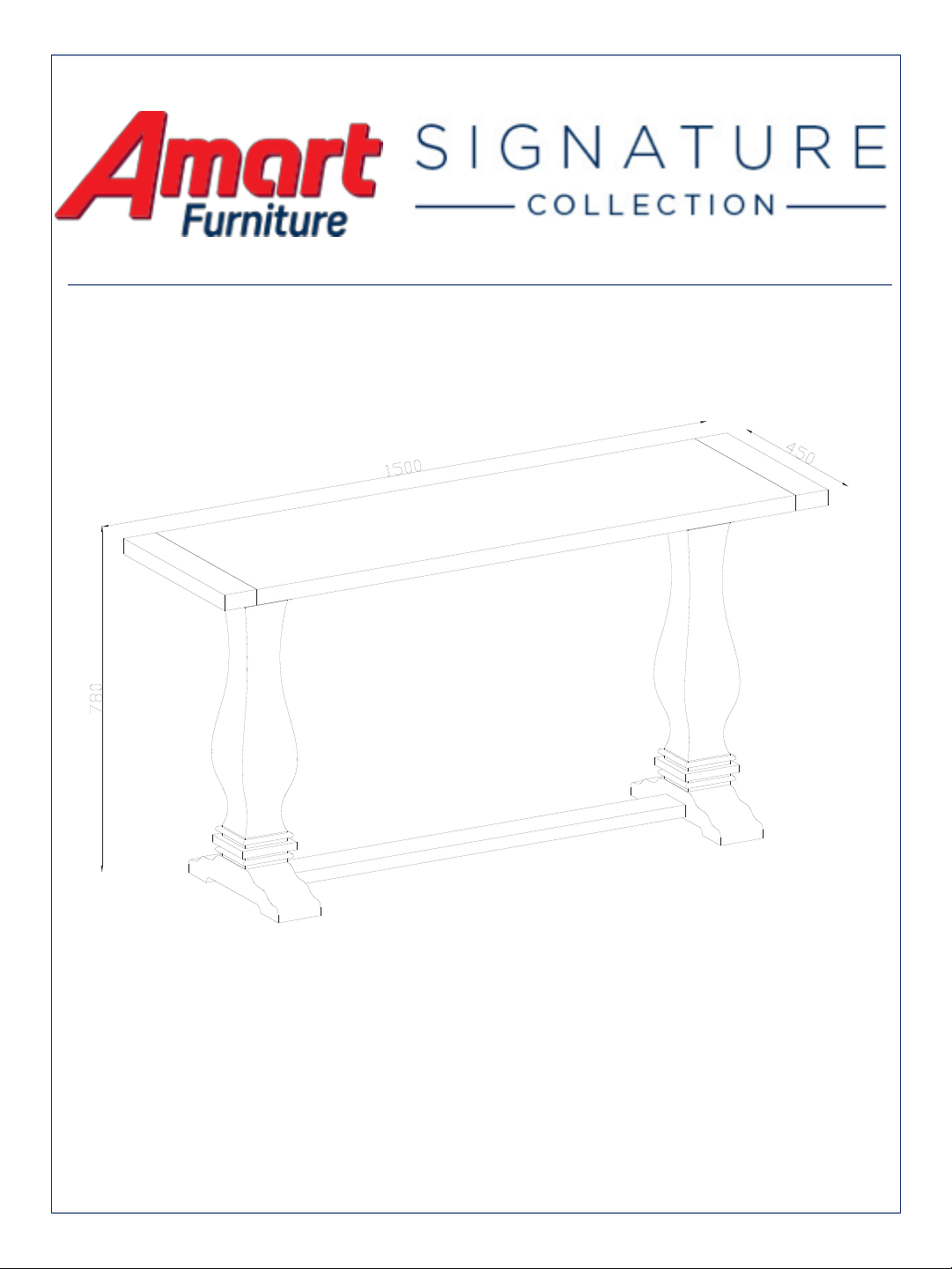

LASALLE SOFA TABLE
ITEM CODE 64102
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
64102
IMPORTANT: CARE GUIDE FOR YOUR
TIMBER FURNITURE
1
•Congratulations! You have just purchased a quality product from Amart
Furniture. Please read on for important information regarding your purchase.
•A multi-step finish is applied to all our furniture, but all wood comes from
nature. Because of this, there will be natural variations in surface texture and
grain like knots, mineral streaks and sap runs that may affect the finish.
•These differences in character are not defects, but distinctions that make
each piece of furniture unique.
•Our furniture is built to last. Following these steps for basic care should
protect your investment for years to come.
•Dust frequently with a clean damp lint-free cloth. This will help remove
abrasive build up which can damage a finish over time.
•Do not place hot objects on any furniture surface. Always use a coaster or
placemat. Laminate and lacquer finishes on table tops provide added scratch
and heat resistance to our furniture, but they can still be damaged without
proper care.
•Avoid exposing your furniture to strong sunlight, heat outlets, open windows
or dampness. Prolonged exposure to direct sunlight can fade the finish of
your furniture, while extreme temperature and humidity changes can cause
cracking or splitting.
•Do not expose your furniture to any liquids. Never allow water to sit on your
furniture. Alcohol, nail polish and perfume are also dangerous as they will
dissolve the lacquer finish on contact and may require professional repairs.
•Do not allow plastic to come in direct contact with your furniture. Chemicals
in the plastic of placemats etc may soften and mark the finish if left in contact
with the furniture for a period of time.
64102
PRE-ASSEMBLY PREPARATION
Before you start:
1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may
damage the product
2. Take care when lifting. Product should be assembled as near as possible to
the point of use
3. Ensure that you have all required contents for complete assembly
4. Always read the assembly instructions carefully before beginning assembly.
5. Keep all hardware parts and packaging out of reach of small children.
6. Do not over tighten the screws and bolts as this may damage the threads
2
Allow at least 45min you will need 2 people
264102
A
M6 X 30 BOLT
16
PCES
B
M6 X 80 BOLT
8
PCES
C
M8 X 50 BOLT
2
PCES
D
CURVED
WASHER
2
PCES
E
M6.5 X 19 FLAT
WASHER
24
PCES
F
M6.5 X 9
SPRING
WASHER
24
PCES
G
ALLEN KEY
1 PCE
Part
DESCRIPTION
Qty
In box
Part
DESCRIPTION
Qty
In box
1
TABLE TOP
1
1
4
CROSS BAR
1
1
2
RAILS
2
1
5
LEGS
2
2
3
PEDESTALS
2
2
PARTS LIST
3
2
5
64102
Step 1
You should have started by opening box 1, upside down. Keep
the table top inside the box until later advised. Open the
legs box as the hardware is in there.
Step 2
Next you will need to assemble the M6 x 30 bolts (item A) with
the M6.5 x 9 spring washers (item F) and the M6.5 x 19 flat
washers (item E)
A
M6 X 30 BOLT
8
PCES
E
M6.5 X 19 FLAT
WASHER
8
PCES
F
M6.5 X 9
SPRING
WASHER
8
PCES
G
ALLEN KEY
1 PCE
YOU WILL NEED
464102
Step 3
With the assembled bolts from step 2, attach a rail (part 2) to
a pedestal (part 3) as per diagram below. Make sure the
pedestal is standing upright at all times as shown, we
recommend 2 people for this, with one holding the pedestal at
all times. Fasten firmly, but do not over tighten, over
tightening may damage surface of item.
Step 4
Repeat Step 3, with the remaining rail and pedestal. You
should be left with 8 sets of the assembled bolts from step 2,
you will need them for step 8
564102
Step 5
Next you will need to assemble the M6 x 80 bolts (item B) with
the M6.5 x 9 spring washers (item F) and the M6.5 x 19 flat
washers (item E)
Step 6
With the assembled bolts from step 5, attach a leg (part 5) to
a pedestal (part 3) as per diagram below. Make sure the
pedestal is standing upright at all times as shown, we
recommend 2 people for this, with one holding the pedestal at
all times. Fasten firmly, but do not over tighten, over
tightening may damage surface of item.
B
M6 X 80 BOLT
16
PCES
E
M6.5 X 19 FLAT
WASHER
16
PCES
F
M6.5 X 9
SPRING
WASHER
16
PCES
G
ALLEN KEY
1 PCE
YOU WILL NEED
664102
Step 7
Repeat Step 6 with the other leg and pedestal.
Step 8
Next we’ll be attaching the leg structures to the table top. We
recommend 2 people for this with one person holding the leg
structure up right at all times. take the 8 remaining
assembled bolt sets from step 2. Affix the leg structure to the
table top with these using the Allen key provided (item G), as
per the diagram below. Fasten firmly, but do not over tighten,
over tightening may damage surface of item. Repeat for the
other side.
764102
C
M6 X 50 BOLT
2
PCES
D
CURVED
WASHER
2
PCES
G
ALLEN KEY
1 PCE
Step 9
Next we’ll be attaching the cross bar. You will require 2
people for this step. One to fasten one end whilst the other
holds the other end in place. Due to the space constraint of
the slotted hole, please be patient whilst fastening the bolt.
Start by placing the curved washer (item D), into place as
shown below, then insert the bolt (item C) and fasten. Fasten
firmly, but do not over tighten, over tightening may damage
surface of item. Repeat for the other side.
8
YOU WILL NEED
64102
Step 10
Finally flip the Sofa table over. This is a 2 person task do not
do this alone. Once the right way up, remove the packaging
from the table top.
964102
