Amana NED5200TQ User manual

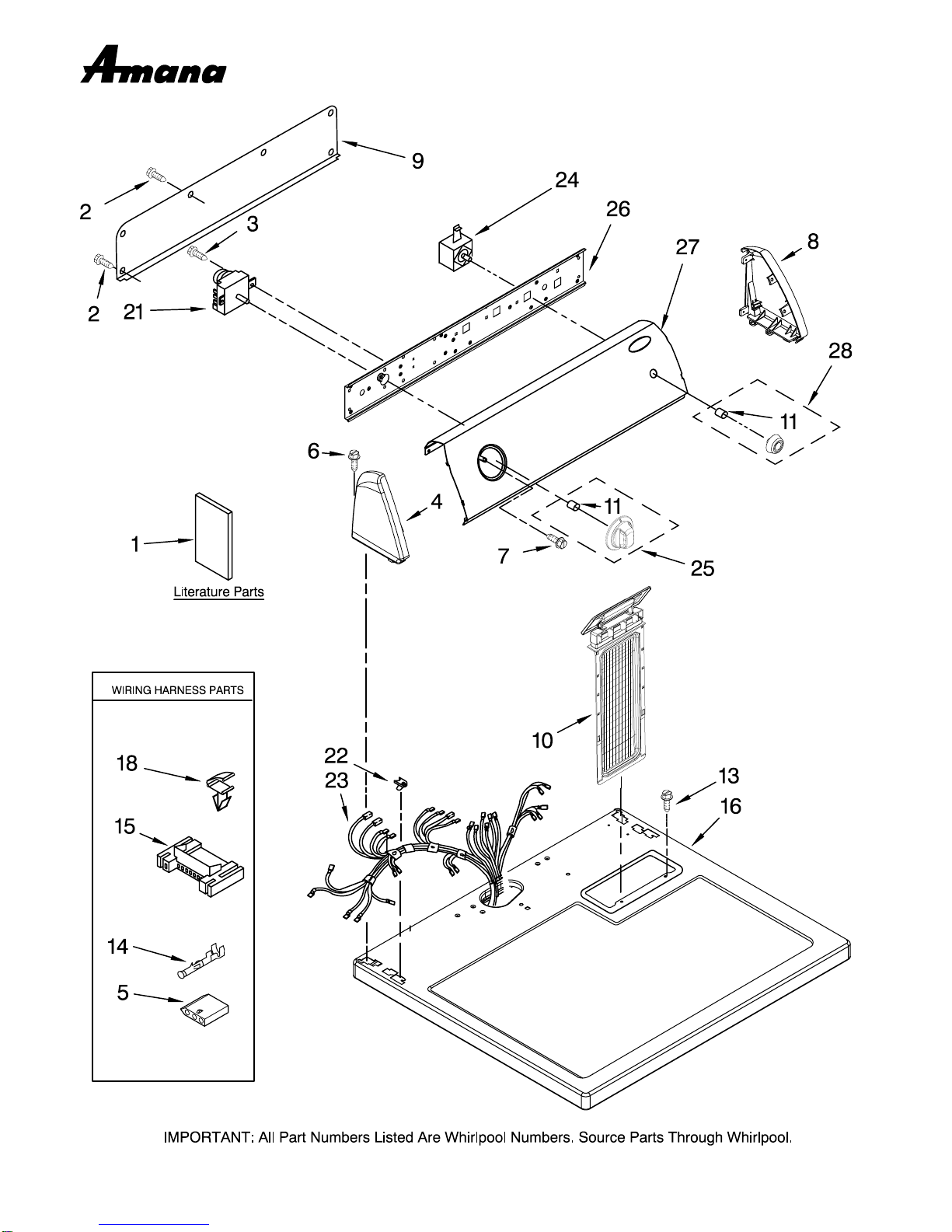

TOP AND CONSOLE PARTS

For Model: NED5200TQ0

(Designer White)

4−07 Litho in U.S.A. (LT) Part No. W10136729 Rev. A

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: NED5200TQ0

(Designer White)

W10136729

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10088771

Use & Care Guide

W10089173

Sheet,

Cycle Feature

W10088970

Installation

Instructions

8576793 Wiring Diagram

2 693995 Screw, Hex Head

3 8533971 Screw, 8−18 x 5/16

4 8271365 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 8533951 Screw, Grounding

8 8271359 Cap, End (R.H.)

9 8274261 Panel, Rear

Console

10 8558463 Screen, Lint

11 8536939 Clip, Spring

13 688983 Screw, 8−18 x 5/8

14 94614 Terminal

15 3395683 Connector

(Motor)

16 8557930 Top

18 3394427 Clip, Harness

21 8299774 Timer, 60 Hz.

22 357213 Nut, Push−In (2)

23 8576500 Harness, Wiring

24 3977456 Switch,

Push−To−Start

W10110048

Timer Knob

Assembly

26 8271418 Bracket, Control

W10086674

Panel, Control

W10110049

Knob,

Push−To−Start

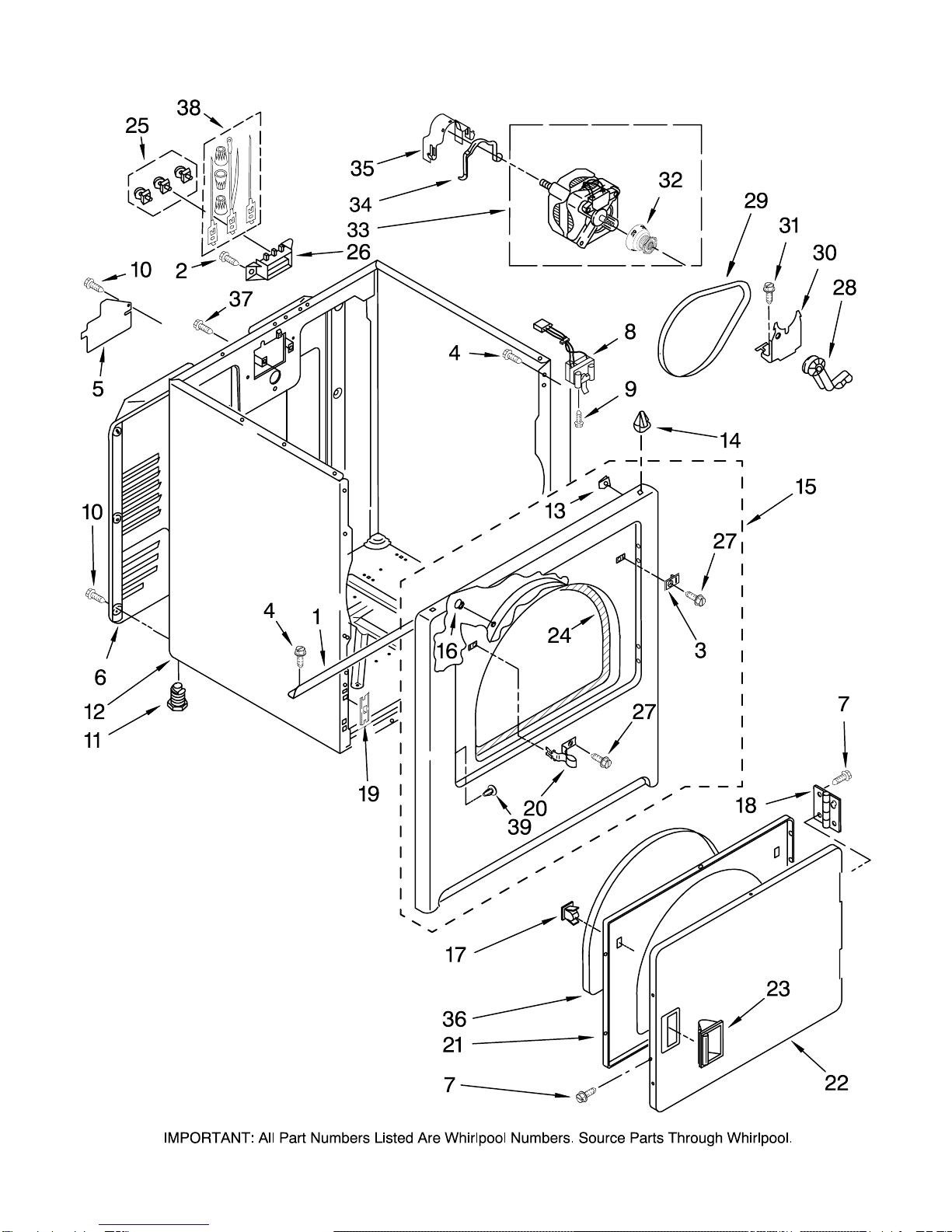

CABINET PARTS

For Model: NED5200TQ0

(Designer White)

W10136729

CABINET PARTS

For Model: NED5200TQ0

(Designer White)

W10136729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8541400 Bracket, Cabinet

2 3393008 Screw, 10−16 x 1/2

3 3403630 Plug−Strike

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 3396805 Panel, Rear

7 342055 Screw, 8−18 x 1/2

8 3406109 Door Switch

Assembly

9 697773 Screw, 6−20 x 7/8

10 693995 Screw, Hex

Washer Head

11 3392100 Foot, Dryer (4)

12 8530603 Cabinet

(Includes

Illus. 1)

13 98234 Clip, Ground

14 690363 Lock, Front

Top (2)

15 3403444 Front Panel

Assembly

16 685203 Clip, Felt Pad

17 3389441 Catch, Door

18 3405514 Hinge and Pin

Assembly (2)

19 3394083 Clip, Front

Panel (2)

20 3403431 Strike, Door

21 3402341 Door, Rear

22 3402335 Door Front

23 3405184 Handle, Door

24 3406129 Seal & Bearing

Assembly

25 279393 Terminal Block

Kit (For

Terminal Block)

26 3397659 Block, Terminal

27 8066217 Hinge, Top (2)

28 691366 Idler & Pulley

Assembly

W10131364

Belt, Drive

30 348780 Base, Motor

31 3400500 Bolt,

5/16−18 x 3/4

32 8066184 Pulley, 60 Hz.

33 8066206 Motor Assembly

60 Hz.

34 660658 Clamp, Motor

35 3404162 Clamp, Motor

(W/Shield)

36 3405246 Seal, Door

37 697776 Screw, 10−32 x 5/8

(External Ground)

38 279318 Terminal, Tinned

& Brass (3)

(Includes

Illus. 25)

39 3404413 Plug−Hole

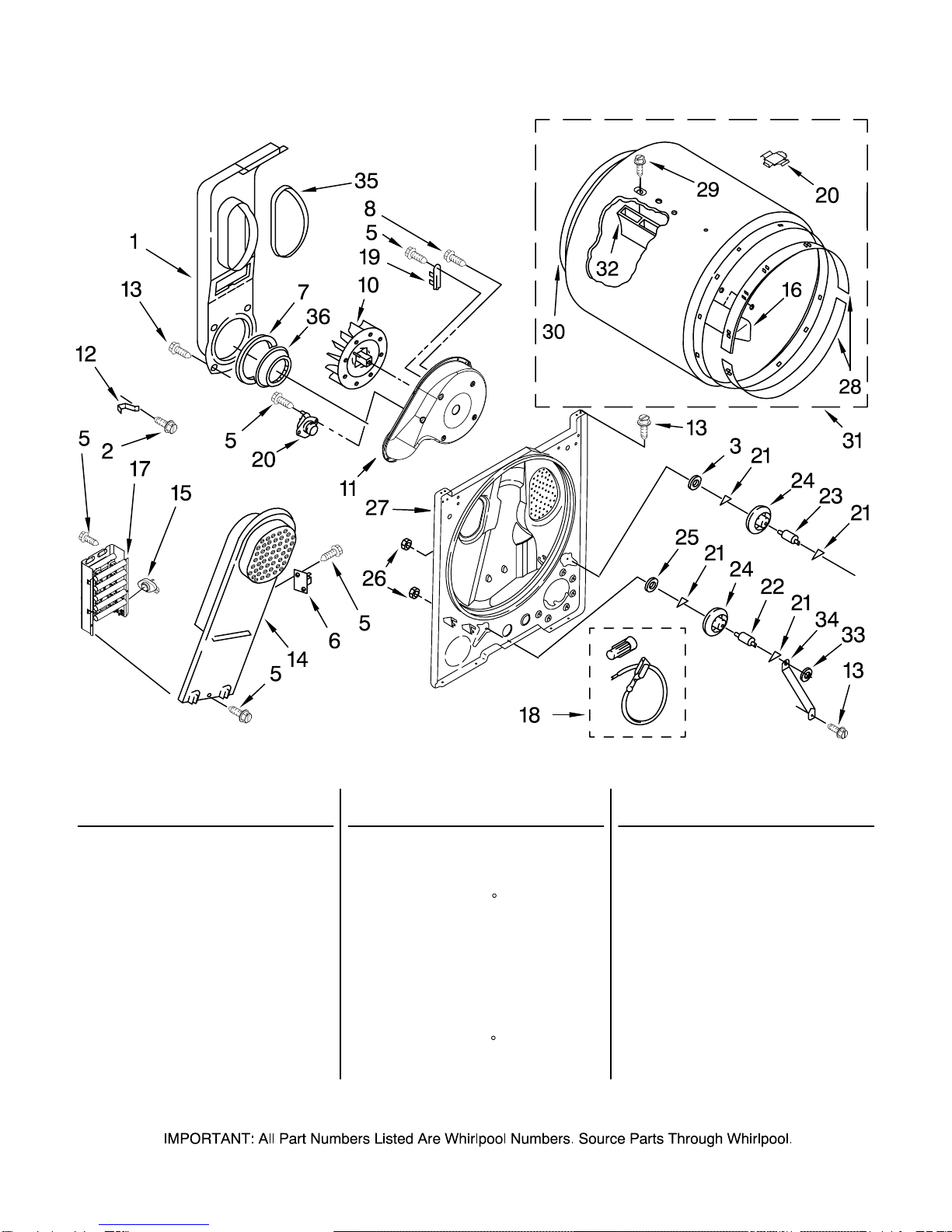

BULKHEAD PARTS

For Model: NED5200TQ0

(Designer White)

W10136729

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute Assembly

2 489463 Screw, 8−18 x 5/8

3 8066086 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Includes

Illus. 15)

7 347139 Seal, Lint

Chute

8 3390647 Screw, 8−18 x 1/2

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F (105C)

16 3403636 Baffle, Drum (1)

17 3403585 Element, Heater

18 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

19 3392519 Fuse, Thermal

20 3387134 Thermostat,

150 F (66C)

21 690997 Ring, Tri

22 3399506 Shaft, L.H.

23 3399507 Shaft, R.H.

24 3397590 Roller, Support

25 348197 Washer, Support

26 3359452 Nut, 3/8−16

27 3403491 Bulkhead

28 692526 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

30 3406130 Seal, Rear Drum

31 695587 Drum Assembly

32 692490 Baffle, Drum

33 3976434 Bracket, Support

34 90296 Clip

35 339956 Seal

36 696302 Shield, Exhaust

OPTIONAL PARTS (NOT INCLUDED)

For Model: NED5200TQ0

(Designer White)

W10136729

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

689790 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
