albatros 100 Silencio FS User manual
AXIAL FAN
User’s manual
EN
Albatros 100 Silencio FS
Albatros 100 Alba FS
AXIALVENTILATOR
Betriebsanleitung
DE
VENTILATEUR AXIAL
Manuel d’utilisateur
FR
2
EN
CONTENTS
Delivery set.............................................................................................................................................................................................................................................9
Brief description .................................................................................................................................................................................................................................. 9
Operation guidelines ......................................................................................................................................................................................................................9
Mounting and set-up....................................................................................................................................................................................................................... 10
Electronics operation algorithm .............................................................................................................................................................................................. 13
Troubleshooting..................................................................................................................................................................................................................................16
Storage and transportation regulations...............................................................................................................................................................................16
Manufacturer’s warranty................................................................................................................................................................................................................ 17
Maintenance ........................................................................................................................................................................................................................................19
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
3
EN
PLEASE READ THE USER’S MANUAL CAREFULLY PRIOR TO INSTALLING, CONNECTION TO POWER
MAINS AND OPERATING THE UNIT.
THE MANUFACTURING COMPANY SHALL NOT BE RESPONSIBLE FOR DAMAGE TO HEALTH AND
PROPERTY OF THE CUSTOMER CAUSED BY THE CUSTOMER’S VIOLATING THE USER’S MANUAL.
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE OPERATION OF THE UNIT, ITS
MECHANICAL AND ELECTRICAL RELIABILITY.
KEEP THIS USER’S MANUAL.
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
Albatros 100 Alba FS, Albatros 100 Silencio FS unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should
be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the
territory of the country.
4
EN
All user’s manual requirements as well as the provisions of all the
applicable local and national construction, electrical, and technical
norms and standards must be observed when installing and operating
the unit.
Disconnect the unit from the power supply prior to any connection,
servicing, maintenance, and repair operations.
Only qualied electricians with a work permit for electrical
units up to 1000 V are allowed for installation. The present user’s
manual should be carefully read before beginning works.
Check the unit for any visible damage of the impeller, the casing, and
the grille before starting installation. The casing internals must be free
of any foreign objects that can damage the impeller blades.
While mounting the unit, avoid compression of the casing! Deformation
of the casing may result in motor jam and excessive noise.
FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND
TROUBLE-FREE OPERATION OF THE UNIT
5
EN
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities,
sticky substances, or fibrous materials.
Do not use the unit in a hazardous or explosive environment containing
spirits, gasoline, insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the
efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the
document’s preparation.
The Company reserves the right to modify the technical characteristics,
design, or configuration of its products at any time in order to
incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
6
EN
This unit is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
unit.
The maximum altitude of use is 3500.
This appliance incorporates an earth connection for functional
purposes.
7
EN
Connectiontothemainsmustbemadethroughadisconnectingdevice,
which is integrated into the fixed wiring system in accordance with the
wiring rules for design of electrical units, and has a contact separation in
all poles that allows for full disconnection under overvoltage category
III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or similarly qualified persons in order to avoid a safety
hazard.
8
EN
CAUTION! The unit must be installed at a distance of at least 2.3 m from
the floor.
Ensure that the unit is switched off from the supply mains before
removing the guard.
WARNING: If there are any unusual oscillating movements, immediately
stop using the unit and contact the manufacturer, its service agent or
suitably qualified persons.
The replacement of parts of the safety suspension system device
shall be performed by the manufacturer, its service agent or suitably
qualified persons.
9
EN
BRIEF DESCRIPTION
The product is an axial fan for exhaust ventilation of small and medium-sized premises.
The fan is rated for continuous operation.
The fan design is regularly improved, so some models may slightly differ from those ones described herein.
OPERATION GUIDELINES
The fan is connected to 220...240 V/50 Hz or 12 V/50 Hz single-phase AC mains depending on the model and is designed for
continuous operation without disconnection from power mains.
Hazardous parts access and water ingress protection rating IP34.
The fan is rated for operation at ambient temperatures ranging from +1 °C to +40 °C.
The unit is rated as a Class II (220-240 V/50 Hz) electrical appliance.
DELIVERY SET
Fan – 1 pc.
Plastic screwdriver – 1 pc. (only for models with a timer)
User’s manual – 1 pc.
Packing box – 1 pc.
10
EN
MOUNTING AND SET-UP

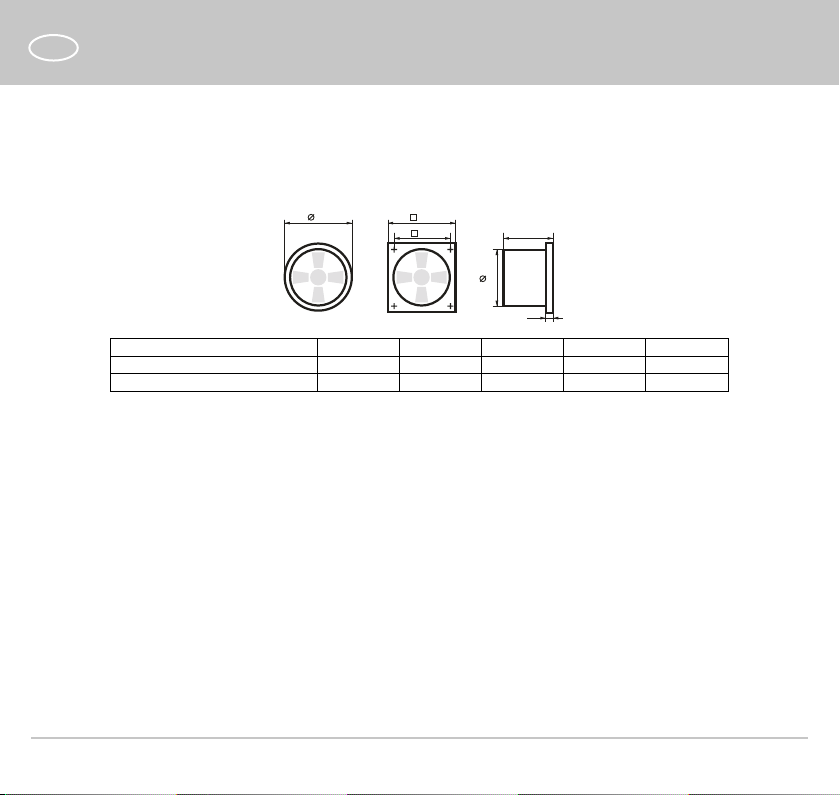

The designation of the fan, schematic representation of its appearance, overall and mounting dimensions, as well as design
features are given below.
A
B C
D
E
A
Model А B C D E
Albatros 100 Alba FS 152 120 126 100 30
Albatros 100 Silencio FS 150 120 108 100 12
The fan shown in the figures may slightly differ from your model, while the installation sequence is maintained.
The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter.
