ACU-RITE 02064CAUDI User manual

Instruction Manual

Professional Weather Center

model 02064CAUDI / 39030

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Features & Benets: 5-in-1....... 3

Features & Benets: Display.... 4

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Setup ........................ 8

Set the Time, Date & Units ...... 9

Backlight Settings................... 9

Placement Guidelines ............10

5-in-1 Sensor Installation........ 11

Using the Weather Center .....12

PC Connect...........................13

Weather Underground ..........13

Rainfall Tracking ...................14

Weather Ticker .....................15

Troubleshooting ....................16

Care & Maintenance.............19

Calibration ...........................19

Specications........................21

FCC Information .................. 22

Customer Support ................ 23

Warranty............................. 23

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with Tabletop Stand

2. 5-in-1 Sensor

3. Sensor Mounting Bracket

4. Mounting Hardware

5. Power Adapter

6. USB Cable

7. 4 Alkaline Batteries

8. Instruction Manual

Features & Benets

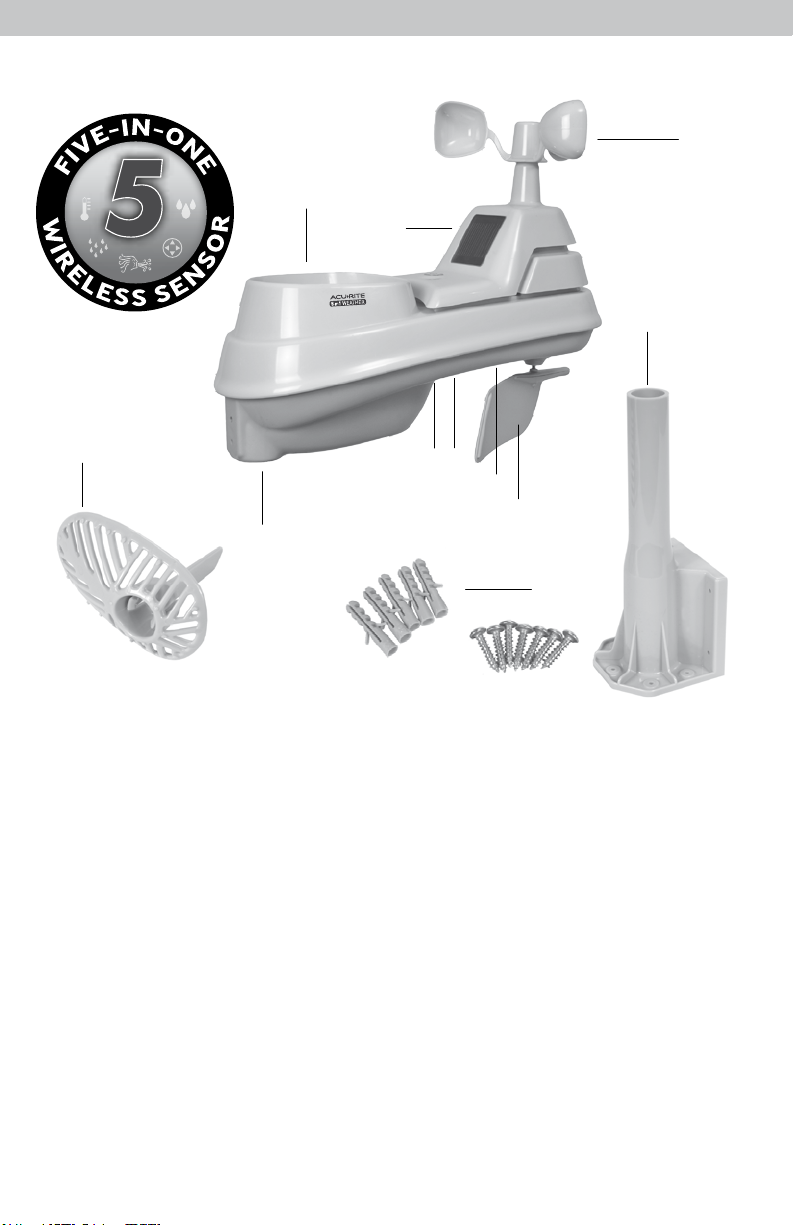

5-in-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Point

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Includes 5 anchors and the following

screws:

Qty Diameter Length

5 #4 19mm (3/4”)

1 #4 12.7mm (1/2”)

1 #6 12.7mm (1/2”)

11. Debris Filter

Pre-installed to prevent debris from

entering the rain gauge.

""'

23 s

AVG. P

Features & Benets

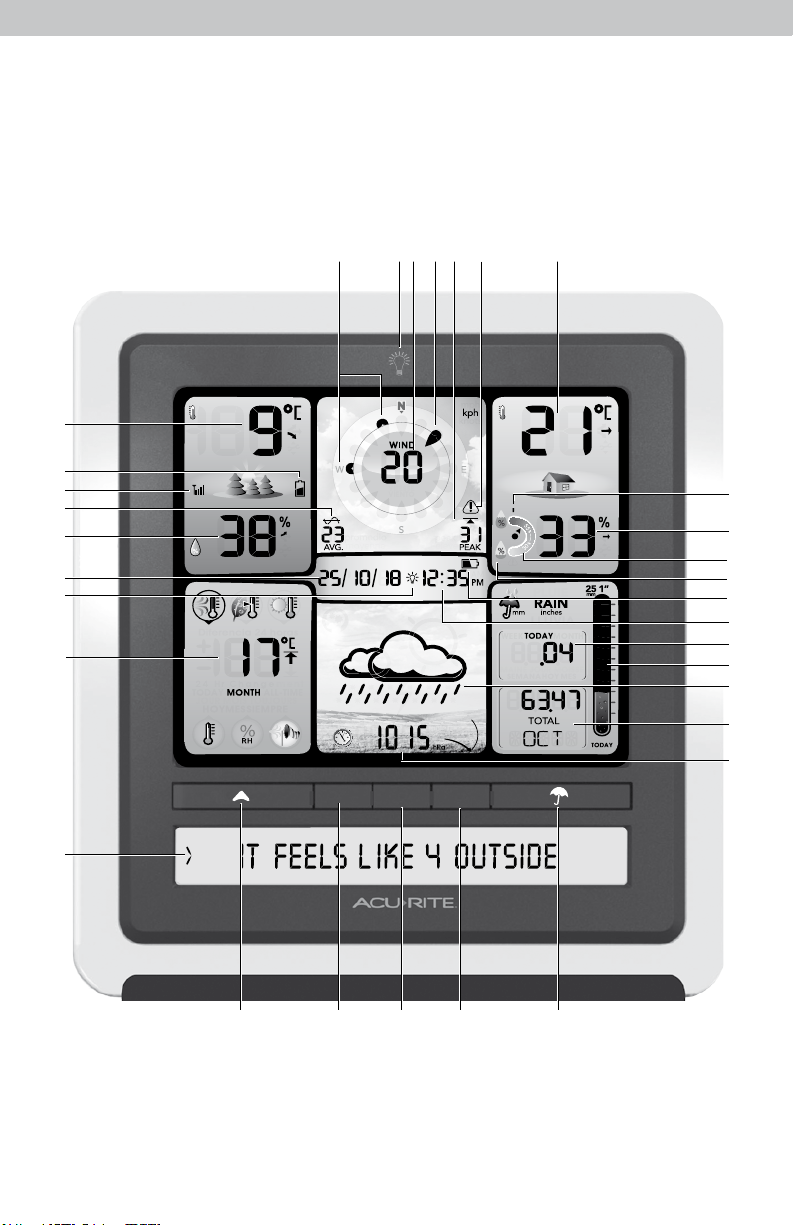

Display

1 2 3 4 5 6 7

23 22 21 20 19

1. Previous 2 Wind Directions

2. Backlight Button

For momentary backlight and

dimmer settings.

3. Current Wind Speed

4. Current Wind Direction

5. Peak Wind Speed

Highest speed from the last

60 minutes.

6. High Wind Speed Icon

Indicates peak wind speed is greater

than 81 KPH (50 MPH).

7. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

8. High Indoor Humidity Icon

Indicates indoor humidity level is

greater than 75% RH.

9. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

10. Humidity Level Indicator

Indicates a high, low, or ideal indoor

humidity comfort level.

11. Low Indoor Humidity Icon

Indicates indoor humidity level is

below 16% RH.

12. Display Low Battery Icon

13. Clock

14. Rainfall

Displays rainfall total for TODAY, this

WEEK, or this MONTH.

15. Today’s Rain Indicator

Illustrates rainfall collection up to

25 mm (1 inch).

16. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data

from your 5-in-1 sensor to generate

your personal forecast.

17. Rainfall History

Displays historical rainfall totals

(see page 14).

18. Barometric Pressure

Arrow icon indicates direction

pressure is trending.

19. “ “ Button

Changes the rainfall data being

displayed (#17).

20. “ ” Button

For setup preferences and manually

cycling through Weather Ticker

messages.

21. “ ” Button

For setup preferences.

22. “ ” Button

For setup preferences and manually

cycling through Weather Ticker

messages.

23. “ ” Button

Changes the WEATHER SELECT

category (#25) being displayed.

24. Weather TickerTM

Streams real-time data (see page 15).

25. WEATHER SELECT

Displays high/low records and

seasonal data (see page 12).

26. AUTO DIM Icon

Indicates display is in auto-dimming

brightness mode (see page 9).

27. Date

28. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

29. Average Wind Speed

Taken from all wind speed readings

over the past 2 minutes.

30. 5-in-1 Sensor Signal Strength

31. Sensor Low Battery Icon

32. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

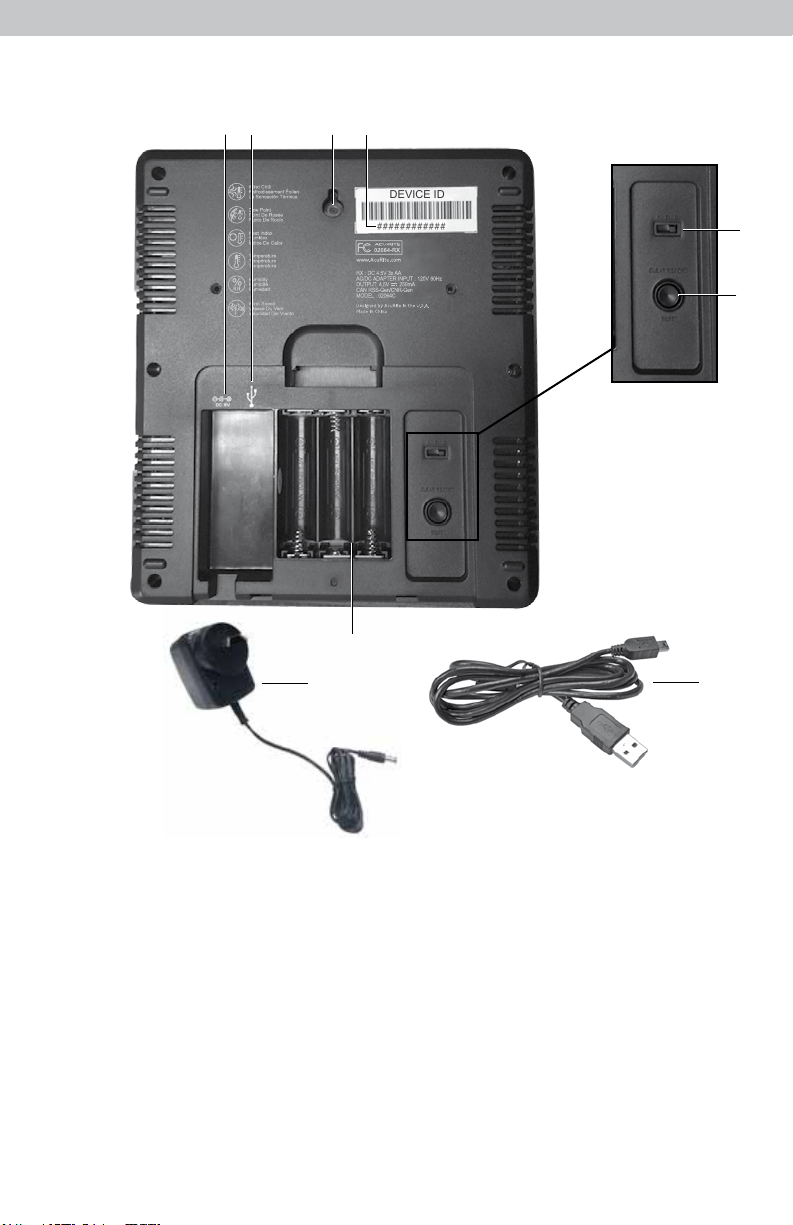

Back of Display

12 34

############

DEVICE ID

BACK OF DISPLAY

7. CLEAR RECORD / RESET Button

Press to clear data recorded

since 12:00 am. Press and HOLD

for full reset to factory defaults.

8. Power Adapter

9. USB Cable for PC Connection

10. Battery Compartment Cover

(not shown)

1. Plug-in for Power Adapter

2. Plug-in for USB Cable

3. Integrated Hang Hole

For easy wall mounting.

4. DEVICE ID

12 digit unique ID required for

online connectivity functions.

5. Backup Battery Compartment

6. A-B-C Switch

ID code that must match 5-in-1

sensor’s A-B-C switch to ensure

units synchronize.

•

• •

s~lf~~~s¢ t·f-HS1-l-ll..____

__ o_ _JI

ALKALINE

BATTERIES

•

SETUP

5-in-1 Sensor Setup

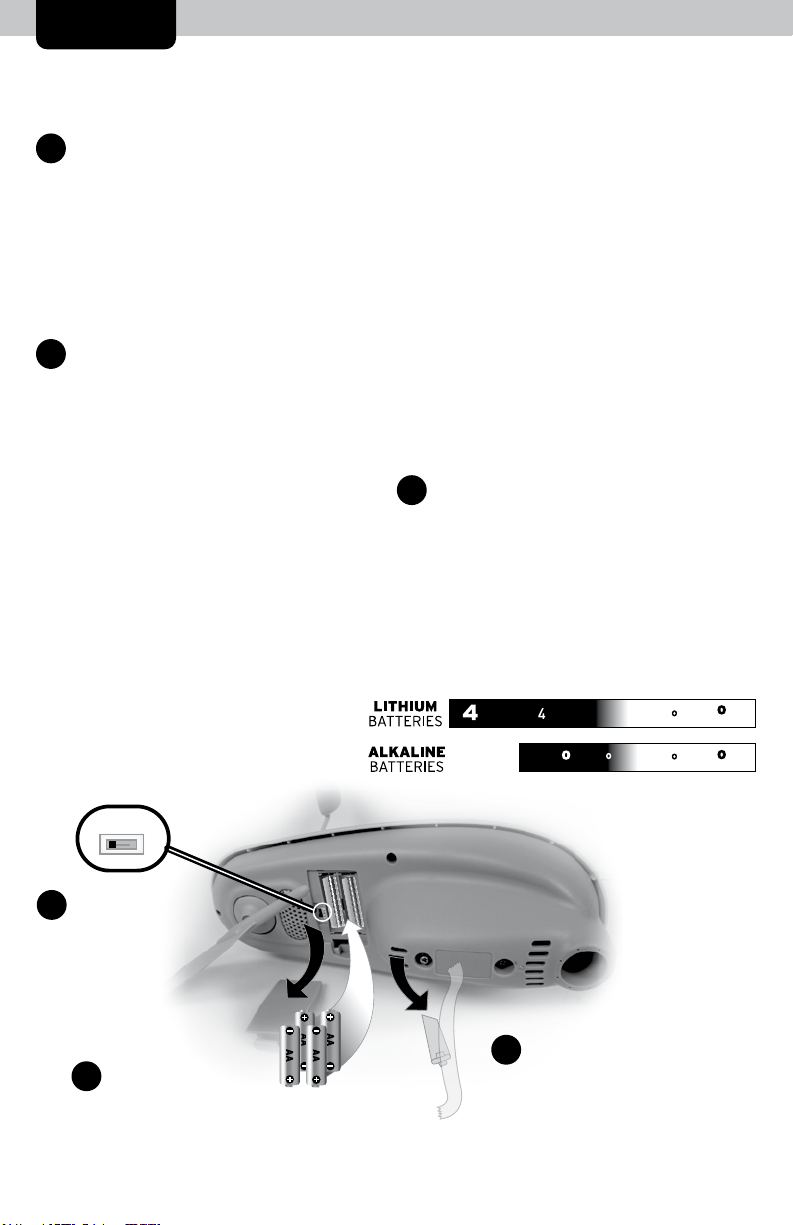

1 Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display in order for

the units to synchronize.

2 Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -20ºC/ -4ºF.

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

A B C

1 A-B-C Switch

Set to match

display

2 Install Batteries

4 AA Batteries

3 Rain Gauge Stabilizer

Remove and discard

C F

(-4 F) (158 F)

(158 F)

-20 C

70 C

• •

•

• • •

A B C

set to match

sensor

2 Plug in Power Adapter

Display Setup

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to

be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of

used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

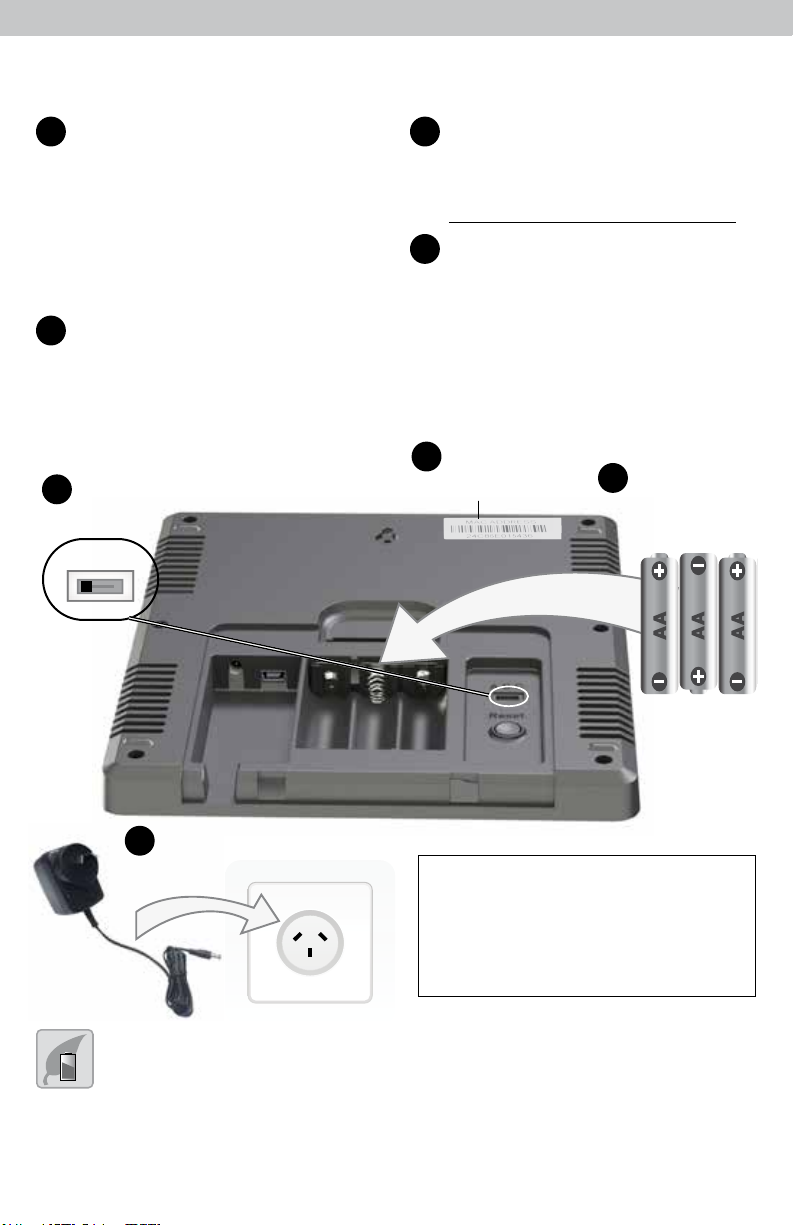

1 Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display in order for the units

to synchronize.

2 Plug Power Adapter into

Electric Outlet

1 A-B-C Switch

Write Down the DEVICE ID

12 digit unique ID needed for

online connectivity functions.

24 C8 6E

Install or Replace Backup

Batteries (optional)

Insert 3 x AA alkaline batteries into

the battery compartment, as shown.

Follow the polarity (+/-) diagram in

the battery compartment.

Write Down

DEVICE ID

12 digit number Install Backup

Batteries

3 AA Batteries

IMPORTANT: Batteries are a backup

power source to preserve records

in the event of a power outage.

Power adapter is the recommended

primary power source to enjoy the full

functionality of this product.

Set the Time, Date & Units

Press the “ ” button, located on the front of the display, to enter SET MODE.

Once in set mode, the preference you are currently setting will blink on the

display.

To adjust the currently selected (ashing) item, press and release the “ “ or

“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust the

next preference. The preference set order is as follows:

LANGUAGE (English, French, Spanish)

TIME ZONE (ACST, CST, AEST, EST, AWST, WST, CWST, CXT, LHST, NFT)

AUTO DST CHANGE (YES, NO)*

WEATHER TICKER SPEED (SLOW, MEDIUM, FAST)

CLOCK HOUR

CLOCK MINUTE

CALENDAR DATE

CALENDAR MONTH

CALENDAR YEAR

TEMPERATURE UNITS (oC or oF)

WIND SPEED UNITS (KPH, MPH, Knots)

RAINFALL UNITS (mm or inches)

PRESSURE UNITS (hPa or inHg)

*If you live in an area that observes Daylight Saving Time, DST should be set

to YES, even if it is not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 20 seconds.

Enter setup mode at any time by pressing the “ ” button.

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (15%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “ ” button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press “ ” button once to dim to 60% brightness; press

again to dim to 15%, press a 3rd time to enter “AUTO DIM” mode. “ ” icon

appears to the left of the time to indicate that auto-dim mode is ON.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day.

6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 15% brightness

> ITFEELSLIKE~CllTSID:

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display and the sensor are critical to the accuracy and

performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. To ensure

accurate temperature measurement, place out of direct sunlight

and away from heat sources or vents. Display stands upright for

tabletop use or is wall-mountable.

5-in-1 Sensor Placement

The 5-in-1 sensor is designed to remain outdoors all year long.

Choose an open location with no obstructions above or around

the sensor for the most accurate measurements.

Important Placement Guidelines

Display and sensor must be within 100 meters (330 feet) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other

objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place units at least .9 m (3 feet) away from electronic devices (TV, computer,

microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents,

asphalt and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water

sources may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This

may force water inside the sensor.

LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.

Consider a location that is a wide open area, with few

structures around to ensure accurate wind measurement.

Visit us online to view installation photos and

video, or learn more about AcuRite technology:

www.AcuRite.com/5in1 View Video

This manual suits for next models

Table of contents

Other ACU-RITE Weather Station manuals

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
