A&L Furniture Poly Deep Seating Mission Swing User manual
Assembly Instructions
Poly Deep Seating Mission Swing
Thank you for choosing Furniture Co.
We hope that this piece brings you many years of enjoyment!
For help with assembling your furniture,
or if you have missing hardware, please email us at
help@aandlfurniture.com or call us at 866-896-5747
(Depends on length of swing)
STEP 1
Attach the headboards to the back assembly on each side using the 2¾” bolts. (See photos 1 & 2.) Use the
included Allen wrench to tighten. Note: Do not fully tighten any bolts until all are started.
PARTS (included)
¼” x 2¾” Bolt (12)
2” Screws (38)
Eyebolt (4)
Allen Wrench (1)
Square Drive Bit (1)
Rope (4)
b
c
a
photo 2
photo 4
photo 1
Headboard Assembly (2)
Back Assembly (1)
Side Rail (1)
Mattress Board (5 or 8)
Cushion Support Strip (1)
e
d
f
STEP 2
Attach the side rail to the headboards at the front using 2¾” bolts. (See photos 3 & 4.) Note: Do not fully
tighten any bolts until all are started.
B
HARDWARE (included)
photo 3
B
C
A
A
a
STEP 3
Attach the mattress boards to the inside bottom of the frame using the 2” screws. (See photos 5 & 6.) You
will need to use the included square drive bit with your screwgun. Space the boards as evenly as possible.
photo 5 photo 6
a
a
a
A
A A
b
b
b
b
b
b
b
b
E
Only included if you ordered full seat &
back cushions with your swing TOOLS NEEDED
Screw Gun
a
a
DDDD
B
D
STEP 5
Thread the end of one of the ropes through each eyebolt from the top. (See photo 9.) Make a knot in the
end of the rope below the eyebolt. (See photos 10, 11 & 12.) Pull the knot up against the eyebolt. (See
photo 13.)
STEP 4
Screw the eyebolts into the headboards towards the top. (See photos 7 & 8.) You will need to do this at the
front and back of the bed. Screw them in as tight as you can.
photo 7 photo 8
photo 9 photo 10
c
photo 11
photo 12
A
photo 13
A

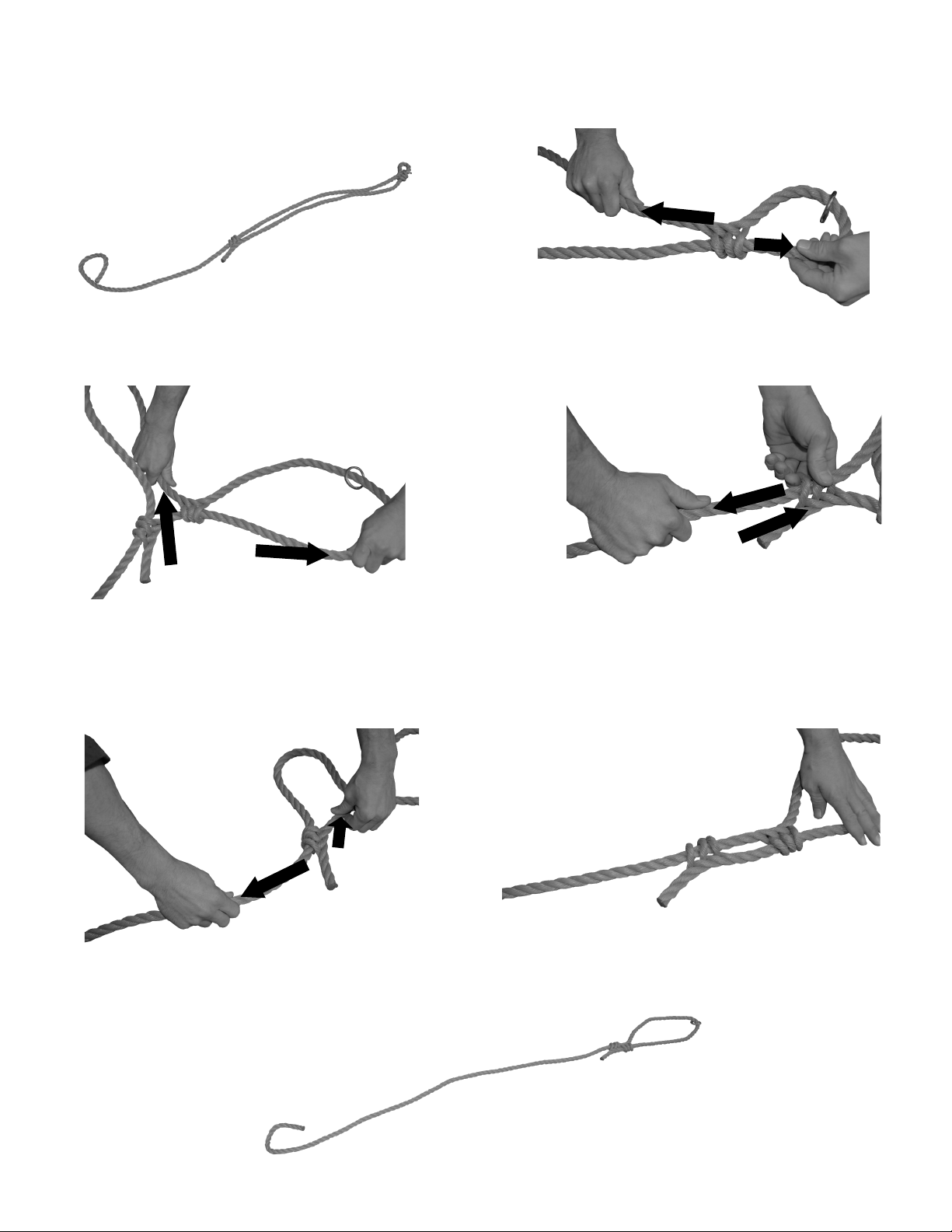

The rope can also be adjusted to make the swing hang a little higher or lower. (See series of photos below.)
Note: You will receive the ropes adjusted short in length. The photos show the ropes being adjusted long in
length.
Short Length
Rope Adjustment Adjusting longer
Closeup of knots
Long Length
Rope Adjustment
STEP 6
The cushion support strip will be included with your swing only if you have full cushions on the same order
with your swing. If you have the support strip, you will need to fasten it to the inside of the back assembly.
(See photo 14.) There will be predrilled holes in some of the slats on the back of the swing and also in the
headboard. (See photos 15 & 16.) You can insert the 2” screws through the slats and screw them into the
support strip. You will need someone to hold it in place while you do this.
photo 14 photo 15
c
photo 16
A
B
A
C
D
D D
D D
E
b b
b
b
A B
c
Note: The strip is to push the bottoms of the upright cushions forward so they lean back a little.
